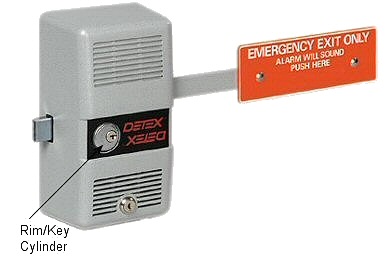

DETEX ECL 230 Emergency Exit Push Bar (USA)



The Detex ECL-230 series has been the industry standard alarmed exit control lock for more than 30 years. Easy to install, rugged, and economical; the ECL-230 series has been continuously updated to provide even more options, quality, and value, all in a time tested design.

Benefits:

• Attack resistant design withstands over 2200 lbs. of outside pull force
• Proven durability and reliability at a reasonable price
• Reduces employee and customer theft
• Easy to install
• Time-tested construction resists attack from the inside
• Easy to see if the lights go out
• Straightforward operation that everyone understands

Features:

• Single point, 1" throw dead bolt
• Saw-resistant deadbolt
• Corrosion resistant allow lock body
• 100 decibel alarm, powered by 9-volt battery (included)

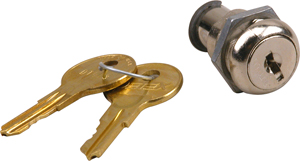

• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
• Durable steel plate with photo luminescent sign absorbs light to then "glow in the dark" when lights are dimmed
• Non-handed
• Locking and unlocking the dead bolt always arms and disarms the alarm
• Resetting the alarm can only be accomplished with a control key

Technical Information:

• Door Types - Wood, Hollow Metal or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4"
• Minimum standard door width for ECL-230D is 20"
• Minimum standard door width for ECL-230D-PH is 34"
• Double Door requirements: 1 ECL-230, 1 ECL-445K, 1 ECL-435K and 1 DDH-2250 (or 1 VRA-143 in place of 1 ECL-435K and 1 DDH-2250) or 2 ECL-230, 1 ECL-445K and 1-90KR
• Door Stile - Fits minimum 5-3/4" with ECL-437K Strike (Std.)
• Door Stile - Fits maximum 1-7/8" with ECL-475 Kit
• Machine and Sheet Metal Screws (Std.)

Download catalogue click here: ECL-230
