SECURITEX HANDICAP SYSTEM DESIGN AND FABRICATION DIVISION

3G-RF handicap toilet system c/w monitoring panel at manned office.



http://www.securitex.com.sg/SECURITEX_3G_DURESS_SYSTEM_.jpg

SECURITEX Handicap Toilet System Model: SHCU-5UK-HCT



Securitex Handicap Toilet Emergency System

Securitex Handicap Panic Alarm System

Securitex Distress Activation System

Securitex Medical Alert System

Securitex 3G-RF System

Securitex 4G-RF System (Note for Singapore use)

Securitex 5G-RF System (Note for Singapore use)



DESCRIPTION:

The SECURITEX Handicap Toilet System Model: SHCU-5UK-HCT uses the extremely high quality IP55 waterproof emergency call station / button which is installed in the handicap toilet and this button signal is integrated to the Securitex handicap Toilet Controller which control all the input signal and output to a High Intensity Electronic LED Blinker and Piezo Siren unit.



This Systems can be link to the Community care system or localize emergency siren system which provides call annunciation from a bathroom associated with a patient station (IP55-BSA1) or standalone localized system. It also provides call annunciation from a common area restroom or staff call location when used with the all master control unit 2GTS common area call station.

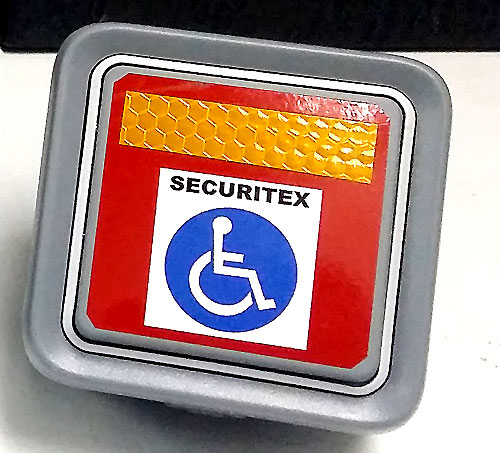

IP55-BSA1 Handicap Toilet IP button.

The IP55-BSA1 is use as standalone button inside the handicap toilet to integrate with Securitex Model SHCU-5UK-HCT handicap toilet system which act as an emergency push button (or Optional-pull cord can be incorporated). To activate the controller and sound off the local siren or if cascade to the Building Automation System (BAS) can allow this distress signal to be pick up at the FCC (Fire Command Centre), guard station or nurse station. In unman building or remote site, 3G can be incorporated into the system to send out distress SMS. The IP55-BSA1 is constructed with rugged ABS material which also come with all water ingress protection membrane gasket and big detachable replacement push button plate for handicap person to push, it come also with reflective sticker and handicap logo and is waterproof for use in bathrooms and even outdoor area. Switch can be pressed down to call and flip up to reset the system.

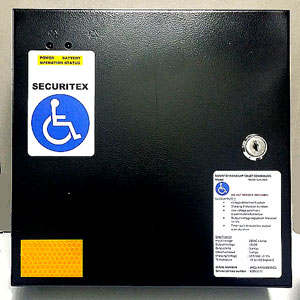

Model: SHCU-5UK-HCT SECURITEX Handicap Toilet Controller.

The SHCU-5UK-HCT is designed and built to received emergency signal from the IP55-BSA1 and channel this signal to a high power voltage output to activate the  High Intensity Electronic LED Blinker and Piezo Siren unit or duress activation module to be connected to the Building Automation System and link back to the Fire Command Centre in the building. This SHCU-5UK-HCT can also be integrated to the nurse station or community care centre to monitor this duress signal.



SHCU-5UK-HCT SECURITEX Handicap Toilet Controller (Wireless optional)

The SHCU-5UK-HCT-433Mhz can also be incorporated with a wireless receiver and transmitter so that disable person will not need to use the push button or pull cord to activate the system in an emergency.



SHCU-5UK-HCT SECURITEX Handicap Toilet Controller (3G optional)

The SHCU-5UK-HCT-3G can also be incorporated with a 3G-SMS system so that when the system is activated it will sent out distress signal to the care giver or central monitoring station.



AIPHONE PULL CORD DEVICE USE FOR INTEGRATE TO SECURITEX HANDICAP TOILET SYSTEM.



          TYPE 1                                          TYPE 2                                          TYPE 3



P/NO: AP-NC-01        P/NO: AP-WC-02                P/NO: AP-SUS-01

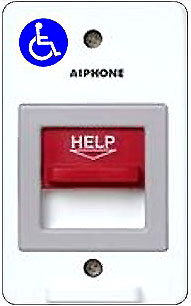

TYPE 1 NO PULL CORD

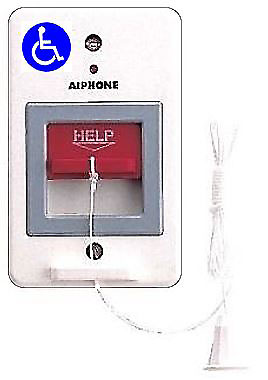

TYPE 2 c/w PULL CORD

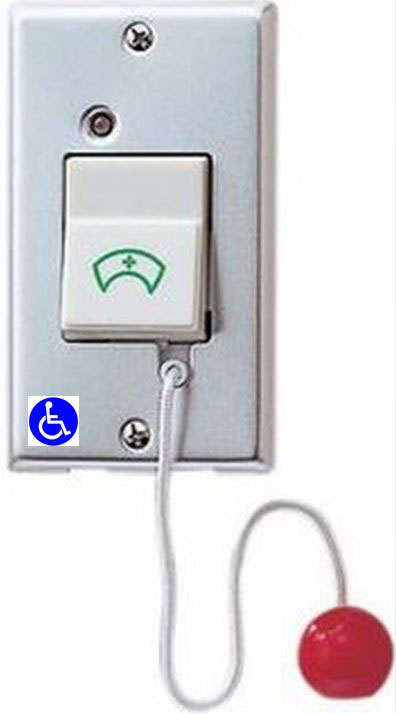

TYPE 3 c/w STAINLESS STEEL PLATE



AIPHONE Pull Cord NHR-7A

• Vertical slide switch

• Nylon cord with pendant

• LED “call placed” indicator



Specification

Power source        : From call station or not requires if use as standalone pull cord switch.

Capacity                 : As many as required per call station

Mounting                               : 1-gang box, UL listed

Wiring                     : 3 conductors to associated call station or 2 conductor for local system use Aiphone #862208 for colour- code matching,

                                  or Aiphone #822203.

Material                  : High impact ABS fire-retardant plastic

Pull cord                 : Nylon cord

Colour                    : White, with red call switch

Dimensions           : (H x W x D): 4-1/2” x 2-13/16” x 1-3/4”

Certification          : UL 1069 Listed, C-UL Canadian Standard C22.2

Changes                 : Product specification and designed is subject to change without notice



ARCHITECTS/ENGINEERS SPECIFICATIONS:

Bathroom/urgent call station shall be Securitex IP55-BSA1 Handicap Toilet IP button, equipped with push down to activate alarm or push up to reset. It can also be integrated with the Aiphone NHR-7A button with vertical slide call switch, nylon cord with pendant and LED “call placed” indicator. Call station shall be waterproof, constructed with 1-piece rugged fire-retardant ABS plastic. Nylon cord shall be durable and able to activate a call-in signal by pulling the cord in any direction n or push button. The IP55-BSA1 or NHR-7A shall be used to place an urgent call associated to the SHCU-5UK-HCT patient station / Controller or the SHCU-5UK-HCT-Master common area call station. Call shall be reset only at the calling station by moving the call switch to the upward position or Flip up the IP55-BSA1. Wiring shall be Cat6E or 22AWG 4 Core, run from associated patient station or common area call station to the Duress Button / Pull cord. Cable size greater than 22AWG shall not be requires. Unit can be flush mount or surface mount.

Note        : Product specification and designed is subject to change without notice

Document Number : SHCU-5UK-HCT_2017

Download system brochure

Securitex Wireless & 3G-RF handicap Alarm Controller

What is a Securitex 3G-RF handicap Alarm?

What is a Securitex 3G-RF Handicap Alarm System (This system is use to integrate 3rd party handicap toilet system over 3G net work for remote monitoring when activation occurs).

Why is Securitex 3G-RF Handicap Alarm System needed?

These system are designed and installed to allow handicap toilet activation signal to be monitored in another remote manned command centre.

Where will this system usually installed and deployed?

These system are commonly installed in area where there is issue and logistical constrain to lay infrastructure cable to the manned command centre.

Can this system be install at home or elder care centers?

In homes and elder care centers Handicap Alarms are use to protect elderly or medically unfit persons at risk of falls or medical problems this elderly can then use the Securitex 3G-RF System for integrating to the existing elder care system to the caregiver mobile system.

Can 3rd party handicap toilet alarm system or elderly care system be integrated to the Securitex 3G-RF system?

Yes 100% can be done.

Can the system use the user mobile phones to operate or activate the system?

Yes we do customization of the system to accept command from user mobile phone and smart devices.

Can user use apps to control the system?

Yes we do customization to allow the system to accept operation from a specially designed apps.

Can user operate this system from a vehicle or worksite where there is no power source?

Yes the system has can operate from its built in battery or from the vehicle battery.

Can user use this system in area where the handicap toilet system location has no power?

Yes the system can do this as our customized  system have built in feature to integrated to 3rd party equipment and can runs off portable power supply.

Is Securitex 3G-RF system Systems Designed and Manufactured in-house?

Securitex Wireless Technologies Division, designed and built all type of system locally in Singapore using imported parts and wireless modules from USA. United Kingdom. GERMANY and many parts of the world (For use in Singapore we get IMDA approval before we use them for our customer). We also do engage 3rd party to designed and built such system for us. From a Simple Pull Cord system to an emergency push button, to RF wireless system to even 3G / 4G network SMS system etc. As this systems are designed and built in house, we are able to meet client all kind of request and needs. When system is use in Singapore customer will be able to have first hand view of the system before they procure as we can design and built the system for Proof Of Concept (POC) before full scale implementation.

What is the advantage of the 3G and 4G Handicap Alarm system compare to a standalone system?

Our latest 3G / 4G system delivers extra feature (Optional) that can allows the monitoring officer to pin point the location of the distress person, we can sent the distress signal over a very large area and even cross boarder and country. We are able to integrate the system to specially designed Duress Call Display Panel etc. With the 3G / 4G system we are able to sent the distress signal via specially preconfigured SMS (Short Message Sent) to numerous monitoring station and officers. The 3G / 4G system can also activate emergency rescue equipment to contained the situation before help arrived.

Do Securitex built Explosion Proof / ATEX or intrinsically safe Duress Systems?

Yes we do such system with our overseas partners specializing in Explosion Proof equipments.

Can Securitex Design and built multi-location or multi room panic button system c/w wired / wireless and 3G / 4G capability?

Yes we can design and built such system for institution that need such feature. Usually we will built industrial grade Indication and audible alarm system into a control panel. This Panel will have Wired / Wireless and 3G / 4G feature built in. Systems will be supplied with Wired Panic Button. Wireless wall mount Panic / Duress Button. Portable wrist or pendant type wireless panic button transmitter. For 3G / 4G version control panel we will also provide apps to activate the control panel from the user mobile phone.

3G Network Control Interface Integration

With the 3G network Interface to the SLE-DS-A1019UK we are able to further improve the system that it can be integrated to the mobile phone to receive message status of the activation and also to operate the Duress system using the mobile phone and special pre-designed apps on IOS and Android. The 3G Network Control Interface is IMDA type approved, this system can be use in Singapore anytime and anywhere.

Wide coverage of 3G networks and the provision of GPRS connectivity have made it possible to interconnect systems wirelessly. SECURITEX SRTU5025W-IG exploits the benefits of this wireless technology and gives you control of your remote units from any part of this World. All-in-all SECURITEX SRTU5025W-IG is an advanced, effective and economical solution for fulfilling the needs of remote monitoring and control applications.



Features:

Specifications

3G Band 900/2100MHz default

850/1900MHz *

850/2100MHz *

STRU5025W-IG 3G

3G-WCDMA-900/2100Mhz UMTS

Digital Input: 2 NC/NO dry contact

Digital Output: 1 Relay, 3A/240VAC, 5A/24V DC

Siren Output: 12VDC/1A

DC Power supply: 9~24VDC/2A

Power consumption:  12V input Max. 50mA/Average 25mA

SIM Card:  Support 3V SIM Card

Antenna:  50 Ω SMA Antenna interface

Temperature range:  -20~+60 °C

Humidity range:  Relative humidity 90%

Backup battery (Built-in):  3.7V/900mAH

Authorized user:  Up to 999 authorized phone numbers can be configured at the specified time for access control and some customization usage.

No Call Charge:  No call charges. Reject calls from authorized number then carries out the turn ON/OFF action on the first 'ring‘.

Secured: Using Caller-ID for verification, unknown phone calls are ignored.

SMS confirmation: SMS confirmation of relay actions (door open) to the owner or authorized caller number.

Logging: Up to 1000 events log, download the operation historical data by USB or over GPRS









SHCU-5UK-HCT SECURITEX Handicap Toilet Controller

Specification

SECURITEX HANDICAP TOILET CONTROLLER.



P/NO: SHCU-5UK-HCT-CP88



Model                     : SHCU-5UK-HCT

  DO NOT REMOVE THIS LABEL

Function built-in

·          Voltage detection function

·          Charging Protection Function

·          Low voltage automatic disconnection Protection.

·          Output Voltage regulation Rheostat +/- 5%

·          Timer built-in to control output siren duration.



Specification

Input Voltage : 230AC 13amp

Output Voltage : 12VDC

Output Amp : 5 amps

Maximum Load : 5 amps

Protection Fuse Rated : 5 amps

Charging Voltage : 13.5 VDC +/- 5%

Temperature : -20 to +50 degree C

Enclosure : Steel

Enclosure ventilation : Heat Vent provided on left and right of enclosure

Enclosure mount : 2 X top hanging Key Slot shape hole and 2 X bottom hole 5mm for extra secure to wall.

Cable Inlet and Outlet : 2 X 22mm knock out plate provide on the left and right of Enclosure

Dimension : 220mmX220mmX83mm

Secure : Cam Lock and Key

Finish : Cover-Powder coated with Black Spray Paint

               Body- Powder coated grey

SERIAL NUMBER : SHCU-A8956183-XXXXXX-C1

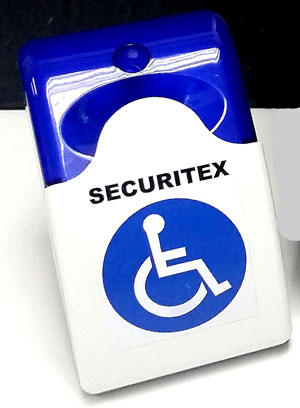

SIREN & INDICATOR

 P/NO: HCT-SL-BS-01

Securitex HSL-109T-B Mini-strobe & Siren

Specification

Operating Voltage : 12VDC

Siren Intensity : 105 DB

Indicator : LED Flashing

Indicator Colour : BLUE LENS

Body : White ABS plastic

Dimension : 125mm X 73mm X 47mm

Connection : RED Positive + BLACK Negative –

Siren Tamper : YES

Handicap Decal : YES BLUE LOGO



Optional: HANDICAP TOILET 3G SMS CONTROL SYSTEM ADD ON

http://www.securitex.com.sg/SECURITEX_3G_DURESS_SYSTEM_.jpg

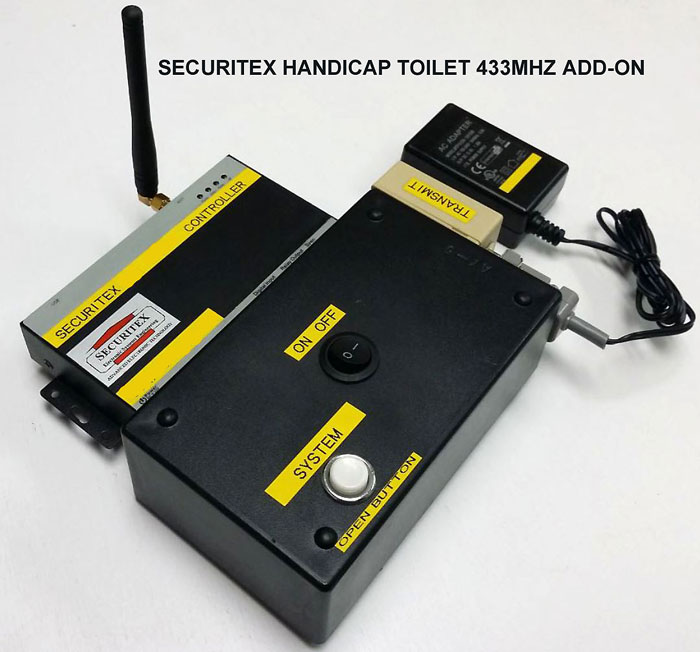

Optional: HANDICAP TOILET 433mhz CONTROL SYSTEM ADD ON

SECURITEX HANDICAP TOILET SYSTEM ARE DESIGNED. FABRICATED AND ASSEMBLED BY SECURITEX ELECTRONIC SYSTEMS ENGINEERING AS SUCH WE ARE ABLE TO CUSTOM DESIGNED AND CONFIGURED OUR EXISTING SYSTEM TO MOST OF OUR CUSTOMER REQUEST. WE ARE ALSO ABLE TO DESIGNED AND BUILT A NEW SYSTEM FROM SCRATCH.

DO NOT HESITATE TO LET US KNOW IF YOU HAVE SPECIAL REQUEST AND NEEDS.

SECURITEX ALSO DESIGNED AND BUILT PROTOTYPE SYSTEM FOR CLIENT TO TEST OUT THE SYSTEM BEFORE ACTUAL LARGE SCALE IMPLEMENTATION.

CONTROLS AND INDICATORS:

Part Number: LG 69709/69711 1G 2W-SW_LOGO_RYB

IP55-BSA1

White RAL 9010

Polypropylene/ABS housing

Temperature rating: - 20 to + 40 °C (+ 50 °C for short periods)

Supplied without back boxes, can mount directly on to standard metal flush boxes

Stainless steel captive terminal screws supplied in backed-off position

Supplied with flush-mounting gasket

Supplied without lamps



Grey RAL 7016/TO 29

Supplied with ISO 20 membrane glands and caps (for rear cabling)

Stainless steel captive terminal screws supplied in backed-off position



Conform to BS EN 60669-1

Flush-mounting gasket is not required when fitting these mechanisms on to back boxes

Cat. Nos 6 845 89/90/91

1 6 845 53 1 gang

2 way switch - SP



Can be Surface Mount or Flush - mounting boxes, support frames and accessories IP 55

Surface-mounting boxes with membrane glands (1 gang)

Equipped with removable membrane glands

Direct entry of cables (no need to be cut) –

Use Part Number : 0 696 51



Surface-mounting boxes for cable glands (1 gang - 1 entry)

Use part number   : 0 696 56



Flush-mounting support frames (1 gang)

Used for flush-mounting version for German and French standard boxes only

Can be equipped with claws Cat. Nos 0 849 00/01-

Use Part Number : 0 696 81



Certification          : CE



Reflective Sticker and handicap Logo

Yellow Reflective Sticker and Blue Handicap Logo will be pasted on the Button Plate 069541 Changeover (N/O + N/C contact)
