SECURITEX-VIKING RED PHONE (HOTLINE PHONE) Industrial Application







K-1900W-2                         K-1500P-D

MADE IN USA

 IDA License No. DB104854

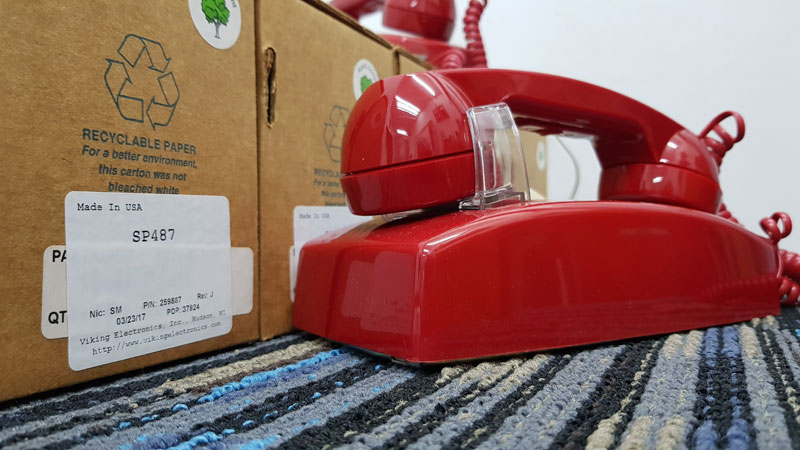

SECURITEX-VIKING-RED-PHONE (HOTLINE PHONE) Industrial Application



The Securitex-Viking-RED PHONE is made in USA by Viking. This phone is design for use in emergency situation where the user need to call for help or usually they need to receive emergency incoming call from 3rd party facilities. Usually this phone are install in fire command centre or oil and gas industries control room where the operation staff when in emergency need to contact another party for assistant, the caller just need to lift up the handset and the RED PHONE will dial the pre-programmed phone of the other party (Receiver). This RED phone can be supply without the incoming ringer so this phone will only be use as outgoing call. However if incoming signal is needed, a ringer can be installed. These RED PHONE or HOTLINE PHONE or EMERGENCY PHONE are design for indoor application and is powered from the PSTN line, if the phone is needed to be install outdoor, then an external IP65 enclosure can be incorporated.

Customization (Optional)

Securitex Electronic Systems Engineering is able to do customization of the hotline phone in situation where there are many Hotline phone in a control room and the user or operator need to know which Hotline phone is ringing.

Data logging of the phone use.

We can even designed the system in the control room to know which Hotline phone is ringing and exactly what time and when the Hotline phone is pick up and when the Hotline phone is hang up.

Hotline phone conversation recording.

Securitex Hotline phone can also be integrated with 3rd party line conversation recording service.

Who need customization Hotline phone.

Customization hotline phone are usually needed when there are more then 1 hotline phone in a single location. This premises are Command center. Oil and Gas Control room. Power and Nuclear Power plants. Desalination Plant. Data Centers. Hospital and even military installation.

Contact us.

Feel free to contact us if you need customization service.

Outdoor Emergency Telephone Enclosure





Economical and Vandal Resistant Hot-Line Phones

The K-1900 Series of Hot-Line phones (RED PHONE) are programmable to dial a 1-32 digit telephone number each time the phones handset is lifted. The products may be programmed to Touch Tone or pulse dial and will not dial on incoming calls. (if you need the phone to ring on incoming please specify when ordering)

The K-1900 Series phones are available in a desk or wall chassis, as well as in a vandal resistant panel phone configuration. A network insert dialer is also available, to convert standard phones into hot-line phones.



Applications
  • Catalog sales
  • Information kiosks in malls
  • Courtesy and customer service phones
  • Automated tellers
  • Hot-line reservation phones
  • Replace leased Ring down circuits
  • Security and emergency phones (pools, etc.)
  • Oil & gas terminal control room to control room emergency call.
  • Shipyard control room
  • Fire command centre
  • Correctional Facilities like prison, police station and lock-up
  • Oil Rigs to land control room
Features
  • Telephone line powered (no external power supply needed)
  • Hearing aid compatible amplified handsets
  • Rotary handset volume control
  • 1 - 32 digit programmable speed dial number
  • Touch Tone and 10/20 pps pulse dialing
  • Non-volatile E2 memory (no batteries required)
  • Restricts fraudulent calls from hand held dialer
  • K-1900D/W-2 available in red or ash
  • Optional Q170600 ringer (Fax Back Doc 845)
  • Operates on a C.O. line or analogue PABX / KSU extensions
  • Ring detection (will not dial on incoming calls)
  • Programmable security code to enter programming mode
  • Touch Tone programmable K-1900-6 fits standard 500, 554, 2500 and 2554 set phones
Specifications
  • Power: Telephone line powered (20V DC/18mA minimum)
  • Environmental: 0C to 32C (32F to 90F) with 5% to 95% non-condensing humidity
  • Shipping Weight: 1.36 Kg (3 lbs)
  • Dimensions: 102mm x 178mm x 229mm (4.0 x 7.0 x 9.0)
  • Dialing Speed: Normal - 120ms tones/10 pps, Fast - 50ms tones/20 pps
  • Connections: RJ11
  • Colors: Red or Ash

Download Catalogue: COLOUR Click here      WHITE Click here





For more information on this product, feel free to contact us at sales@securitex.com.sg or 67852171
