Fiber Optic Video/Data Transmitters and
Receivers
4-Channel Video, Two-Way
Multiprotocol Data, and 4-Channel Contact Closure S734DV and
S7734DV.
Overview- The S734DV and the S7734DV video
multiplexers transmit four channels of video combined with
two-way multiprotocol data and four contact closure channels
over one single mode or multimode fiber. The S734DV and the
S7734DV links convert four channels of base band composite video
to digital format for transmission. Digital transmission of the
video assures clean, noise-free video at the receiver.
Multiple Data Formats- Two-way data permits
remote control of a PTZ and response from the receiver/driver to
the control center. The unique multiprotocol data design accepts
all major formats. Four relay/contact closure channels in the
forward direction permit transmission of switch closures.
Data Translation- The data functions
include the unique data translation feature, which allows one
data format to be input and a different data format to be
output. Data formats are selected during installation and can be
easily changed in the field via rotary switch.
Superior Diagnostics- The SMARTS™
diagnostic technology provides built-in diagnostic tools
including LEDs that monitor the operating status of the video
and optical signals.
Standard Features
• Four video channels, two-way data and
four one-way contact closure channels transmitted over one
single mode or multimode fiber • 8-10-bit video processing
depending on channels used • 500 TV lines video resolution •
Unique data translation function • Relay/contact closure - 4
forward channels • Supports multiprotocol data formats including
RS-232, TTL, RS-422, RS-485, Manchester, Biphase, and SensorNet
• SMARTS™ diagnostics including extensive LEDs and on-screen
monitor displays |
Datasheet
Installation manual
ITEM IS IN
STOCK
|
|

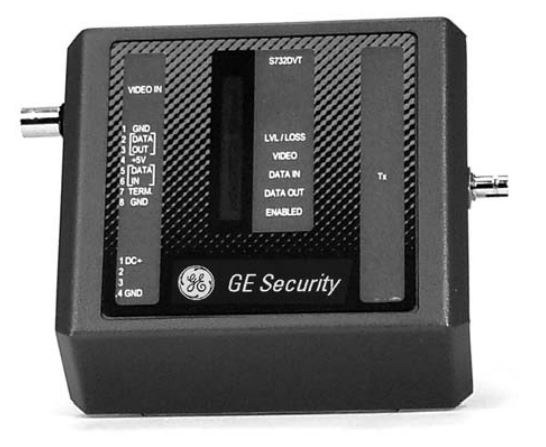

S732DVT-EST1
S732DVR-EST1 |
.JPG)
THE DVT-EST1 &
DVR-EST1 IMAGE IS THE SAME EXCEPT DVT-EST1 =TRANSMITTER &
DVR-EST1=RECEIVER
DETAIL OF THE
PRODUCT SEE ATTACH DATASHEET |
Fiber Optic Video/Data
Transmitters and Receivers 1-Channel Video, Two-Way Multiprotocol Data, S732DVT-EST1
& S732DVR-EST1
Overview- S732DV and S7732DV fiber
links provide transmission of one-way video and two-way
multiprotocol data over one or two optical fibers. S732DV models
feature multimode operation, while S7732DV models operate over
single mode fibers. The links can be supplied as either a
standalone module or as a rack card that can be installed in a
standard 19-inch card cage. A complete system consists of a
transmitter and a receiver. S732DV-PKG kits include a standalone
multimode transmitter, a standalone multimode receiver, and two
power supplies.
Video Processing- The units utilize
8-bit video processing of the video component along with a
signal-to-noise ratio >55 dB that assures clean, noise free
video at the receiver.
Data Translation- The data
functions include the unique data translation feature, which
allows one data format to be input and a different data format
to be output. Data formats are selected during installation and
can be easily changed in the field via rotary switch.
Multi-protocol Data Formats- The
unique multiprotocol data design accepts all major data formats.
This allows the S(7)732DV-PKG to be retained if there is a
change of video control systems
Superior Diagnostics- The SMARTS™ diagnostic technology
provides an extensive set of built-in diagnostic tools including
a video test pattern generator that allows failures to be
diagnosed from the monitor. LEDs provide a visual indication of
the operating status of the equipment.
CWDM Technology- Certain models of
the S732DV series incorporate Coarse Wavelength Division
Multiplexer (CWDM) technology for maximum distance capability
using a single multimode fiber.
Standard Features- One-way video,
two-way multiprotocol data transmission over one or two fibers
Single and multimode models available 8-bit video processing 520
TV lines video resolution Unique data translation function
Field-selectable data format 13 dB optical budget (20 dB on CWDM
models), or 18 db on single-mode models Supports all major data
formats Standalone or rack configurations Standalone package
includes a multimode transmitter, a multimode receiver, and two
power supplies |
Datasheet
Installation manual
ITEM IS IN
STOCK
ITEM NOT IN
STOCK IS S7732 DV |
