SECURITEX SDS EXPLOSION PROOF ELECTROMAGNETIC LOCK-EP17624

(INDUSTRIAL GRADE)



The one stop electrical locking system for HAZARDOUS ZONE doors (CLASS 1 DIV 2)

EP17624 EM-LOCK SERIES




EXPLOSION PROOF MAGNETIC LOCK

Specifically designed for applications where flammable vapors are cause for concern, like clean room, chemical plant, or refinery environments by eliminating the sparks or arc in the magnetic lock.



EP17624 Push-side Explosion Proof EMLock® with conduit on side-block

EP17624TJ Pull-side Explosion Proof EMLock® with conduit on top panel includes Top Jamb mounting bracket

FEATURE

Explosion Proof Epoxy Sealed to eliminate sparks

No moving parts, virtually maintenance free

Corrosion Proof

Door Status Sensor

628 Clear Anodized Aluminum housing

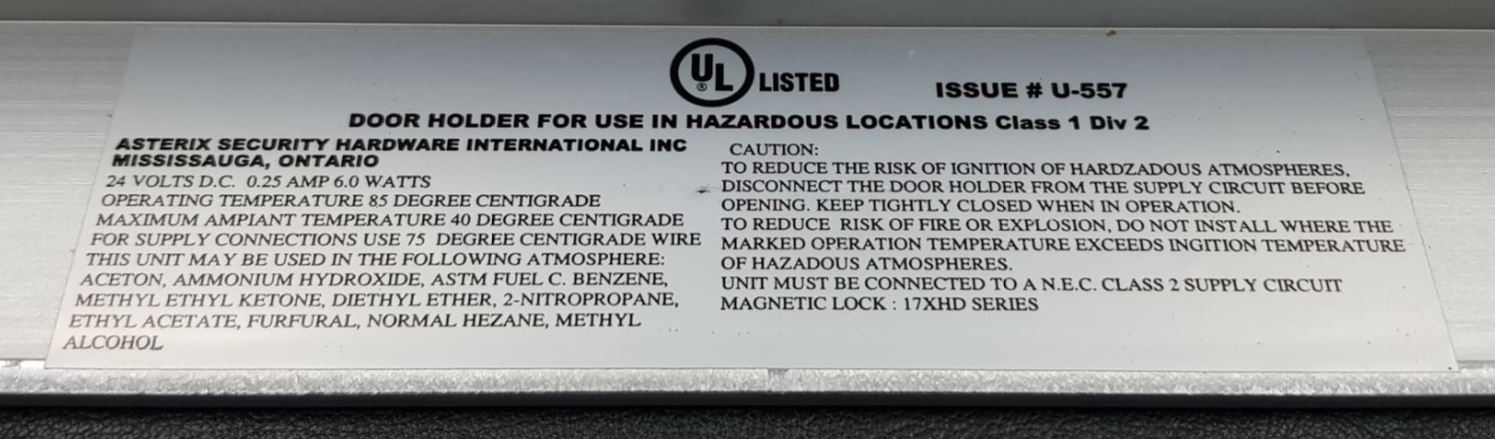

Classified for Class 1, Division 2 Hazardous Locations

SPECIALLY DESIGN AND BUILT FOR USE IN THE FOLLOWING ATMOSPHERES:

This unit is intended to be used in the following atmospheres: Acetone, Ammonium Hydroxide, ATSM fuel C, Benzene, Methyl-Ethylketone, Diethyl-Ether, 2-Nitropropane, Ethyl-Acetate, Furfural, Normal Hexane, Methyl Alcohol.


OPERATING TEMPERATURE

Operating temperature for the magnetic lock will not exceed 185° F (85° C). Maximum ambient temperature is not to exceed 104°F (40° C). For supply connections, use a suitable wire with a minimum insulation temperature rating of 167° F (75° C).

POWER SUPPLY CODE REQUIREMENT

This unit must be connected to a NEC (National Electric Code, NFPA 70) Class 2 Supply Circuit rated for 24 VDC with a minimum current output of 0.5 amperes and output power of 12 watts. A UL Listed SDC 600 Series Power Controller is recommended.

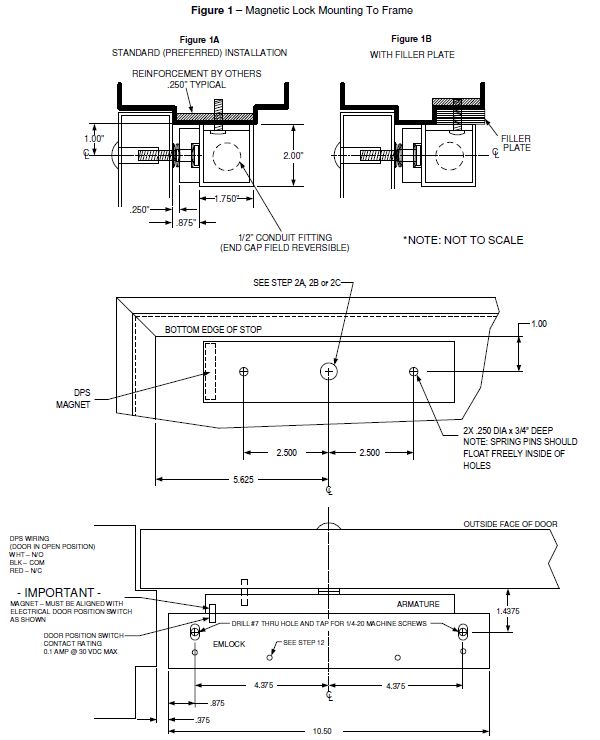

INSTALLATION



FOR MORE DETAIL ON THE EP17624 DOWNLOAD THE DOCUMENTATION HERE.

EP17624 DATASHEET

EP17624 INSTALLATION MANUAL
