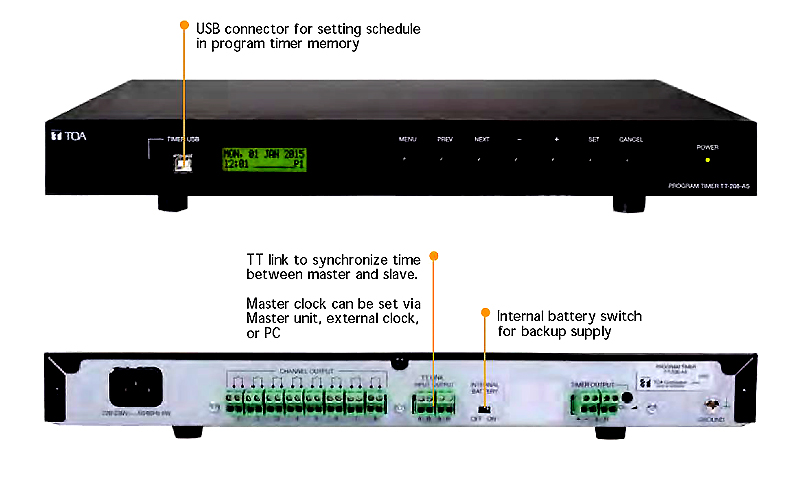

T T-208 Program Timer
T T-208 is a weekly program timer with 8 channel outputs and 1 output with Westminster chime audio. Accurate time
synchronization can be achieved with PC or additional timers installed in the application.

FEATURE

・Built-in Westminster chime
・Weekly timer with 4 programs
・8 channels and control contacts
・80 schedules per channel, programmable by PC or LCD menu
・Internal memory can be retained for approx. 100 hours by the internal battery backup in the event of power outage

TT-208 PROGRAM TIMER SPECIFICATION

Power Source: 220 - 230 V AC, 50/60 Hz
Power Consumption: 10W
Audio Output: Westminster Chime, Level : 0 dB, 600
Synchronized Time: Send out pulse per 1 minute
Control Output: 8 channels contact switch (NO), 1 output contact switch (NO)
Display: Power Indicator : Green, LCD Character : Back light green, USB Indicator PC Link : Orange
PC Requirements: Windows XP 1/2/3 or Windows 7/8, RAM 512 mb
Operating Temperature: 0 C to 40 C
Operating Humidity: Under 90% RH (no condensation)
Color: Front Panel : Aluminum, Black, Alumite; Case : SECC plate, black, paint
Dimensions: 420 (W) x 59 (H) x 342 (D) mm
Weight: 3.2 kg
Accessories: Power cable (YA-301) x 1, Removable terminal plug (2 pin) x 12, CD Rom (Software & Manual) x 1
Option: Rack-mounting bracket: MB-15B
