SECURITEX TRUE RADIO FREQUENCY 433mhz card user data controller

433 MHz Wiegand data transmitter & receiver

SD186DX-wdtr (3G controller built-in)



433 MHz Wiegand data transmitter & receiver

SD186DX-wdtr (3G controller built-in) with 433Mhz receiver built-in

The SD186DX-wdtr is a system that was put together from a number of high end industrial systems module to provide a solution to system integrator and field system professional to connect a normal RFID card / Pin reader / mobile phone / Apps / SMS / Radio Frequencies transmitters to send data from one building to another building be it across the highway, motorways, rivers or marinas to another building where the controller with the relevant software is installed and located.

Master Controller installation restriction

The SD186DX-wdtr c/w TX and RX is very useful when at the door where the card and pin reader is installed there is constrain to install the controller because to prevent user data from compromised if the controller is been removed or unauthorized taping of the controller to steal the user data is possible etc, the SDX186DX-wdtr is your solution.

Scenario of application (Access control application)

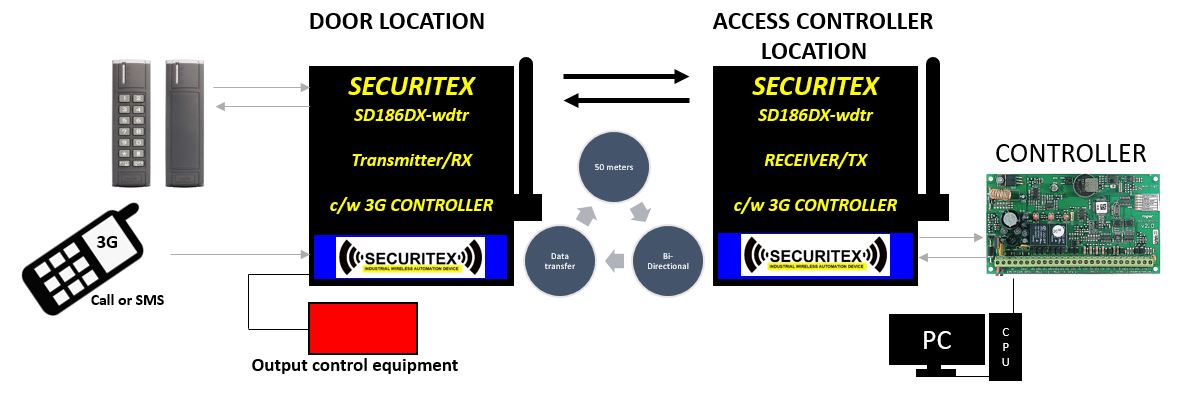

Another scenario is for example a company have 2 office building opposite each other (Line of Sight-LOS)  separate by a highway about 50 meters to 60 meters and office A is installed with the Full Access Control Systems with the full access control software and office B is only a service office or warehouse. The door system at office B side cannot install the Access Controller but yet must be able to access the Office A card user data to open Office B doors. This is now possible with the SD186DX-wdtr.

3G option on the SD186DX-wdtr

With the 3G controller built-in (Optional), user can now control all the input and output of the SD186DX-wdtr from any where to activate devices from their mobile phone.

Radio Frequency device on the SD186DX-wdtr

With the 315Mhz, 433MHz and 866MHz receiver built-in (Optional) user can now control all the input and output of the SD186DX-wdtr from a distance using the dedicated remote transmitter to activate devices.

The above SD186DX-wdtr is not an off the shelf system or equipments, its a custom design and built system for specific application. Client who have a needs for such solution can contact Securitex to discuss in more detail.

If you have such situation feel free to contact us for the solution.
