Securitex High Speed Dome HSD-6LW18



HSD-6LW18 / HSD-6LW22 / HSD-6LW27

Indoor / Outdoor (P-T-Z High Speed Dome)

Built-in 18X optical zoom Color Camera:
·Total Zoom Ratio:216X ( 18X Optical Zoom / 12X Digital Zoom )
·Image Sensor: High Sensitive 1/4" Sony Exview HAD CCD
·Support 0.1 I x (Day & Night) Function.
New features for the new intelligence speed dome camera
The configuration of new speed dome camera
·it scan and operate very accurately.
·the dip switch is suitable for the user.

Main feature:
·Inner with high resolution ratio and high sensitivity colored camera.
·The function of camera can be set by the menu.
·OSD show
·the speed of lens, ZOOM and FOCUS can be set.
·auto overturn
·preset scan
·auto scan
·the character of preset can be edit
·It has 128 presets.
·It can tour between two presets.
·Auto flip
·It can show the working state.
·The sensitivity of Color camera : 0.7lux
·the address can be set by long distance.
·the speed of scan is adjustable.
·Tour speed ( 5/S , 60/S , 120/S )
·The speed can be increased from 0.3/S to 120/S by manually.
·Auto detect protocol (Pelco P or D)

·Bank ·Schools ·Highways ·Casinos ·Stations ·Supermarkets ·Offices ·Parking lots
·Libraries ·Residences




HSD-6LW18 / HSD-6LW22 / HSD-6LW27

Image Sensor High Sensitive 1/4" Sony Exview HAD CCD
Resolution 480 TV Lines
input voltage DC12V , 1.5A ( ±20% ) (linear power )
Power <=24W
pan speed 0.3°-240°/s
tilt speed 0.3°-120°/s
tilt scope by manually +2~92°
pan scan scope 360°run
the frequency of pan scan 15.625KHZ
the frequency of tilt scan 50Hz
Video output 1.0V[p-p] (75O/BNC, composite)
minimum illumination 0.06 lx (black and white) or 1 lx (color) (increase twice on the sensitivity)
0.1 I x (Day & Night) Function.
Preset 128 presets
time for finding preset <2S
preset speed 240°/S
Aperture auto ( open/close ) /manual
the time for focus <1.65S
scan precision 0.225±0.03
video system PAL / NTSC
S/N ratio >48dB
Protocol Auto detect (Pelco P or D), 100% compatible
communication Standard RS-485
baud rate 2400 / 4800 / 9600 available
temperature Suitable temperature (Indoor): -20°C~50°C
Suitable temperature (Outdoor): -45°C~50°C
safe class IP66DS

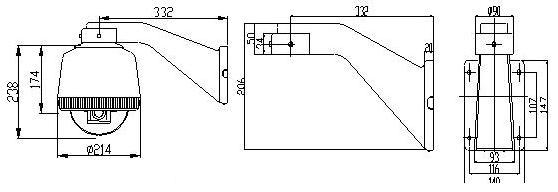

Dimension Diameter 6 inch
Weight Approximation 5Kg
