High Speed Dome HSD-7P27









HSD-7P18
/ HSD-7P22 / HSD-7P27


Indoor / Outdoor (P-T-Z High Speed Dome)

Built-in 27X optical zoom Color Camera:
·Total Zoom Ratio:270X ( 27X Optical Zoom / 10X Digital Zoom )
·Image Sensor: High Sensitive 1/4" Sony Super HAD CCD
·Support 0.1 I x (Day & Night) Function.
Features:
New features for the new intelligence speed dome camera
The configuration of new speed dome camera
·it scan and operate very accurately.
·the dip switch is suitable for the user.



Main feature:
·Inner with high resolution ratio and high sensitivity colored camera.
·The function of camera can be set by the menu.
·OSD show
·the speed of lens, ZOOM and FOCUS can be set.
·auto overturn
·preset scan
·auto scan
·the character of preset can be edit
·It has 128 presets.
·It can tour between two presets.
·Auto flip
·It can show the working state.
·Making
·The sensitivity of Color camera : 0.7lux
·the address can be set by long distance.
·the speed of scan is adjustable.
·Tour speed ( 5/S , 60/S , 120/S )
·The speed can be increased from 0.3/S to 120/S by manually.
·proportion
·Auto detect protocol (Pelco P or D)

Application:
·Bank ·Schools ·Highways ·Casinos ·Stations ·Supermarkets ·Offices ·Parking lots
·Libraries ·Residences

Specifications



Model

HSD-7P18 / HSD-7P22 / HSD-7P27

Image Sensor

High Sensitive 1/4" Sony Super HAD CCD

Resolution

480 TV Lines

input voltage

DC12V , 1.5A ( ±20% ) (linear power )

Power

<=24W

pan speed

0.3°-240°/s

tilt speed

0.3°-120°/s

tilt scope by manually

+2~92°

pan scan scope

360°run

the frequency of pan scan

15.625KHZ

the frequency of tilt scan

50Hz

Video output

1.0V[p-p] (75O/BNC, composite)

minimum illumination

0.06 lx (black and white) or 1 lx (color) (increase twice on the sensitivity)
0.1 I x (Day & Night) Function.

Preset

128 presets

time for finding preset

<2S

preset speed

240°/S

Aperture

auto ( open/close ) /manual

the time for focus

<1.65S

scan precision

0.225±0.03

video system

PAL / NTSC

S/N ratio

>48dB

Protocol

Auto detect (Pelco P or D), 100% compatible

communication

Standard RS-485

baud rate

2400 / 4800 / 9600 available

temperature

Suitable temperature (Indoor): -20°C~50°C
Suitable temperature (Outdoor): -45°C~50°C

safe class

IP66DS

Dimension

Diameter 7 inch

Weight

Approximation 6Kg

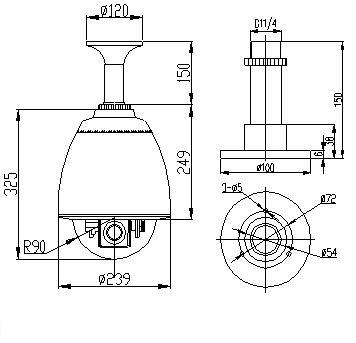

Dimension
