High Speed Dome camera
HSJ series Joystick Controller



HSJ-02D (P-T-Z Controller)



HSJ-0xD

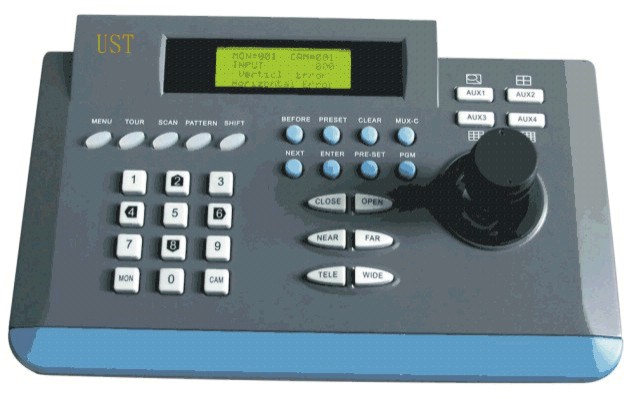

HSJ-03D (P-T-Z Controller)

High Speed Dome PTZ Joystick Controller

HSJ-02D / 03D
(P-T-Z Controller)

Features:
·baud rate : 1200Bit/S ¸ 2400Bit/S ¸ 4800Bit/S and 9600Bit/S are available.
·LCD with light.
·it can connect with DVR and QUAD
·it has PELCO D and PELCO P
·it has hotkey
·2D or 3D joystick control
·tour shortcut key
·Auto scan shortcut key

Specifications:

Model

HSJ-02D / 03D

Input voltage

DC9V ±10%

Input power

< 3W

communication

RS-485

Baud rate

2400 / 4800 / 9600 are available

working temperature -10 °C ~50°C

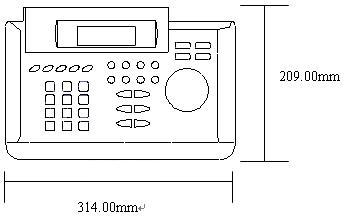

Dimension
