Overview of the Securitex Speed Dome Camera.

The Securitex CCTV speed dome camera is the next generation of Pan/tilt CCTV camera which offers several significant enhancements and refinements from the conventional camera counted on Pan/Tilt unit. The PTZ speed dome camera is derived through the commitment by the manufacturer continuous improvement and attention to customers requirements. The Securitex high speed dome camera comes in various shapes and sizes. This cameras are packs with more features than the normal camera. With continuous rotation and a speed range, this dome camera is easily controlled either from the Digital Video Recorder software or dedicated keyboard. Direct and accurate response ensures targets are easily located and tracked. When required, the dome can be quickly spun 180 deg., an important feature when something passes directly under the camera. This speed domes high performance color camera is equipped with a 18X to 27X optical zoom and 12 X digital zoom. Auto-focus zoom lens and resolution of 480TV lines provides very high definition images. The built-in Digital Signal Processing maintains optimum quality in varying conditions with intelligent use of Back Light Compensation, Auto ZoomEtc.





HSI-6R18/22/27 Detail click here HSI-6C18/22/27 Detail click here HSD-6P18/22/27 Detail click here



HSD-6SW18/22/27 Detail click here HSD-6LW18/22/27 Detail click here HSD-7P18/22/27 Detail click here

HSD-7LW18/22/27 Detail click here HSJ-02D Detail click here HSJ-03D Detail click here

Overview of speed dome camera specification

Model Indoor/ Outdoor Compact Size P/T/Z Image Sensor Video System Resolution Min. ILLUM. Communication

HSI-6R18

Indoor 6 inch P/T/Z

18X optical

12X digital

1/4” type Sony EXview HAD CCD



NTSC/PAL

480 TV lines

0.7 Lux

(typical)

RS485

HSI-6R22

Indoor

6 inch



P/T/Z

22X optical

10X digital

1/4” Sony Super HAD CCD



NTSC/PAL



480 TV lines



1 Lux Day/night

(0.1 Lux)

RS485

HSI-6R27

Indoor

6 inch



P/T/Z

27X optical

10X digital
1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux

Day/night

(0.01 Lux)
RS485

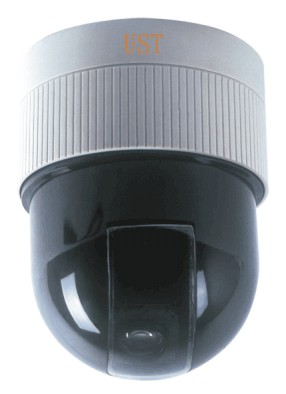

HSI-6C18

Indoor

6 inch



P/T/Z

18X optical

12X digital
1/4” type Sony EXview HAD CCD

NTSC/PAL



480 TV lines



0.7 Lux

(typical)



RS485

HSI-6C22

Indoor

6 inch



P/T/Z

22X optical

10X digital

1/4” Sony Super HAD CCD



NTSC/PAL



480 TV lines



1 Lux Day/night

(0.1 Lux)

RS485

HSI-6C27

Indoor

6 inch



P/T/Z

27X optical

10X digital

1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux

Day/night

(0.01 Lux)
RS485

HSD-6P18

Indoor/Outdoor

6 inch



P/T/Z

18X optical

12X digital
1/4” type

Sony EXview HAD CCD

NTSC/PAL



480 TV lines



0.7 Lux

(typical)

RS485

HSD-6P22



Indoor/Outdoor





6 inch



P/T/Z

22X optical

10X digital

1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux Day/night

(0.1 Lux)

RS485

HSD-6P27



Indoor/Outdoor





6 inch



P/T/Z

27X optical

10X digital

1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux

Day/night

(0.01 Lux)
RS485

HSD-6SW18



Indoor/Outdoor





6 inch



P/T/Z

18X optical

12X digital
1/4” type Sony EXview HAD CCD



NTSC/PAL



480 TV lines



0.7 Lux

(typical)

RS485

HSD-6SW22



Indoor/Outdoor





6 inch



P/T/Z

22X optical

10X digital
1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux Day/night

(0.1 Lux)

RS485

HSD-6SW27



Indoor/Outdoor





6 inch



P/T/Z

27X optical

10X digital
1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux

Day/night

(0.01 Lux)
RS485

HSD-6LW18



Indoor/Outdoor





6 inch



P/T/Z

18X optical

12X digital
1/4” type Sony EXview HAD CCD

NTSC/PAL



480 TV lines



0.7 Lux

(typical)

RS485

HSD-6LW22



Indoor/Outdoor





6 inch



P/T/Z

22X optical

10X digital
1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux Day/night

(0.1 Lux)

RS485

HSD-6LW27



Indoor/Outdoor





6 inch



P/T/Z

27X optical

10X digital
1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux

Day/night

(0.01 Lux)
RS485

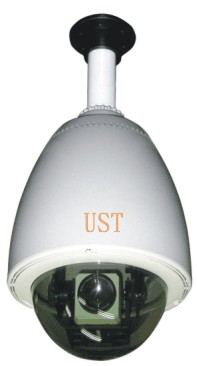

HSD-7P18



Indoor/Outdoor



7 inch P/T/Z

18X optical

12X digital
1/4” type Sony EXview HAD CCD

NTSC/PAL



480 TV lines



0.7 Lux

(typical)

RS485

HSD-7P22



Indoor/Outdoor





7 inch



P/T/Z

22X optical

10X digital
1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux Day/night

(0.1 Lux)

RS485

HSD-7P27



Indoor/Outdoor





7 inch



P/T/Z

27X optical

10X digital
1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux

Day/night

(0.01 Lux)
RS485

HSD-7LW18



Indoor/Outdoor





7 inch



P/T/Z

18X optical

12X digital
1/4” type Sony EXview HAD CCD



NTSC/PAL



480 TV lines



0.7 Lux

(typical)

RS485

HSD-7LW22



Indoor/Outdoor





7 inch



P/T/Z

22X optical

10X digital
1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux Day/night

(0.1 Lux)

RS485

HSD-7LW27



Indoor/Outdoor





7 inch



P/T/Z

27X optical

10X digital
1/4” Sony Super HAD CCD

NTSC/PAL



480 TV lines



1 Lux

Day/night

(0.01 Lux)
RS485

HSJ-02D

P/T/Z Controller Keyboard To purchase the above speed dome camera please feel free to contact us at the following address

stated below. All question will be handle by our professional engineer. In the event we are unable

to answer your question we will refer this question to the manufacturer.

Please direct all Question and Answer to:

sales@securitex.com.sg

or call +65 67852171 24 hrs hotline FAX: +65 65850107

@1996-2011

SECURITEX ELECTRONIC SYSTEMS ENGINEERING

BLOCK 9010 TAMPINES ST 93 #04-145 TAMPINES INDUSTRIAL PARK A SINGAPORE 528844

RS485


HSJ-03D

P/T/Z controller Keyboard RS485
