Panasonic CCD camera model
|
Camera Image |
Camera Description |
Specification |
Operational manual |
|
Mini camera housing and
enclosure |
|
PCF1 |
 |
Mini
Outdoor Pedestal Mount w/Fixed Focal Lens |
|
|
|
PCV1 |
 |
Mini
Outdoor Pedestal Mount w/Vari-Focal Lens |
|
|
|
PCF3 |
 |
Mini
Recessed Wall Housing w/Fixed Focal Lens |
|
|
|
PCV3 |
 |
Mini
Recessed Wall Housing w/Vari-Focal Lens |
|
|
| |
|
|
|
|
|
PCH9 |
 |
Indoor
Corner Housing |
|
|
|
Colour Dome CCD camera |
|
PCF2 |
 |
5"
Surface Mount Dome w/Fixed Focal Lens |
|
|
|
PCV2 |
 |
5"
Surface Mount Dome w/Vari-Focal Lens |
|
|
|
PCF5 |
 |
Mini
Multiple Camera Dome w/Fixed Focal Lens |
|
|
|
PCF5 |
|
Mini
Multiple Camera Dome w/Fixed Focal Lens |
|
|
|
PCV5 |
 |
Mini
Multiple Camera Dome w/Vari-Focal Lens |
|
|
|
WV-CF202 |
 |
Camera,
Mini Dome, 1/4" CCD Color, 330 TVL |
|
|
|
Colour Speed Dome / PTZ
camera |
|
PCF6 |
 |
5"
Pendant Mount Dome w/Fixed Focal Lens |
|
|
|
PCV6 |
 |
5"
Pendant Mount Dome w/Vari-Focal Lens |
|
|
|
PCF6W |
 |
5"
Wall Mount Dome w/Fixed Focal Lens |
|
|
|
PCV6W |
 |
5"
Wall Mount Dome w/Vari-Focal Lens |
|
|
|
WV-CF254 |
 |
Mini-Dome
w/1/3" SD Color Camera, 3.2-6.4mm Lens, 480 TVL |
|
|
|
WV-CF1WA |
N/A |
Dome Cover,
White f/WV-CF254 |
|
|
|
Panasonic high resolution
CCD camera (All camera does not c/w lens which is sold separately) |
|
WV-CL920 |
 |
Camera,
1/2" CCD Color and B/W Switch-able, 120VAC.
The WV-CL920A Series combines a near-infrared CCD with a new digital
signal processor (DSP). Switching automatically from color mode during the
day to B/W mode at night, these cameras are ideal for 24-hour
surveillance. When equipped with an F1.4 lens, they deliver clear images
in light s low as 0.14 lx (0.014 fx) in color mode and as low as 0.01 lx
(0.001 fc) in B/W mode. With electronic enhancement, sensitivity is up to
32 times greater than that of standard cameras. When combined with a
near-infrared light source, these cameras can also be used for
near-infrared (B/W) surveillance in settings with no visible light.
Horizontal resolution is 480 lines in color mode, 570 lines in black and
white. Man advanced features are included in the WV-CL920A including, a
high-speed electronic shutter, character display, and an easy to connect
alarm output terminal for use with remote sensors or other surveillance
equipment. |
|
|
|
WV-CL924 |
 |
Camera,
1/2" CCD Color and B/W Switch able, 24VAC.
The WV-CL924A combines a near-infrared CCD with a new digital signal
processor (DSP). Switching automatically from color mode during the day to
B/W mode at night, these cameras are ideal for 24-hour surveillance. When
equipped with an F1.4 lens, they deliver clear images in light s low as
0.14 lx (0.014 fx) in color mode and as low as 0.01 lx (0.001 fc) in B/W
mode. With electronic enhancement, sensitivity is up to 32 times greater
than that of standard cameras. When combined with a near-infrared light
source, these cameras can also be used for near-infrared (B/W)
surveillance in settings with no visible light. Horizontal resolution is
480 lines in color mode, 570 lines in black and white. Man advanced
features are included in the WV-CL920A including, a high-speed electronic
shutter, character display, and an easy to connect alarm output terminal
for use with remote sensors or other surveillance equipment. |
|
|
|
WV-CW374 |
 |
The WV-CW374's streamlined metallic body
contains a Super Dynamic II camera, 8x variable-focal lens, fan/heater,
and IP66 standard approved weather proof outdoor housing. It's loaded with
features that make it ideal for all day, all night 24-hour surveillance,
and it's easy to install as well.
It's unprecedented stylish design makes it the perfect match for office
entrances and communicates the presence of the highest level of security
available. |
|
|
|
WV-CP160 |
 |
Camera,
1/3" SDII Color, VP, 12VDC requires WV-PS15 |
 |
|
|
WV-CP240 |
 |
Camera,
1/3" CCD Color DSP, 480 TVL, 2 Lux at f/1.4, LL, 120VAC.
The WV-CP240 Series DSP (Digital Signal Processing) cameras
feature high resolution and sensitivity, advanced image adjustment
functions, and flexible systems configuration.
By employing a 1/3-type CCD (380,000 pixels), the WV-CP240 series achieves
a horizontal resolution of 480 lines, and a signal-to-noise ratio of
50dbB. Minimum illumination is 2 lux (0.2 fx) when used with a F1.4 lens
and 0.6 lux (0.06 fc) when used with a F0.75 lens. The camera has various
image adjustment functions such as Backlight Compensation (BLC), Aperture
Correction, and Auto Tracing White Balance (ATW). This allows the cameras
to produce natural looking images even in poor lighting conditions. The
Panasonic WV-CP240 Series is ideal for CCTV surveillance applications.
|
|
|
|
WV-CP242 |
 |
Camera,
1/3" CCD Color DSP, 480 TVL, 2 Lux at f/1.4, w/o LL, 12VDC.
The WV-CP240 Series DSP (Digital Signal Processing) cameras
feature high resolution and sensitivity, advanced image adjustment
functions, and flexible systems configuration.
By employing a 1/3-type CCD (380,000 pixels), the WV-CP240 series achieves
a horizontal resolution of 480 lines, and a signal-to-noise ratio of
50dbB. Minimum illumination is 2 lux (0.2 fx) when used with a F1.4 lens
and 0.6 lux (0.06 fc) when used with a F0.75 lens. The camera has various
image adjustment functions such as Backlight Compensation (BLC), Aperture
Correction, and Auto Tracing White Balance (ATW). This allows the cameras
to produce natural looking images even in poor lighting conditions. The
Panasonic WV-CP240 Series is ideal for CCTV surveillance applications.
|
|
|
|
WV-CP244 |
 |
Camera,
1/3" CCD Color DSP, 480 TVL, 2 Lux at f/1.4, LL, 24VAC.
The WV-CP240 Series DSP (Digital Signal Processing) cameras
feature high resolution and sensitivity, advanced image adjustment
functions, and flexible systems configuration.
By employing a 1/3-type CCD (380,000 pixels), the WV-CP240 series achieves
a horizontal resolution of 480 lines, and a signal-to-noise ratio of
50dbB. Minimum illumination is 2 lux (0.2 fx) when used with a F1.4 lens
and 0.6 lux (0.06 fc) when used with a F0.75 lens. The camera has various
image adjustment functions such as Backlight Compensation (BLC), Aperture
Correction, and Auto Tracing White Balance (ATW). This allows the cameras
to produce natural looking images even in poor lighting conditions. The
Panasonic WV-CP240 Series is ideal for CCTV surveillance applications.
|
|
|
|
WV-CP470 |
 |
Camera,
SDII, 1/3" CCD Color DSP, Day/Night Operation, 120V AC.
Always on the job, these cameras automatically switch from
color, in daytime, to high sensitivity black and white at night. With full
24-hour surveillance capabilities, features include, motion detection and
error free title displays.
With 480 lines of horizontal resolution, in color mode, and 570 lines in
black and white, the WV-CP470 Series defines high definition. It can
operate in color mode at 0.8Lx (0.08 fc), using a F1.4 lens. In black and
white mode sensitivity is an amazing 0.1 Lx (0.01 fc). Plus, its linear
sensitivity can be electronically enhanced up to 32 times. With Super
Dynamic II capabilities, the WV-CP470 Series make it possible to obtain
clear images of subjects in extreme lighting conditions. A built-in alarm
output terminal makes connection to an extreme sensor a snap.
Indoors, outdoors and under the toughest conditions, the WV-CP470 Series
provides constant and reliable surveillance. |
|
|
|
WV-CP474 |
 |
Camera,
SDII, 1/3" CCD Color DSP, Day/Night Operation, 24V AC & 12V.
Always on the job, these cameras automatically switch from
color, in daytime, to high sensitivity black and white at night. With full
24-hour surveillance capabilities, features include, motion detection and
error free title displays.
With 480 lines of horizontal resolution, in color mode, and 570 lines in
black and white, the WV-CP470 Series defines high definition. It can
operate in color mode at 0.8Lx (0.08 fc), using a F1.4 lens. In black and
white mode sensitivity is an amazing 0.1 Lx (0.01 fc). Plus, its linear
sensitivity can be electronically enhanced up to 32 times. With Super
Dynamic II capabilities, the WV-CP470 Series make it possible to obtain
clear images of subjects in extreme lighting conditions. A built-in alarm
output terminal makes connection to an extreme sensor a snap.
Indoors, outdoors and under the toughest conditions, the WV-CP470 Series
provides constant and reliable surveillance. |
|
|
|
WV-CP474H |
 |
Camera,
Compact Body, SDII, 1/3" CCD Color DSP, Day/Night Operation, 24V AC.
Less Than 50% The Size With 100% The Performance. The
Panasonic WV-CP474H Compact Body SDII camera is a fraction the size of
traditional box cameras with all the performance of our leading line of
CCD cameras. Features include our exclusive Super Dynamic II technology,
Day/Night operation, and a host of advanced digital signal processing (DSP)
features. The unit is ideal for numerous security applications requiring
small housing and high picture quality. This would include casinos, covert
surveillance, ATM installations, mobile surveillance and dome camera
applications. |
|
|
|
Panasonic Network camera |
|
WV-NM100 |
 |
Network
Security Camera, SDll, Day & Night, 1/3" CCD.
The WV-NM100 captures live images and displays them onto
your personal computer. A digital video camera, a web server, and a
network interface are integrated into one compact housing. The camera can
be connected directly to an Ethernet terminal, enabling effortless network
monitoring. Simply setup an IP address. |
|
|
|

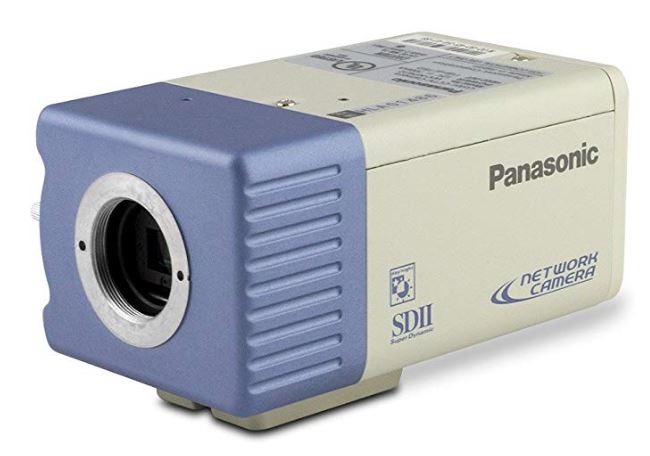

WV-NP472 |
 |
Network Monitoring Camera,
1/4" CMOS, 9V DC. The WV-NP472 directly
connects to either digital or analog devices. Simply set an IP address and
connect it to an Ethernet terminal for monitoring and control from a
personal computer. Or use the analog video out to connect to a
conventional monitoring system using coaxial cable.
The WV-NP472 camera utilizes Panasonic's Super Dynamic II function to
capture natural images at entryways, near windows, and in other locations
with harsh contrasts between light and dark. It automatically stores
images in response to inputs from motion detectors and external sensor
alarms and can send images automatically as e-mail attachments. In
addition, this color camera can also control external devices, turning on
lighting or starting a surveillance recorder. It operates with only 0.8 lx
(0.08 fc) of available light in color mode and a mere 0.1 Lx (0.01 fc) in
black and white. Its Day/Night switching function automatically switches
to black-and-white recording when available light is low. Thus, this
single security camera can deliver 24-hour surveillance.
The WV-NP472 is designed for monitoring over a WAN or over the Internet.
Its sophisticated surveillance functions make this the network security
camera of choice for a wide range of settings, including banks, office
buildings, and franchise outlets. |
|
|
|
Panasonic B/W CCD camera |
|
WV-BP140 |
 |
Camera,
1/3" CCD B/W, w/ a 380 PVL Resolution 0.08 LX at S1.4 min.
illumination (120VAC). The WV-BP140 Series black
and white cameras emphasize high resolution and sensitivity and employ
advanced image adjustment functions producing flexibility. By utilizing a
1/3-type CCD (251,000 pixels), horizontal resolution is 380 lines, with a
low 46dB S/N ratio. Minimum illumination of 0.08 lux (0.008 fc) is
achieved when used with a F1.4 lens. This camera has various image
adjustment functions including Backlight Compensation (BLC) and Electronic
Light Control. An ELC function allows for the changing of shutter speeds
up to 1/120,000 second. This allows for sharper images, even in limited
lighting conditions.
The WV-BP140 Series is the perfect addition for CCTV surveillance
applications. |
|
|
|
WV-BP142 |
 |
Camera,
1/3" CCD B/W, w/ a 380 PVL Resolution 0.08 LX at S1.4 min.
illumination (12 VDC). The WV-BP140 Series black
and white cameras emphasize high resolution and sensitivity and employ
advanced image adjustment functions producing flexibility. By utilizing a
1/3-type CCD (251,000 pixels), horizontal resolution is 380 lines, with a
low 46dB S/N ratio. Minimum illumination of 0.08 lux (0.008 fc) is
achieved when used with a F1.4 lens. This camera has various image
adjustment functions including Backlight Compensation (BLC) and Electronic
Light Control. An ELC function allows for the changing of shutter speeds
up to 1/120,000 second. This allows for sharper images, even in limited
lighting conditions.
The WV-BP140 Series is the perfect addition for CCTV surveillance
applications. |
|
|
|
WV-BP144 |
 |
Camera,
1/3" CCD B/W, w/ a 380 PVL Resolution 0.08 LX at S1.4 min.
illumination (24 VAC). The WV-BP140 Series black
and white cameras emphasize high resolution and sensitivity and employ
advanced image adjustment functions producing flexibility. By utilizing a
1/3-type CCD (251,000 pixels), horizontal resolution is 380 lines, with a
low 46dB S/N ratio. Minimum illumination of 0.08 lux (0.008 fc) is
achieved when used with a F1.4 lens. This camera has various image
adjustment functions including Backlight Compensation (BLC) and Electronic
Light Control. An ELC function allows for the changing of shutter speeds
up to 1/120,000 second. This allows for sharper images, even in limited
lighting conditions.
The WV-BP140 Series is the perfect addition for CCTV surveillance
applications. |
|
|
|
WV-BP330 |
 |
Camera,
1/3" CCD B/W DSP, 570 TVL, 0.06 Lux at f/1.2, LL, 120VAC.
Less Than 50% The Size With 100% The Performance. The
Panasonic WV-CP474H Compact Body SDII camera is a fraction the size of
traditional box cameras with all the performance of our leading line of
CCD cameras. Features include our exclusive Super Dynamic II technology,
Day/Night operation, and a host of advanced digital signal processing (DSP)
features. The unit is ideal for numerous security applications requiring
small housing and high picture quality. This would include casinos, covert
surveillance, ATM installations, mobile surveillance and dome camera
applications. |
|
|
|
WV-BP332 |
 |
Camera,
1/3" CCD B/W DSP, 570 TVL, 0.06 Lux at f/1.2, w/o LL, 12VDC.
Panasonic presents advanced CCTV technology to meet the
demand of new and ever-changing applications. The 1/3" CCD Digital Signal
Processing Black and White WV-BP330 Series Cameras deliver outstanding
high-quality pictures as well as versatile digital functions and system
integration capability.
The WV-BP330 Series cameras incorporate a 1/3" interline transfer type CCD
(380,000 pixels: effective) and achieve high sensitivity of 0.008 fc (0.08
lux) at F1.4, outstanding 570-line horizontal resolution and
signal-to-noise ratio of 50 dB.
With its advanced performance and expanded flexibility, the WV-BP330
series camera meet you specific needs with an affordable cost/performance
ratio. |
|
|
|
WV-BP334 |
 |
Camera,
1/3" CCD B/W DSP, 570 TVL, 0.06 Lux at f/1.2, LL, 24VAC.
Panasonic presents advanced CCTV technology to meet the
demand of new and ever-changing applications. The 1/3" CCD Digital Signal
Processing Black and White WV-BP330 Series Cameras deliver outstanding
high-quality pictures as well as versatile digital functions and system
integration capability.
The WV-BP330 Series cameras incorporate a 1/3" interline transfer type CCD
(380,000 pixels: effective) and achieve high sensitivity of 0.008 fc (0.08
lux) at F1.4, outstanding 570-line horizontal resolution and
signal-to-noise ratio of 50 dB.
With its advanced performance and expanded flexibility, the WV-BP330
series camera meet you specific needs with an affordable cost/performance
ratio. |
|
|
|
WV-BP550 |
 |
Camera,
1/3" SD CCD B/W DSP, 570 TVL, 0.06 Lux at f/1.2, LL, 120VAC. |
|
|
|
WV-BP554 |
 |
Camera,
1/3" SD CCD B/W DSP, 570 TVL, 0.06 Lux at f/1.2, LL, 24VAC/12VDC |
|
|
