Securitex Electronic Systems Engineering (Power supply division)



DENGEN HRC-15010

DENGEN HI-MAX100

DENGEN HI-MAX70D

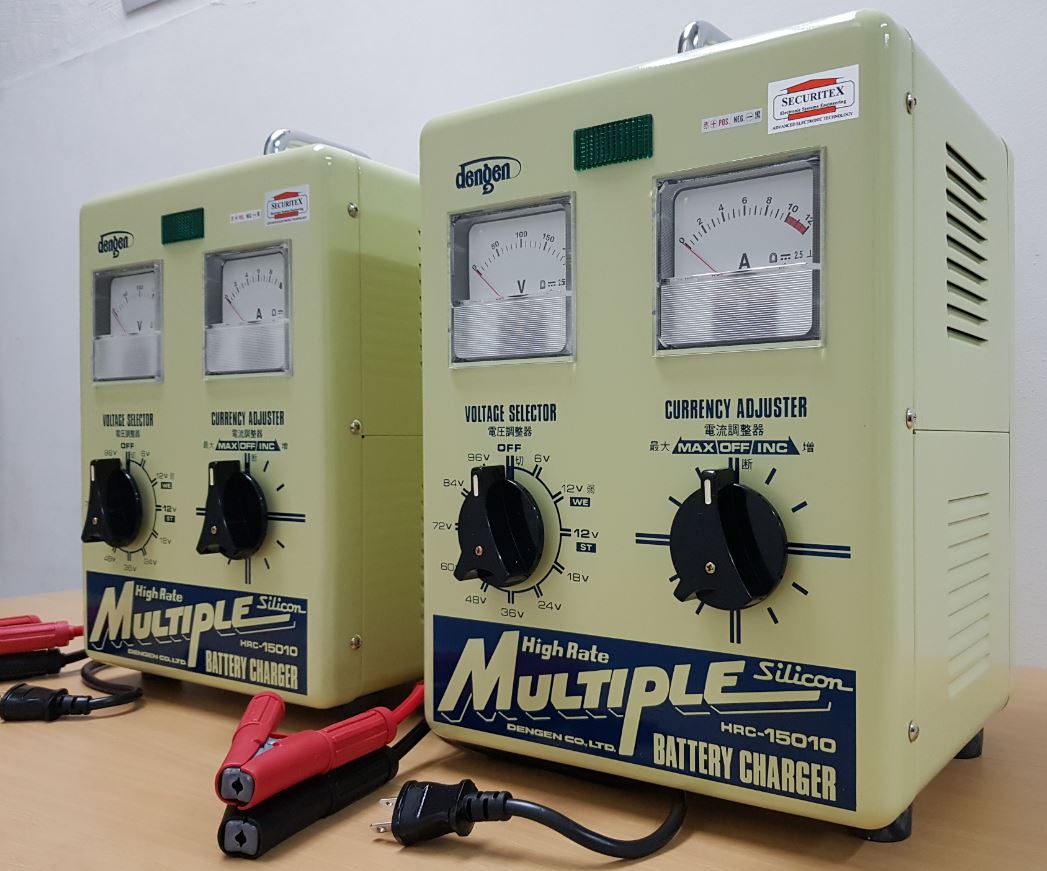

DENGEN HRC-15010 12V 24V 48V 72V 96V Battery Charger (Made in JAPAN)

Industrial Specification Charging System

TO VIEW LARGER IMAGE CLICK ON THE IMAGE ABOVE



DOWNLOAD DATA SHEET AND OPERATION MANUAL CLICK HERE.





The DENGEN BATTERY CHARGER (Made in Japan) is a very high quality multiple batteries charging system which allows charge of up to 96V (12V x 8pcs) at the same time!

Specification: Model HRC 15010


Alternating current input - 100V (Single phase) 50/60Hz 1.4 KVA

Rectification system – Both wave rectification system SILICON DIODE UNIT

Direct current output - 6-96V ( 12V x 8 pc) 0-10A (Maximum)

Voltage change - 6v.12v.24v.48v.72v.96v

Backstop – Fuse (Input inside) – Over current breaker (Output side)

Use – Normal charge : For mini bike ~ Diesel Car

Size - 400x270x255mm

Insulated system – A kind double insulation system

Accessories – Power cord/code 3.5m , Charge cord/code 2.2m attaching



To download catalogue and specification



Click for catalogue



Securitex DENGEN Hi-Max 100

Catalogue and Specification



Securitex DENGEN Hi-Max 70

Catalogue and Specification



 To purchase the DENGEN Battery Charger please feel free to contact us at sales@securitex.com.sg or 67852171.



Note:

 As charging battery usually cause sparking when the cable positive and negative clip are introduce and hydrogen gas discharge, care must be taken to ensure that battery charging are carryout in well ventilated area. In Oil and Gas industries or shipyard environment extreme care must be taken when using external battery charger. Please consult your plant engineer for advice on the safe area for charging
