PDS3210B serials of Digital
Intelligent Sensor
Securitex/Promatic
PDS3210 Electronic Article Surveillance System is designed
and manufactured by a team of highly trained electronic
engineers in the field of security engineering. The system uses the
Radio Frequency technology to tags all merchandise thus allow the merchant with the ability to
prevent unpaid item from leaving the store without notice.
The PSD3210 while
prevent commodities from being stolen effective at the
same time it can help to built relationship between
customers and store owner. This system is designed to suits all
kinds of retail sites, such as supermarkets, AV stores,
clothing stores, bookstores, library, drug stores, game
arcade and any establishment that have an open shelf
business concept etc. This system can also be used to tags
on elderly in homes and children in child care centre. The Securitex/Promatic EAS system
was manufactured under the ISO9000 standard and carries
the CE certification as well.
The PDS3210 system c/w the following advantages:
- High sensitivity and very low false alarm rate
as the system adopted the 2nd generation DSP (Digital
Signal Processor) technology.
- Anti-disturbance from metal handcart, hand’s touch and
it can also be installed on gate with metal baffle
- It adopts filter technology and decrease noise circuit
technology.
- Two kinds of alarm tone---quick and slow, it also has
three kinds of volume---high, medium and low for you to choose according
to your needs and the environment noise level.
- It is also very convenient to install and calibrate.
- Performance is unique and novelty. The design is
very pleasing to the surrounding as the unit is
manufactured from metal structure thus it is very rugged, reliable
and highly durable.
Securitex PDS3210
How does EAS work.
Electronic Article
Surveillance system (EAS) is a kind of electronic anti-shoplifting system that can decrease shoplifting when
retail enterprise implement open-shelf sale this in-return
increase sales and profit. EAS system consists of
electronic sensors (transmitter and receiver), deactivator system and label or tag.
Electronic sensor that are located at store exit
and entrance transmitter (TX) will send a unique RF signal at certain frequencies
to a receiver (RX) which creates a "RF surveillance
zone" around the store exit/entrance.
When a product with an active label or hard
tag is moved past a this sensor surveillance area, the sensor
will detect this tags and sets off an alarm.
Radio Frequency (RF) is the most popular and common technology in
today EAS
system, it adopts Radio Frequency as Transmit and Receive
signal, the detection frequency ranges from 7.x~8.xMHz. The
advantage of RF EAS system is cost effective.
Intelligent Digital Identification Technology.
PDS3210 series of digital RF sensor using AD
transform technology sampling the simulative signal high-speed,
prosecuting computerized signal intelligent identification (CSDM)
label under noisy background. It is different from the
simple parametric technology that it only identifies the
spectrum and the functionary periods of label signal. At
the same time, it increase filter and decrease noise
circuit in these new technology compared with traditional EAS system.
With this new technology implemented in PDS3210 sensors it increase the sensitivity
but prevent low and false alarm at the same time.
Securitex/Promatic PDS3210-LCH system for library
environment and clubhouse equipment monitoring.
Securitex/Promatic
PDS3210-LCH is designed to track the movement of books and
media from leaving the library and club-houses without
proper registration and accountability.
Securitex/Promatic PDS3210-SDVR system integration with
Digital Video recording system.
Securitex/Promatic
PDS3210-SDVR has an added advantages above the competitors
system is because our system are also design to integrate
seamlessly with the store CCTV surveillance system, Thus
when the EAS system detected an unpaid item is taken out
of the store, the store digital video recording system
will starts to record the images of the entrances and
exit. This images can be later view to narrow down the
suspect.
Securitex/Promatic PDS3210-EC system used in the field of
elderly cared patient in homes.
Securitex/Promatic
PDS3210-EC can also be use in the field of human movement
monitoring application. In serve cases of senile dementia
patients, normally they will wonders of the premises
without the staff and doctors noticing them. At Securitex
our system will be able to alert the respective doctors,
nurses or caregivers when this patients wonder of the
premises. The system will be able to sent out a signal to
the caregivers and corrective action can be taken before
this patient wonders off and get lost.
Securitex/Promatic PDS3210-CC system
used in the child care environment.
Securitex/Promatic
PDS3210-CC can also be use in the child care centre to
monitor the movement of the children within the centre.
Many time children get lost when they wonder off the
premises without the teachers and attendance noticing
them. At Securitex our system will be able to alert the
respective centers attendance when this children play
nears the doors or when strangers try to bring the child
out of the centre . The system will be able to sent out a
signal to the caregivers and corrective action can be
taken before this child wonders off and get lost.
Digital Intelligent Radio
Frequency Sensor
System design and
specification
The PD3210 is designed to fits into all kinds of store
environment perfectly. It
has two kind of color (black, orange vein and silver gray
other colour can be produce as well).
|
Technological
parameter and specifications |
| Bandwidth |
7.7-8.7Mhz |
| Scan frequency |
162, 171, 180
and 189Hz (optional frequencies can be request as
well) |
| Signal Sampling rate |
21.8us |
| Inspection distance |
soft label 1.2 meters and Hard tag 1.5
meters |
| Detect speed |
0m/s |
| Optional Frequency |
8.2Mhz and 10.5Mhz |
| Alarm Volume |
High, Medium, Low (Can be adjusted) |
| Alarm Tone |
Quick and slow (Can be adjusted) |
| Dimension |
1650X304X85 (mm) |
| Optional Colour |
Black Orange Vein and Silver gray |
|
Hard
Tag Detacher
PD805 Detacher
The surface magnetic intensity
is >=4500Gs
Diameter：10cm
Height：4cm
Nd iron boron material of strong magnetic power is
used on the detacher magnetic core and
is suitable
to be use to detach all kinds of hard tags, CD/cassette
protector, bottle/cigarette protector
and so on...
Advantage: The
advantages of this detacher is that
the surrounding magnetic field produce
from this Detacher
is very weak and it won't influent the
performance of the
surrounding equipment such as credit
card, barcode reader, POS machine
etc....

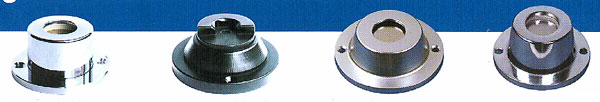

Standard Detacher
PD804 PD805 PD805A PD805B

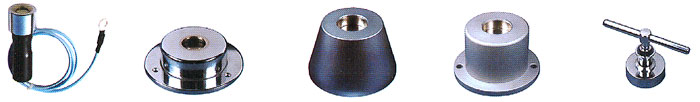

Strong Magnetic detache
PD806 PD804 PD804 PD804C PD801 Detacher Key
Soft label
(detection range up to 1.2 meters)
Securitex/Promatic can provide all kinds of EAS
soft label that can be stick to the
surface of merchandise that needs to
be protected. It can also be put
together with the packaging material of
merchandise so it can protect
merchandise conveniently.

Hard Tag
on merchandised
Soft-tag and label Hard Tag on laptop
Hard
tag (detection range up to 1.5 metres)
Securitex/Promatic also provides many kinds of
hard tags for repetitive use and need to
use special detacher to detach it from
the
merchandise.

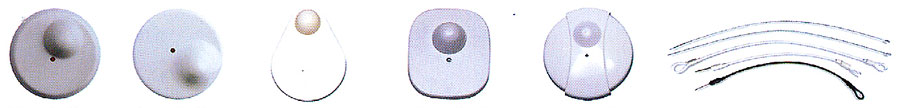

PT310 48mm
PT311 62mm
PT311 46mm
PT314 49X43mm
PT316 42mm
PT317 42mm
PT318 65mm
PT350 50mm
PT351 50mm
PT355 48X65mm
PT352 57X70mm
PT356 65mm PT701 Lanyard (work with hard tag)

CD Holder with tag

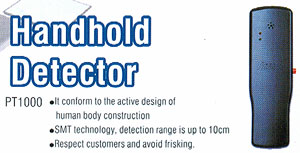

Handheld detector (body search)
Cigarette Protector
Patent
number in China: ZL 002 28129.5 Copyright number of
Software: 2001SR4663
To contact our sales and technical
department please call
65-67852171 or email:
sales@securitex.com.sg
Download EAS system catalogue for
management presentation
Page 1 &
Page 2 &
EAS catalogue
Note to all
retailer:
We welcome
retailer and business owner who want
to implement the EAS system but do not
have much knowledge on this system.
You can contact us at 67852171 or
email us at
sales@securitex.com.sg
our technical sales personnel will be
available to assist you in this area.
Feel free to contact us even if it is
for a single exit store request.
