SECURITEX RIB R50 (SUPER INDUSTRIAL SWING & SLIDE SYSTEM)versaille.gif (15454 bytes)





RIB R50 (single phase) & R60 (Tri-phase) SWING SYSTEM FOR INDUSTRIAL APPLICATION



DESCRIPTION

The RIB R50 is designed to operate very large doors or gates in applications in which standard actuators cannot be used, due to the massive weight, length, height and construction method. The R50 move the massive gate by mean of wheels on the static surface of the drive way to overcome the unevenness of static gate swing opening the special adjustment system optimizes ground adherence by automatically adjusting the pressure between the wheel and road.

During Power failure the massive gate can be operated manually, by the outer lever, then open the door/gate manually.

R TAKES ON THE HEAVY WEIGHTS R is a range of geared operator specially designed for installation on the end of the leaf on large swing gates.

The range includes 2 models: the R50 and R60.

The R60, the only one of its kind currently available on the market, can operate gate leaves weighing up to twelve tons. The heart of the R system is made of an indestructible power unit, enclosed by a casing featuring a neat and practical design. The unit contains an electric motor, speed reducer and rubber-coated drive wheels (1 wheel on R60 model). Each component is designed to guarantee maximum strength and functionality. The motor is ventilated and protected by thermal probe. All the mechanical components are oil-immersed to ensure maximum durability and the utmost reliability in all ambient conditions. A special adjustment system optimizes ground adherence by adjusting the pressure between the wheel and floor.

INSTALLATION Certain requirements must be met to allow the installation of the R50 and R60. The main door or gate structure must be solid and not prone to buckling. The floor must be solid and level within the operating radius of the door.

Following installation, maintenance is minimal. The casing, the mechanical engineering of the various components and the special anti-corrosion treatment protect the automation from humidity, dust and rust.

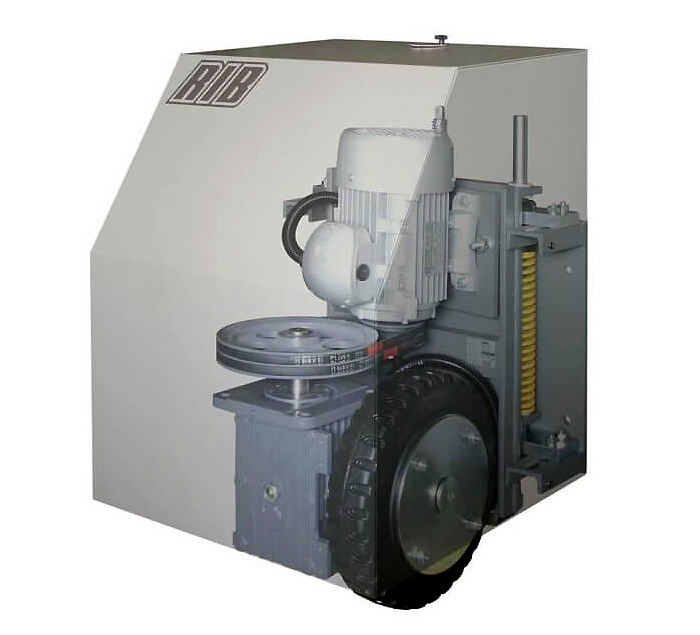

R50 & R60 image.

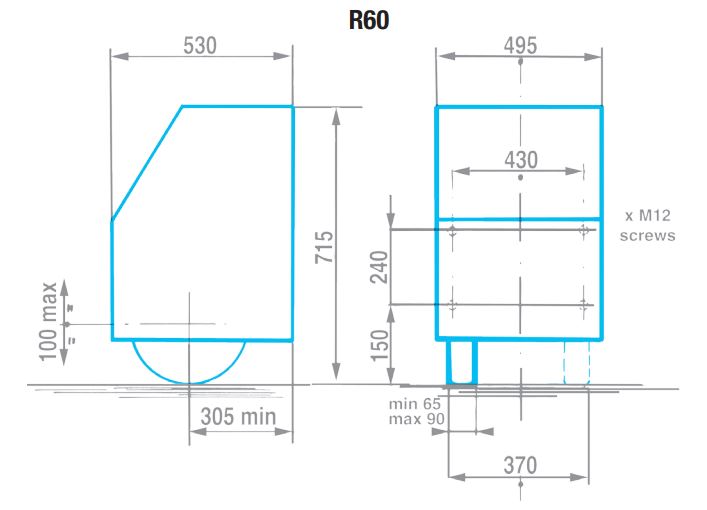

R50 & R60 External Dimension in (MM)

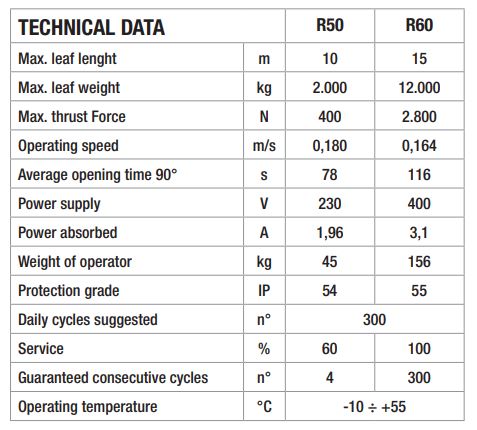

Technical Data

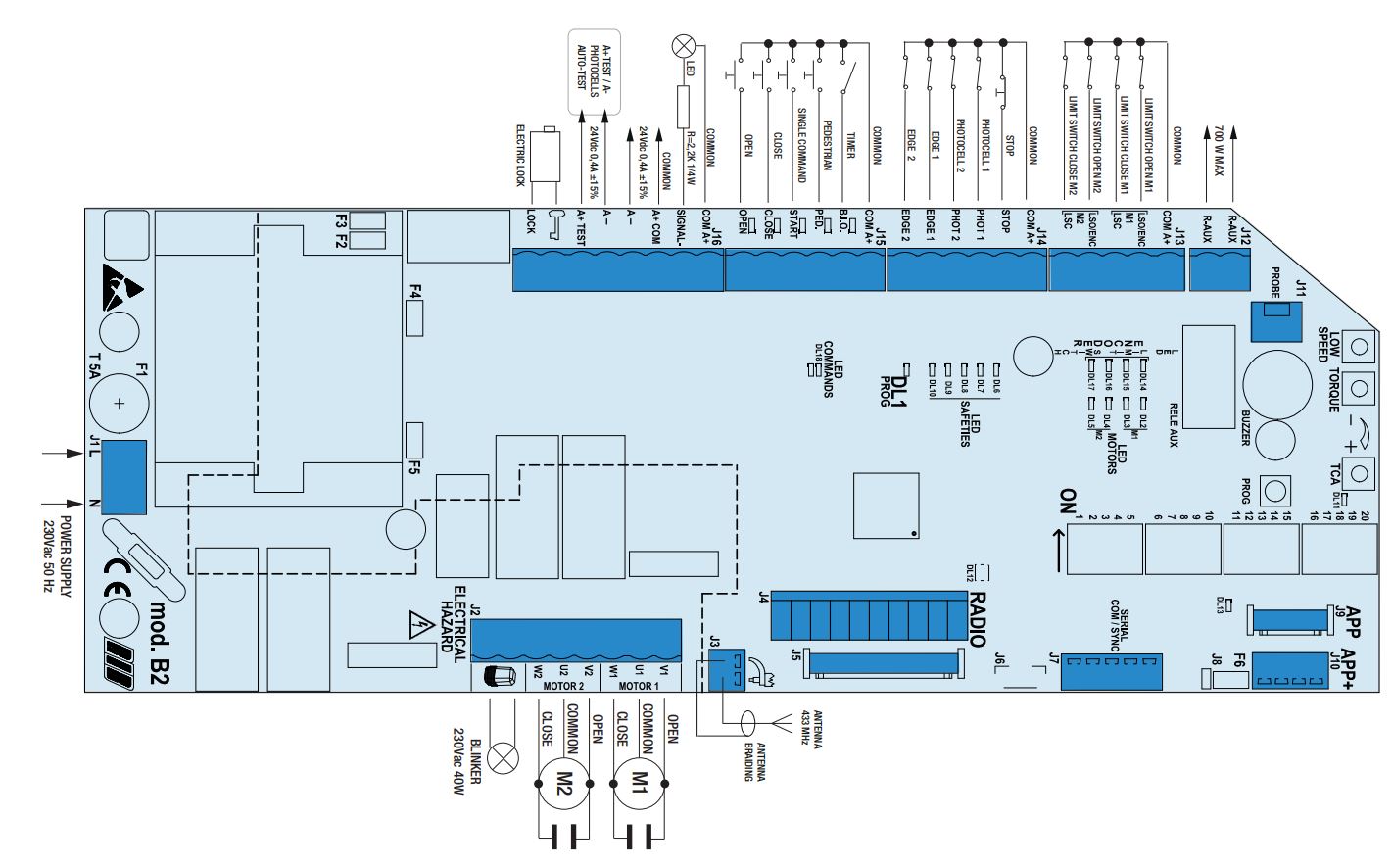

With the extreme heavy duty mechanical structure of the R50 & R60 operator  naturally the Electronic Control System will be the State of the Art type the B2.

Knowledge download

R50 & R60 installation Detail Manual

R50 & R60 installation Simple Manual

RIB R50 BROCHURE

RIB CHIAVISTELLO MECHANICAL BOLT SYSTEM

To purchase the above system, project discussion, knowledge conversation or even simply understanding of this system. Feel free to contact: Securitex Electronic Systems Engineering at 67852171, WHATSAPPS to 90213896 or e-mail us at sales@securitex.com.sg our System International Technical Director with more then 30 years in this industries will be able to advised you on your needs..
