RIB Auto gate system accessories

TRANSMITTER & RECEIVER

The remote control is supplied with a 12Vdc battery which must be replaced every 6 months.
The appliance incorporates a Power-saver function that prevents the battery from discharging accidentally. If the button is pressed and held for more than 8 seconds, the remote control switches off automatically and will reactivate thereafter in response to a fresh impulse.
A led indicator lights up whenever the control is activated.

Receivers can operate off 12Vac/dc or 24Vac/dc power supply.

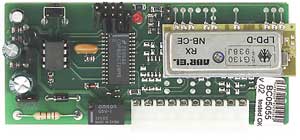

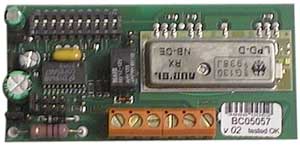

There is the option of a connector (p/n ACG5058) for use in conjunction with EURO and AQM control units, or screw terminals (p/n ACG5057) for use with other equipment.
The receiver is a single channel version allowing selection of the channel (A, B, C, D) and the type of contact (N.O or N.C.).
N.B. remote controls and receiver are supplied with dipswitches positioned normally at ON.
PROGRAMMING
Obtained by setting the 10 micro-switches (#) at ON or OFF according to the desired code.
The selection done on the receiver has to be repeated on the 10 micro-switches (#) of the transmitter.

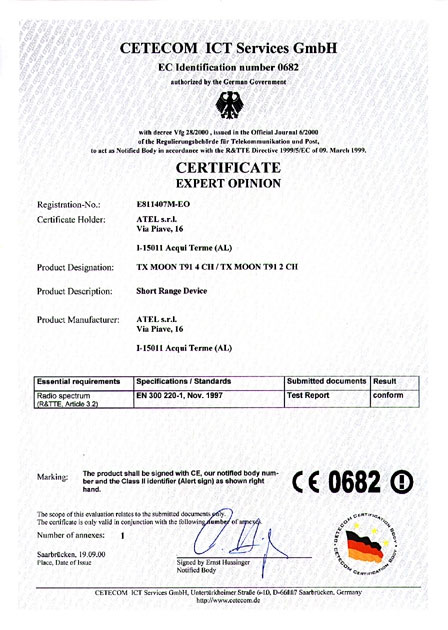

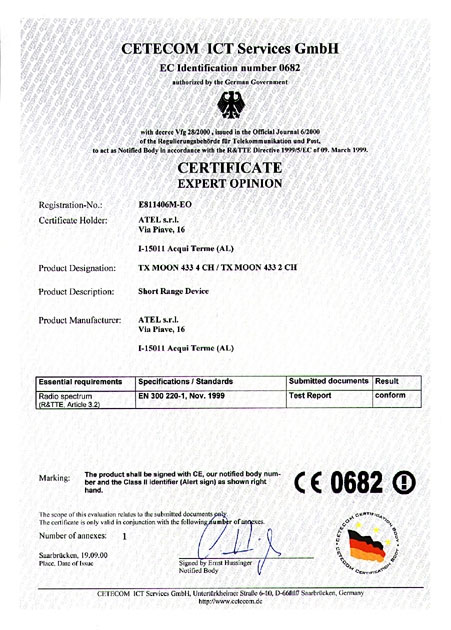

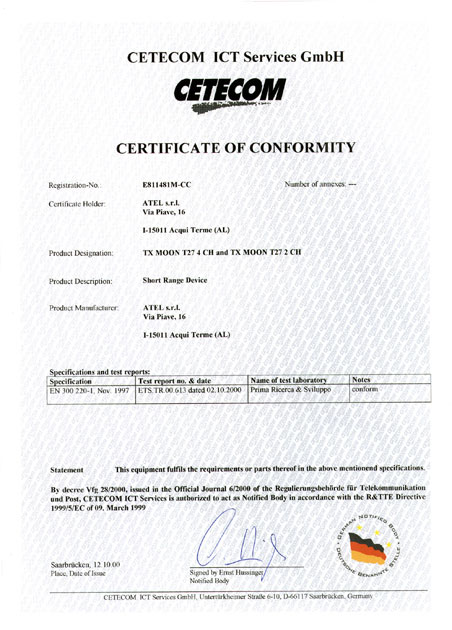

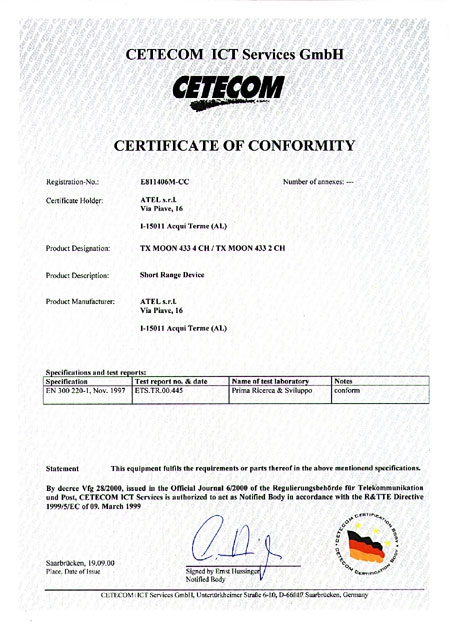

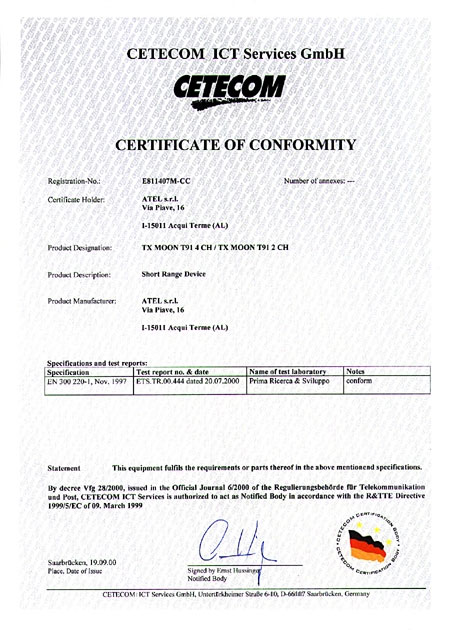

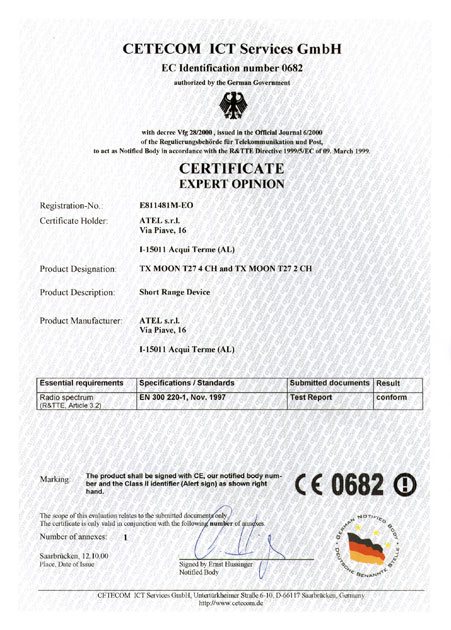

TRANSMITTERS MOON T433 and T91 CERTIFICATES

MOON 91 (30,925MHz)

MOON 433 (433,92MHz)

MOON 27 (26,995 MHz)

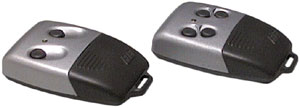

MOON 2-CHANNELS MOON 4-CHANNELS

RX433-A (with code and channel self-learning)

RX433 c/dip (with micro-switches)

TECHNICAL DATA	MOON
Power supply	12Vdc
Consumption during transmission	17mA
Selectable channels	2 - 4
Possible combinations	1024
Range under ideal conditions	160mt
Operating temperature	-20÷+70°C

TECHNICAL DATA	RX27-A	RX91-A	RX433-A
Power supply	12Vac/dc - 24Vac/dc
Reception frequency	26,995MHz	30,925MHz	433,92 MHz
Input impedance	52 ohm
Relay contact	0,5A 125V
Operating temperature	-10 ÷ +55°C

Technical Data	NORMAL 1-phase
Max boom length	6m
Average opening time	11s
No. cycles	1000-11s/2s

Easy to install, irreversible barrier with booms up to 6 m. Complete with electronic control panel and mechanical clutch. Available with standard, or articulated boom (hanging rack available).

To purchase the above system, simply call : Securitex Electronic Systems Engineering at 65-67852171or e-mail us at sales@securitex.com.sg our sale personnel will contact you.
