SECURITEX Roger Access Control Systems

Application Marine, Oil & Gas Industries etc

Industrial Access Control division

Securitex Electronic Systems Engineering carry the whole range of Roger Access Control Systems for the industries. Securitex Access Control Systems equipment division provide system designed and Installation for the Oil & gas, Pharmaceutical, Chemicals and even vessel application, schools, hotels and even customized premises etc. We also do access control system & cable testing, troubleshooting,  control system  termination etc. Below are the Roger Access Control Systems equipment and the documentation that we carry in stock. If you need this item you can contact us at sales@securitex.com.sg.

Please note that apart from using Roger equipment as access control application we also design and custom made special request system for our client. If you have such requirement please feel free to let us know.

Existing premises that use the ROGER system and need services and backup can contact SECURITEX for assistant.

As with all access control system, using the best ELECTROMAGNETIC LOCK devises will ensure that the door access system is secured safely.

The Roger system can also be use on the DROP BOLT system for added security.

 Model


 Description

 Download

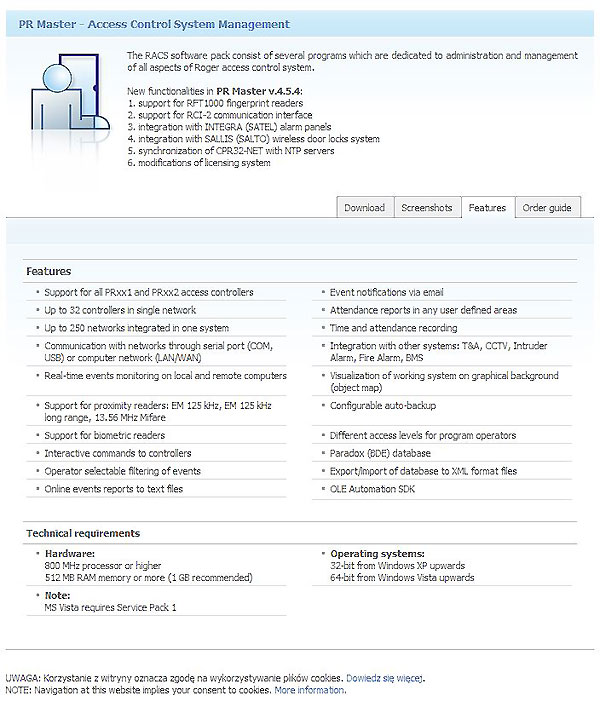

PR Master RACS4



PR Master-RACS Access Control System Management Software

The RACS software pack consist of several programs which are dedicated to administration and management of all aspects of Roger access control system.

New functionalities in PR Master v.4.5.4:
1. support for RFT1000 fingerprint readers
2. support for RCI-2 communication interface
3. integration with INTEGRA (SATEL) alarm panels
4. integration with SALLIS (SALTO) wireless door locks system
5. synchronization of CPR32-NET with NTP servers
6. modifications of licensing system

Detail

Documentation

PR402-PCB







PR402-PCB Advance Access Controller

PR402 access controllers may operate as standalone access control units or in integrated access control system with CPR32-SE network controller. In standalone mode PR402 autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer and time related functions are managed by built-in realtime clock. Access control system based on PR402 controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN (UT-4interface required).

Single-door access controller electronic module, built-in power supply with battery support, secondary supply output 12VDC/1A with over current protection, cooperation with two external access readers, power supply 18-22VAC, metal case for this module is offered separately (symbol: ME-1).

NOTICE: New access controller PR402DR has been designed as the successor of PR402-BRD access controller, therefore PR402-BRD shall be produced till the end of 2011 and then it shall be completely replaced be the PR402DR within Roger offer.

Datasheet (in-stock while stock last)

This controller is discontinued item.

Replace with PR402DR-BRD

PR402DR-BRD



PR402DR-BRD (Improved version-New)

PR402DR-BRD access controllers may operate as standalone access control units or in integrated access control system with CPR32-SE network controller. In standalone mode PR402DR-BRD autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer and time related functions are managed by built-in real time clock. Access control system based on PR402DR-BRD controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN (UT-4 interface required). Unit is equipped with power supply module and can operate with one or two readers.

Datasheet (in-stock)

PR102DR







PR102DR-BRD (Improved version-Single relay)

PR102DR-BRD access controllers may operate as standalone access control units or in integrated access control system with CPR network controllers. In standalone mode PR102DR-BRD autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer and time related functions are managed by built-in real time clock. Access control system based on PR102DR-BRD controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN.

Datasheet (in-stock)
PR302







PR302 indoor card and pin reader system

PR302 access controllers may operate as standalone access control units or in integrated access control system with CPR32-SE network controller. In standalone mode PR302 autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer and time related functions are managed by built-in realtime clock. Access control system based on PR302 controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN (UT-4 interface required).

Datasheet (in-stock)
PR301







PR301 indoor card and pin reader system

PR301 access controllers may operate as standalone access control units or in integrated access control system with CPR32-SE network controller. In standalone mode PR301 autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer. The difference between PR301 & 302 is that PR301 do not have built-in realtime clock thus no schedule function. Access control system based on PR301 controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN (UT-4 interface required).

Datasheet (in-stock)
PR311SE-G-B







PR311SE-G-B Version with keypad, dark grey case, blue keypad backlight.

PR311SE access controllers are designed as popular and low cost access control solutions. They can be used either in standalone or integrated access systems for up to 1000 users.PR311SE units are equipped with RS485 interface which can be used for both programming and online communication in network system. Access control system based on PR311SE controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN (UT-4 interface required).

Datasheet (in-stock)

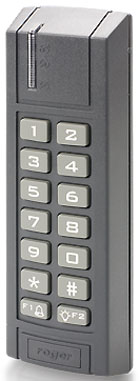

PRT12EM-G-B



PRT12EM-G-B - Version with keypad, dark grey case, blue keypad backlight.

EM 125 kHz outdoor proximity reader, connecting cable 0.5 m, silicone keypad with backlight, two function keys.

NOTICE! Functionality of PRT readers has been upgraded

New firmware offers following features:
* option to program control function for IN1 and IN2 lines in Wiegand and Magstripe modes. Now, IN1 and IN2 can be programmed to control any LED or internal buzzer.

* option to select between to modes of LED STATUS masking (for autonomic modes). Masking can be made by LED pulsing or switching off.
* option to activate door lock as long as card is put close to the reader.



Datasheet (in-stock)
CPR 32 SE CPR32-SE
CPR32-SE Network Controller is an optional Roger AccessControl System (RACS) component. Using CPR32-SE in the system expands its functionality with specific features.
When used with PRxx1 series controllers CPR32-SE allows for logging events and defining time-based access rights, as well as to realize global type functions such as
APB zones or alarm zones. In case of PRxx2 series controllers, CPR32-SE provides a global type functions only (APB, alarm zones).



Datasheet (in-stock)

Manual Installation

Manual User

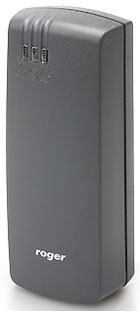

PRT62







PRT62 EM125 kHz reader

Miniature EM 125 kHz outdoor proximity reader, connecting cable 0.5 m.

NOTICE! Functionality of PRT readers has been upgraded:

New firmware offers following features:

* option to program control function for IN1 and IN2 lines in Weigand and Mag-stripe modes. Now, IN1 and IN2 can be programmed to control any LED or internal buzzer.

* option to select between to modes of LED STATUS masking (for autonomic modes). Masking can be made by LED pulsing or switching off.

* option to activate door lock as long as card is put close to the reader


Datasheet (in-stock)

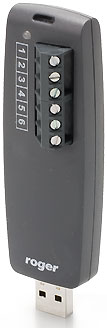

RUD-1-USB



RUD1-USB Interface

RUD-1 can be used as a standard communication interface for RACS system or as a dedicated programmer for PR access controllers or PRTxxEM and PRTxxMF series readers. RUD-1 is powered straight from the USB port and has built-in supply module which provides 12V voltage for programmed device.

Datasheet (In-stock)

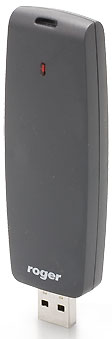

RUD-2-USB interface



RUD-2-USB EM125 Reader

RUD-2 is a miniature reader for EM 125 kHz proximity transponders. The reader is supplied from serial USB port which is also used for communication with the device. The RUD-2 can be used as card enroll reader for access control system or any other application which requires card reader. Card can be enrolled straight from the PR Master (version 4.3 is required) or using dedicated Roger Mini Reader application. For programmers who want to integrate RUD-2 with their systems the dynamic library DLL is available.

The RUD-2 reader can be connected directly to the controller's USB socket or using a cable with magnetic stand provided together with a reader.

RUD-2 can be used for:

  • as a reader for card enrolling to the RACS access system
  • as a reader for card enrolling through Roger Mini Reader application
  • as a reader used in third party applications using a DLL library provided

NOTICE! Improvements in the new version of RUD-2 reader:

  • card readout is stable, fast and independent of computer performance
  • installation of dedicated drivers is not required
Datasheet (in-stock)

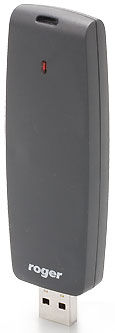

RUD-3-USB interface





RUD-3USB 13.56Mhz Mifare reader

RUD-3 is a miniature reader and writer for 13,56MHz ISO/IEC 14443A and Mifare standard proximity transponders. The reader is supplied from serial USB port which is also used for communication with the device. The RUD-3 can be used as card enroll reader for access control system or any other application which requires card reader. Card can be enrolled straight from the PR Master (version 4.4.6 or higher is required) or using dedicated Roger MiniReader application (version 1.2 or higher is required). RUD-3 can also provide a transponder programmer functionality, but in such cases RARC software (1.4 or higher is required) should be used. Roger company offers SDK programming package that enables a programmer to develop customized applications for a specific requirements. RUD-3 is a USB HID (Human Interface Device) class device and uses drivers  embedded in Windows XP, Windows Vista and Windows 7 operation systems.

The RUD-3 can be used in several different scenarios:

  • as a reader for card enrolling to the RACS access system,
  • as a reader for card enrolling through Roger MiniReader application,
  • as a reader and writer for card programming with RARC application,
  • as a reader and writer used in third party applications using a DLL library provided by SDK software.
Datasheet (in-stock)
RUD-3-Des v2

DESFire

RUD-3 DESFire Mini USB Reader

MIFARE

RUD-3 DES MIFARE DESFire USB Reader

Miniature, portable reader/writer for 13.56 MHz MIFARE proximity transponders. RUD-3 is supplied from USB port, which is also used for communication with the device. Depending on the product version RUD-3 can support 13.56 MHz MIFARE Classic and/or MIFARE DESFire transponders. Card code can be read/write to any sector of card memory. Transponders programming feature is provided through RogerVDM utility software (v.1.2.4 or higher).

RUD-3 DESFire can be used as universal card enroll reader (Roger MiniReader v.1.2 or higher required) or as administrator reader for RACS access control system (PR Master v.4.4.6 or higher ; VISO v.1.x) however, it can be also used in other applications or systems if integrated through available SDK.



Datasheet (in stock)

Manual

CE

UT2 Interface



UT-2 Serial Interface

The UT-2 operates as an electrical converter between RS232 and RS485 communication interfaces. It can be used for programming of single access controller or the whole net-work(sub-ystem) of access controllers connected RS485 bus. UT-2 device enables bidirectional data transmission between access control devices and management software installed at PC.

Datasheet (in-stock)
UT-2USB interface



UT-2 USB Interface

The UT-2USB is a cost-effective module, that allows you to connect your serial RS485. devices (bus) to computer using a USB interface. It features various transmission rates (half duplex) from 0 kbit/s to 115.2 kbit/s and doesn’t need any power supply. The UT-2USB is delivered with 1m USB A-B cable required for communication with PC. The connectivity with RS485 bus is carried out through screw terminals. Although the UT-2USB converter was designed and tested for Roger Access Control System (RACS), anyway it can be used with other applications requiring the high speed (half duplex) serial communications port however in such cases installer must perform adequate tests to ensure that UT-2USB will operate satisfactory in given application. UT-2USB interface can be used for programming of a single PR access controller or for management of a networked access system. Each adapter comes in a black plastic case intended for wall mounting and has two LEDs which indicate data flow through RS485 and one LED for power supply.

Datasheet (in-stock)
UT-4DR



UT-4DR interface

UT-4DR operates as TCP/IP communication bridge between RACS 4 access control system and managing computer. Interface can work either in local (LAN) or wide (WAN/Internet) computer network. Apart from its basic feature, UT-4DR offers four I/O lines which can be used as dual state inputs or outputs and controlled via web browser or TELNET protocol.

NOTICE! Using UT-4DR requires PR Master software in version 4.4.6 or higher.

Datasheet (in-stock)
XM-2DR-BRD I/O expander



XM-2DR-BRD I/O expander Electronic Module

XM-2DR is I/O expander dedicated to devices with RACS Clock&Data interface. The expander offers two NO/NC inputs and two relay outputs with 1,5/30VDC and 5A/230VAC max load respectively. Optionally, XM-2DR can be used as standalone device (without communication with master device) and then its outputs are controlled by means of voltage signals at respective inputs.

Datasheet (in-stock)
XM-8DR-BRD I/O expander XM-8DR I/0 expander Electronic Module

XM-8DR-BRD I/O expander is dedicated for systems using RACS Clock/Date protocol. Expander offers eight NO/NC inputs and eight relay outputs with single contact 1.5/30VDC rated. Optionally, XM-8DR-BRD can be used as standalone device (without communication with master device), when so, its outputs are controlled by signals applied to its inputs.

Datasheet (in-stock)
The above Roger Access Control Systems installation manual are available for download upon request. If you need any of this manual please feel free to email to sales@securitex.com.sg
