SECURITEX EBELCO ELECTROMAGNETIC LOCK

The one stop electrical locking system, electronic controllers for all kind of doors and gates

Since 1997



EBELCO

Extreme Quality            Extreme Security          Extreme Reliability


EBELCO Electromagnetic Lock.

The magnetic lock manufactured by EBELCO consists of a magnet mounted onto door jamb and a steel plate attached to the top of the door by a special anti vandal bolt and nut. The door will be strongly bonded when the magnet is energized and holding the steel plate. Instant release is possible when power supply is cut off making it most ideal in emergency escape situations.



Low power consumption and maintenance free.

Considered as most durable and with low power consumption, it is widely used for exit and entry control applications with no moving parts and little maintenance required. The magnetic lock will at all times provide a failsafe operation.



Entry and Exit Application.

The electromagnetic lock come in variety of model to suit various exit and entry applications. Mounting brackets formed an integral part in the installation of magnetic lock to both inward swing and outward swing doors.



Type of doors that can use the Electromagnetic Lock

Wooden door. Metal Door. PVC door. Automatic Sliding Door. Metal / Wooden swing gate. Side Pedestrian Gate. Glass Door with Aluminum Frame or Stainless Steel Frame, Server racks door. Containerized trucks door. Buses door. Trains doors etc.



Machine Guarding Application

In fabrication factories and automation industries where cutting, rotation, stamping machine etc are in operation, this machine can have enclosure we call guarding and this guarding can use the electromagnetic lock to secured. This prevent entry into this machine location when machine in operation.



Drawers and cabinet electromagnetic lock

When drawers, cabinets and lockers need to be secured, we do have miniature electromagnetic lock that can be use to secured this are.



Cold Room. Clean Room and Interlocking door using Electromagnetic Lock.

Electromagnetic Locks can be use in these area where the controls can be integrated to the existing facilities access control system and interlocking controllers.



Electromagnetic Lock (EM-LOCK) typical installation on frameless glass door.

During installation of the EM-lock to frameless glass door. care must be taken to ensure the right bracket is chosen and also the tolerance between the top of the glass door and the top glass panel or the wall above is within the allowable clearance. The figure 1 below show a typical installation method.



FIGURE 1





                                      DSU BRACKET INSTALL ON FRAMELESS GLASS DOOR                           DSU BRACKET LAYOUT ON THE GLASS DOOR

                  POWER SUPPLY UNIT                                  DSU EM-LOCK BRACKET                          ROGER CARD & PIN READER WITH CONTROLLER

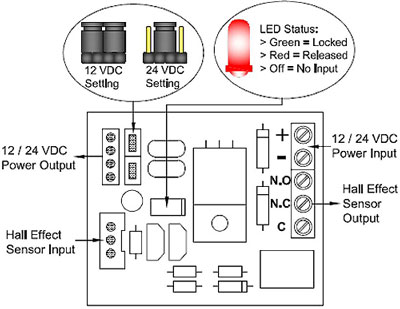

                                                                                                                                            HALL EFFECT SENSOR OUTPUT IS USE FOR INTEGRATING THE

                                                                                                                                           EM-LOCK TO THE 3RD PARTY DOOR OPEN AND CLOSE INDICATION

                                                                                                                                                PANEL FOR DOOR STATUS MONITORING.



SECURITEX HAND WAVE MOTION CONTACTLESS DOOR RELEASE SYSTEM (REX)



Standard, test and approval



FIRE DOOR HOLDER (FDH12-Dynamic).

SECURITEX Fire Door Holder is designed to installed on door to hold the fire door open during normal operation. During fire alarm activation, the Fire Indicator Board will sent a signal to the Fire Door Holder Control panel FDH12-Dynamic to activate and de-energized the FDH magnet to release the door close. FDH are always install together with a door closer to ensure once the FDH is de-energised the door will start closing.



TYPES OF EM LOCKS AND BRACKET

The EBELCO 300D, 600D & 1200D EM-Lock are 2 units EM-Lock constructed together for use on double leaves door.

300S EM. Lock 300 LED EM-lock 600D LED EM Lock 1200D EM Lock
600 LED Lock 600S EM Lock 600S EM Lock Reverse Door Holder DH1224 Cabinet EM-lock EM100S
The EBELCO 1200 and 1500 lbs EM-Lock are mostly use on area where Extreme Security are Call for.
1500 LED EM Lock 1500S EM Lock 1200S EM Lock 1200 LED EM Lock
The EBELCO SS400. SS800 and SS1200 Stainless Steel Version of the Electromagnetic Lock are use on outdoor application and in marine environment. Extremely reliable and robust construction
SS-400 Stainless Steel EM lock SS-800 Stainless Steel EM lock SS-1200 Stainless Steel EM lock   Mortice-600 EM Lock
L1 Bracket ZL-Bracket U1-Bracket LS-Bracket Z L Bracket Cover (EM600)

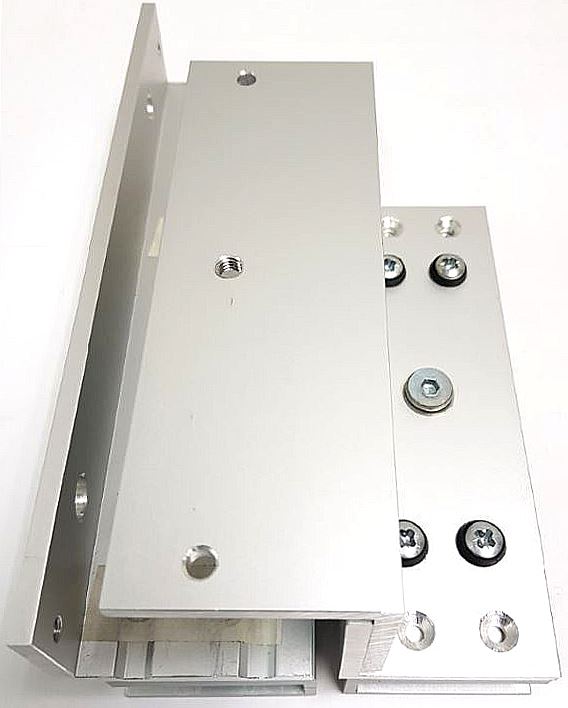

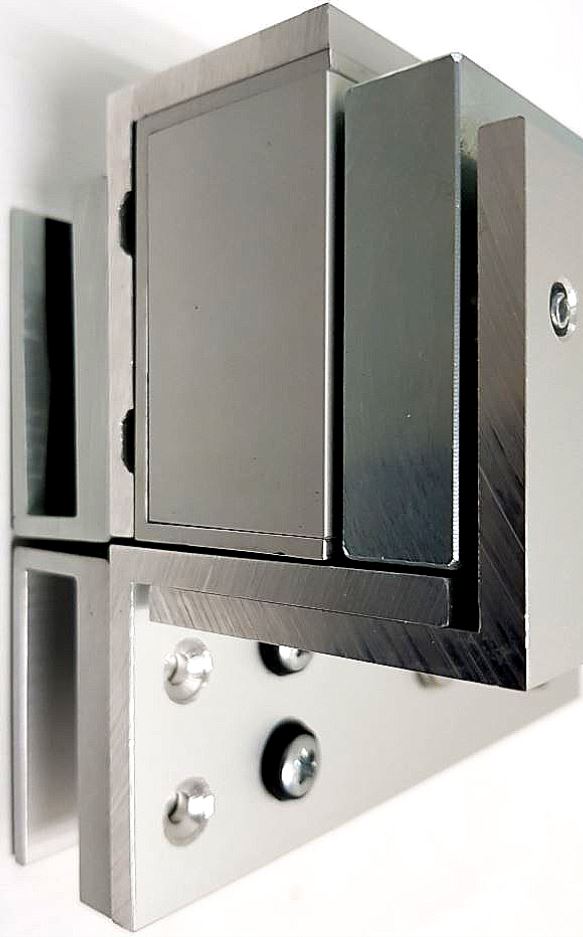

DSU 600 Bracket DSU-Bracket DSU 300 Bracket DSU for 1200LBS CUSTOM FABRICATE ONLY Z L 300 Bracket

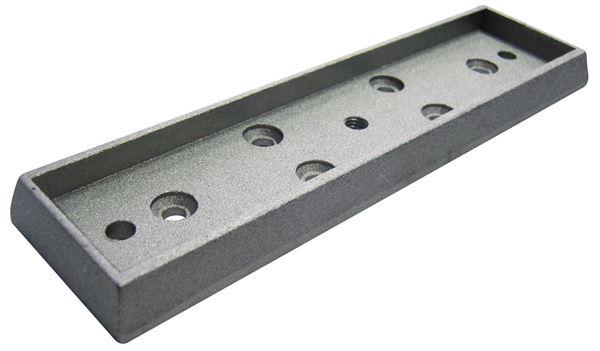

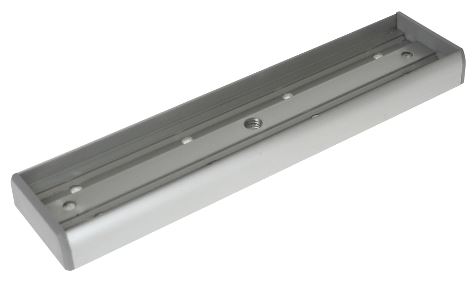

DB-100 Drop bolt DB-300 Drop bolt Armature Plate Housing Armature Plate Housing Z SS 1200 Bracket
  FIRE DOOR HOLDER AND BRACKETS




  DH1224 and DH2448 DH1224 floor mount DH1224 floor mount SECURITEX FDH12 DYNAMIC CONTROLLER

Door Access Application Industrial Application

EBELCO

APPLICATION

EBELCO EM Lock is been use on Glass. Wooden, metal doors, gate and automatic windows and roller shutters

EBELCO ELECTROMAGNETIC Lock can also be use on buses door. trains door and refrigerated containerized vehicle

EBELCO EM lock is also been use on machine that need to lock machine guards.

Electromagnetic Lock

Robust and reliable

Securitex

EBELCO ELECTROMAGNETIC Lock can also be use on Marine and Aviation environment

   SPECIFICATION

Model

Input voltage

Current draw

Holding force

Body Dimension (mm)

Mounting type

Armature size (mm)

Built-in

300-S

12VDC /24VDC

300mA/150mA

300 lbs

L170 X W35 X T21

Surface

L130 X W33 X T11

NIL

600-S

12VDC /24VDC

480mA/240mA

600 lbs

L250 X W42 X T25

Surface

L180 X W38 X T11

Terminal Block, Jumper selector

600-LED

12VDC /24VDC

480mA/240mA

600 lbs

L250 X W42 X T25

Surface

L180 X W38 X T11

Magnetic bond sensor. LED. NC/NO. Jumper selector

Mortice-600

12VDC /24VDC

480mA/240mA

600 lbs

L230 X W42 X T26

Concealed

L180 X W38 X T11

Reed Switch

1200S

12VDC /24VDC

420mA/210mA

1200 lbs

L266 X W67 X T39

Surface

L185 X W61 X T16.5

Terminal Block, Jumper selector

1200LED

12VDC /24VDC

420mA/210mA

1200 lbs

L266 X W67 X T39

Surface

L185 X W61 X T16.5

Magnetic bond sensor. LED. NC/NO. Jumper selector



EBELCO access control system service and worldwide support.

Customer who is using Ebelco Locking Systems can contact us at sales@securitex.com.sg for service and support. For customer that is not using Ebelco system can also contact us for support. 24 hrs support number 67852171 if you do not get a respond please email to sales@securitex.com.sg our support staff will get to you soonest.
