Standalone Single Door Access Control System.
today is faced with an increasing need to control access to an ever-expanding
variety of unsecured locations. Be it for the security of employees, the
protection of assets or the implied threat of lawsuits, access to areas such
as computer rooms, labs, storage facilities, accounting departments, wash
rooms and executive offices is now a must.
Unfortunately, up to now, the
high cost of an integrated access control system has put these areas beyond
the reach of most companies' budgets.
The straightforward, affordable solution to access control. Now you
can offer your customers the security and convenience of keyless entry,
combined with many of the features found only in costly and complex integrated
series installation is a complete, stand alone single door access control
solution to your customers needs
The servant access control
systems c/w the following features:

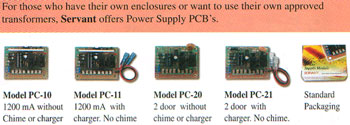

Works on 12 Vdc from AC/DC adapter
or backup power supply.
2 System Codes
4-digit codes, programmable
from the keypad
99 Individual Users
Every user has unique pin code

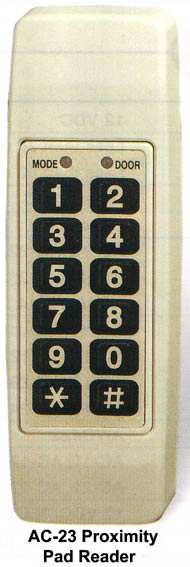

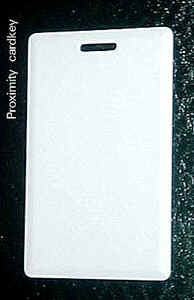

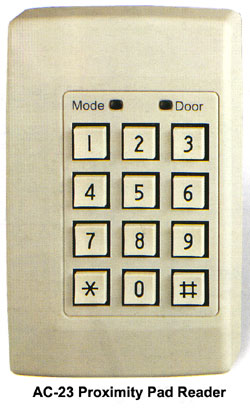

(AC-1x) or proximity card (AC-2x).
Three Modes of Operation
All the system codes, user
codes or user cards are acceptable
The bell button can be
programmed as door release button, all other codes and cards are still valid
Only 10 master users can
operate the system, PIN plus Proximity is obtainable in Night mode
Bell and Chime
Built-in bell button (*), Bell

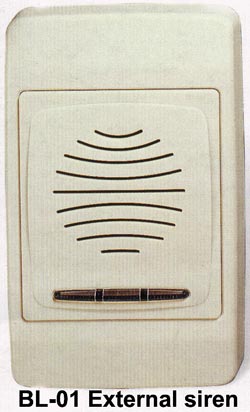

and Chime are obtainable from the optional BL-01.
Integral with tamper switch,
the optional BL-01 gives siren and outputs tamper signal if the cabinet cover
is removed. Siren time is programmable (1 to 9 minutes) from the keypad.
Protected from any
electromagnetic device, max 3.5 Amp
Optional metal cover is
All the settings are
programmable from the keypad, rewiring is not necessary
Only four-wire connection
Access Control System Manual (in PDF format; 191kb)
