Securitex Electronic Systems Engineering (Power supply division)



Industrial Application





SUPER-LITE BATTERY CHARGER AND ENGINE STARTER



SMART 450                                                                        STM-2460



A mobile Starter / Charger designed for the garage and fleet operator with modern-style metal casing.
Used as slow & fast charger and booster.
Equipped with timer for fast charging and auto stop purposes.
Selectable battery voltage range control. (12V & 24V)
Input and output breaker protection.
Variable and adjustable charging current control.
Fitted with rubber-tire wheels and handle for instant mobility.
Built-in MCB against overloads and polarity inversion.
Selectable charging current control.
Robust in design and maintenance free.
Easy to operate, reliable and economical.

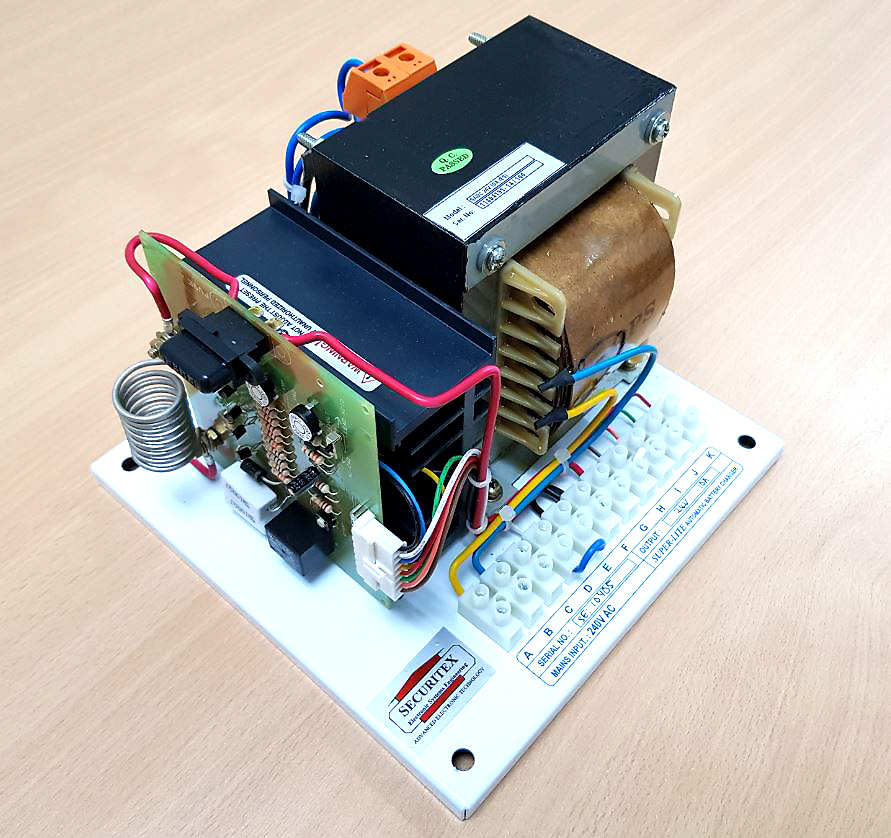

SECURITEX SUPER-LITE SABC ES-2410

TO VIEW LARGE IMAGE CLICK ON THE ABOVE IMAGE



SABC-ES2410 BROCHURE & MANUAL



Download specification click here.



SUPER-LITE SABC-1210 12V10A (Panel Mount Charger) Compact Series

General Data:
Rated Supply Voltage
240V + / - 10% 50Hz.
Battery Type
Nickel Cadmium Battery.
Lead Acid Battery.
Battery Voltage
DC 12V, 24V batteries.
Boost Charge Voltage for 12V / 24 V Batteries
Nickel Cadmium - 15 ~ 15.5 Vdc / 30 ~ 31 Vdc.
Lead Acid Battery - 14.5 ~ 15 Vdc / 29 ~ 30 Vdc.
Float Charge Voltage for 12V / 24 V Batteries
Nickel Cadmium Battery - 14.25 Vdc / 28.5 Vdc.
Lead Acid Battery - 13.75 Vdc / 27.5 Vdc.



Charging Current: Maximum charging current is limited to 5A and 10A respectively.
Mounting: Metal bracket fabricated from heavy gauge steel with epoxy finishing.
Designed for vertical mounting to obtain good conventional cooling.
Application:
Suitable for Standby Generator Set battery charging.
Control Features
Electronics Current Limiting.
Boost Charging facility.
Auxiliary Trickle Charging facility.
Incorporated with Rectifier Failure Relay



Download Specification click here



Download Systems manual click here



SUPER-LITE STM 2410 / STM 2420 LEAD ACID BATTERY CHARGER

SUPER-LITE Lead-Acid Battery Chargers are designed to cater for high volume battery charging of up to 9 pieces of 12V batteries or 18 pieces of 6V batteries connected in series. This is made possible with the use of multiple voltage and current selections to provide various combinations of charging conditions to suit individual requirement.

Standard models are supplied in heavy gauge steel casing complete with epoxy finishing which comes in two different designs of Fixed and Multiple voltage / current selections. This charger is highly robust and extremely suitable to be used in industrial environment, oil and gas industries and shipbuilding industries to charge standby batteries. In place where power outage is very common, SUPER-LITE will ensure the spare battery will be fully charge and is ready to be use. Due to the high charging capacity this charger will charge-up even the most drained out battery in a very short time.




Feature

Rated Supply Voltage

Charging Current

  220~240Vac 50Hz

  Maximum  - 5A, 10A and 20A





Battery Type

Battery Arrangement

  6V and 12V Lead Acid Batteries

  Series connection only





Number of Batteries

Enclosure

  6V battery - 1 to 18 pieces (maximum)

  High quality steel plate with epoxy powder coated finishing

  12V battery - 1 to 9 pieces (maximum)







Charging Voltage

Safety Features

  Fixed range -  12V and 24V

  Fast blow glass fuse

  Multiple range - 6V ~ 48V or 96V

  MCB over current protection

                           12V ~ 24V or 108V





Application



  Suitable for automobile lead acid battery charging

Model and Specification

SECURITEX SUPER-LITE Automotive Lead Acid Battery Charger Series



Model

Charging Voltage (VDC)

Charging rate (A)

Dimensions (mm) H X W X D

Type

Weight (Kg)

STM 1205

12V

5A

120 X 160 X 220

A

3.0

STM 1210

12V

10A

120 X 160 X 220

A

4.5

STM 2410

12V or 24V

10A

160 X 240 X 270

B

8.0

STM 2420

12V or 24V

20A

300 X 340 X 330

C

16.5

STM 4810

6V to 48V

10A

300 X 340 X 330

D

16.5

STM 4820

6V to 48V

20A

300 X 340 X 330

D

22.0

STM 9610

6V to 96V

10A

300 X 340 X 330

D

25.0

STM 10810

12V to 108V

10A

300 X 340 X 330

D

26.5

SE715

SE915


Battery Charger
Engine Starter
