The IP-EWST offers voice-quality Intercom function over TCP/IP based networks. Designed specifically to integrate seamlessly into a new or existing LAN / WAN infrastructure, the IP-EWST is capable of hundreds of stations, fulfilling a large variety of applications including commercial, industrial, and residential access control; general security, office, and institutional intercom / paging, and many more.
Features:
  • Unlimited system size
  • Compatible with all Aiphone LEF and IE series door stations.
  • Compatible with Aiphone AH-108 or any 8 ohm speaker
  • Works with standard wired and wireless networks (LAN/WAN)
  • Digital audio recording and playback capability

IP Ethernet Intercom/ Pager OEM board 2.0 2 or 3 wire interface/relay for call station Power over Ethernet (PoE)

Description: The IP Ethernet Intercom OEM module is designed for OEMs or integrators that need to embedded network audio communications over Ethernet or the Internet.

Features:

  • Small design 92mm x 77mm x 17mm
  • 10/100M Ethernet
  • Flash upgradeable
  • Local and remote interfaces for mic / speaker
  • 3 User I/O Pins
  • On-board interface to 2 or 3 Wire Call Station
  • On-board relay for door / gate access control
  • Power over Ethernet (PoE) IEEE 802.3af compliant
  • Requires External 2 or 3 wire Call Station (not included)
  • Requires PoE or external supply of 7.5-9VDC or 5VDC (300mA)(Injector and Power        Supply not included)
  • Includes TalkMaster PC Software
  • Optional built-in 2-Port Ethernet Switch available.

  • IP Intercom Extension Call Station 2 wire

    Description: Aiphone External Call Station with microphone and speaker for use with EWST IP Intercom units.

    These units must be used in conjunction with a GC-IPIC-EWST-xxx unit

    Features:
  • Brushed aluminum face plate
  • Green LED to show unit is active
  • Provides a sleek, professional look with no exposed wires
  • Excellent for use in a door entryway, vestibule, meeting room, classroom or any public area
  • Flush mounts in 2-gang electrical box
  • Wires into GC-IPIC-EWST-xxx model using standard 2-conductor cable, non-twisted, 22AWG or 18AWG (not supplied).

  • IP Intercom Vandal Resistant Call Station

    Back Box for vandal Resistant Call Station
    Description: Quam correctional grade analog 2/3 wire Call Station unit. Vandal resistant, weather resistant, external Call Station with pushbutton microphone and speaker. Ideal for external use near a door or gate. For use with EWST IP Intercom units.

    These units must be used in conjunction with a GC-IPIC-EWST-xxx model

    Features:
  • 11 Guage brushed stainless steel, plus security screen speaker protection
  • Designed for Correctional and other security applications
  • Moisture resistant speaker and microphone
  • Flush mounts in standard 2-gang electrical box
  • 1" x 8-32 "Button Head Pin-in-Hex" Security Screws with special tool supplied
  • Special hardened "Backer Box" available for surface mount applications

    Description: The Back Box for the Quam Vandal Resistant Call Station provides a box for surface mounting when flush mounting is not available. The back box has four sliding tabs that accept the vandal resistant screws that come with the Quam Call Station. It also has four mounting holes for surface mounting, and a large cut out in the back so that positioning over incoming wiring will not be a problem.

    Features:

  • Cold Rolled Steel .060 thick
  • Attractive White Baked Epoxy Hybrid Finish
  • Accepts GC-IPIC-DOOR-QM4 Door station
  •
  • IP Ethernet TalkMaster Intercom LE Software included with purchase of IP intercom units PC windows

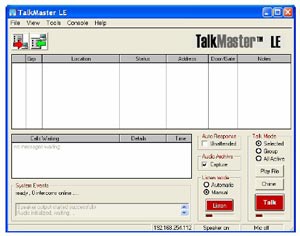

    TalkMaster Software

    Description: The TalkMaster Software is included with all purchased units. TalkMaster allows you to use the PC as a master station and/or to configure your IP Intercom units.
    Features:
  • Audio access and management of IP Intercoms
  • Selective or Master call to page stations
  • Master control and auto detection of stations
  • Utilizes PC microphone and speaker
  • International language support
  • Remote Door Release
  • Audio file playback (WAV)
  • Integrated Audio Recorder for logging
  • Supports Multiple Console operation
  • ActiveX Software available for custom applications

  • Aiphone IP-EWST: IP Addressable Intercom Adaptor

    Unit Description

    The IP-EWST offers voice-quality Intercom function over TCP/IP based networks. Designed specifically to integrate seamlessly into a new or existing LAN / WAN infrastructure, the IP-EWST is capable of hundreds of stations, fulfilling a large variety of applications including commercial, industrial, and residential access control; general security, office, and institutional intercom / paging, and many more. Power over Ethernet (PoE) capability is also supported (IP-EWST-POE only), allowing greater installation flexibility for both new and retrofit applications.

    Hardware Features

    IP-EWST Intercom over Internet is a cost effective PC based communication it consist of one adaptor per station and unlimited system size. It is Compatible with all Aiphone LEF and IE series door stations. Compatible with Aiphone AH-108 or any 8 ohm speaker. Works with standard wired and wireless networks (LAN/WAN). Digital audio recording and playback capability. Field Upgrade OS using internal Flash Memory. Relay output for remote release (N/O and N/C) with programmable timer. Hands-free listen at sub end. Duplex or push-to-talk operation to door/sub station. Keyboard or mouse control. Call forwarding to additional PC’S. Call queuing. Group or all page capability. Audio and visual call notification. Transfer to back-up PC. Customizable audio notification (using WAV file)

    Three sets available. Each set features a different quantity of door stations and adaptors. All sets include the appropriate software and power supplies for system functionality:

    IP-EWST-1 IP-EWST-4 IP-EWST-8
    Model Qty :LE-D 1, IP-EWST 1 Model Qty: LE-D 4, IP-EWST 4 Model Qty: LE-D 8, IP-EWST 8

    Software Features includes:

    Duplex or Push-To-Talk operation to door/sub station. Keyboard or mouse control. Fail forward calling to additional PC'S. Call Queuing. Group or all page capability. Audio and visual call notification. Transfer to back-up PC. Customizable audio notification (Using WAV file)

    Hardware Specifications P-EWST Intercom over Intercom
    Input Voltage: IP-EWST – 7.5-9VDC, 300mA, use included power supply

    Software System Requirements

    Compliant: IP-EWST-POE – IEEE 802.3af compliant For optimum performance, TalkMaster™ requires a minimum of the following:

    Operating System: Microsoft Windows® 98SE, Windows ME, Windows NT® (SP6), Windows 2000, or Windows XP. Processor: 750MHz or faster. Memory: 128MB of RAM (256MB recommended). Sound Card: Windows supported sound card (with speaker and microphone)

    Network Interface: 10/100 Base-T Ethernet (Auto detection) RJ-45
    IP Assignment: Static or Dynamic via DHCP
    Hardware Protocols TCP, UDP, IP, ARP, ICMP, Ethernet MAC
    Transport Bandwidth: »80kbps per TCP/IP session
    LED Indicators: Active, Link, Talk, Reserved / Programmable IP-EWST Intercom over the internet

    Product Name: a. IP-EWST. (Also IP-EWST-POE). b. IP-EWST/EWSTPOE. (Cover removed). c. IE Door Stations LE-D LE-DA. d. LS-NVP/B LE-SS LE-SSR AH-108 LE Sub Stations

    Audio Resolution: WAV, PCM-8 and uLAW-16 bit
    Audio Sample Rate: 8kHz
    Audio Buffers: 4kb transmit and receive
    Audio Latency: Target delay < .5 sec. Typical delay » .3 sec.
    Output Amplification: Maximum 2W @ 4Ω. Actual determined by sub
    Operating temperature: 32°F to 158°F (0°C to 70°C)
    Dimensions: 6-3/4˛H x 4-1/8˛W x 1-3/4˛D

    Literature Available

    IP-EWST Product Brochure (1M) AH-108 8 ohm Horn Speaker
    IP-EWST and IP-EWST-POE Installation Manual EL-9S Door Strike Spec Sheet
    LE- Door Stations Spec Sheet LS-NVP/B Vandal Proof Sub Station Spec Sheet
    LE-D, LE-DA Door Station Instructions LS-NVP/B Vandal Proof Sub Station Instructions
    LE-DL Door Station Instructions LE-SS/LE-SSR 2-Gang Stainless Steel, Vandal and Weather Resistant Subs Spec Sheet
    IE Door Station Instructions LE-SS/LE-SSR 2-Gang Stainless Steel, Vandal and Weather Resistant Subs Instr
    Brass Door Station Covers Spec Sheet SBX-2G Surface Mount Box for LE-SS & LE-SSR Spec Sheet
