IP Intercom Extension Call Station 2
wire
|
Description: Aiphone External Call Station with microphone and
speaker for use with EWST IP Intercom units.
These units must be used in conjunction with a GC-IPIC-EWST-xxx unit
Features:
Brushed aluminum face plate
Green LED to show unit is active
Provides a sleek, professional look with no exposed wires
Excellent for use in a door entryway, vestibule, meeting room,
classroom or any public area
Flush mounts in 2-gang electrical box
Wires into GC-IPIC-EWST-xxx model using standard 2-conductor cable,
non-twisted, 22AWG or 18AWG (not supplied).
|
IP Intercom Vandal Resistant Call
Station
|
  Back
Box for vandal Resistant Call Station
|
Description: Quam correctional grade analog 2/3 wire Call
Station unit. Vandal resistant, weather resistant, external Call
Station with pushbutton microphone and speaker. Ideal for external
use near a door or gate. For use with EWST IP Intercom units.
These units must be used in conjunction with a GC-IPIC-EWST-xxx
model
Features:
11 Guage brushed stainless steel, plus security screen speaker
protection
Designed for Correctional and other security applications
Moisture resistant speaker and microphone
Flush mounts in standard 2-gang electrical box
1" x 8-32 "Button Head Pin-in-Hex" Security Screws with special
tool supplied
Special hardened "Backer Box" available for surface mount
applications
|
Description: The Back Box for the Quam Vandal Resistant
Call Station provides a box for surface mounting when flush
mounting is not available. The back box has four sliding
tabs that accept the vandal resistant screws that come with
the Quam Call Station. It also has four mounting holes for
surface mounting, and a large cut out in the back so that
positioning over incoming wiring will not be a problem.
Features:
Cold Rolled Steel .060 thick
Attractive White Baked Epoxy Hybrid Finish
Accepts GC-IPIC-DOOR-QM4 Door station
|
|
|
|
IP Ethernet
TalkMaster Intercom LE Software included with purchase of IP intercom units
PC windows

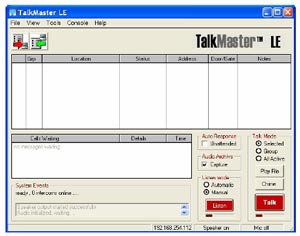

TalkMaster Software
|
Description: The TalkMaster Software is included with all
purchased units. TalkMaster allows you to use the PC as a master
station and/or to configure your IP Intercom units.
Features:
Audio access and management of IP Intercoms
Selective or Master call to page stations
Master control and auto detection of stations
Utilizes PC microphone and speaker
International language support
Remote Door Release
Audio file playback (WAV)
Integrated Audio Recorder for logging
Supports Multiple Console operation
ActiveX Software available for custom applications
|
|

Aiphone IP-EWST: IP Addressable Intercom Adaptor
Unit Description
The IP-EWST offers voice-quality Intercom function over
TCP/IP based networks. Designed specifically to integrate seamlessly into a
new or existing LAN / WAN infrastructure, the IP-EWST is capable of hundreds
of stations, fulfilling a large variety of applications including
commercial, industrial, and residential access control; general security,
office, and institutional intercom / paging, and many more. Power over
Ethernet (PoE) capability is also supported (IP-EWST-POE only), allowing
greater installation flexibility for both new and retrofit applications.
Hardware Features
IP-EWST Intercom over Internet is a cost effective PC based
communication it consist of one adaptor per station and unlimited system
size. It is Compatible with all Aiphone LEF and IE series door stations.
Compatible with Aiphone AH-108 or any 8 ohm speaker. Works with standard
wired and wireless networks (LAN/WAN). Digital audio recording and playback
capability. Field Upgrade OS using internal Flash Memory. Relay output for
remote release (N/O and N/C) with programmable timer. Hands-free listen at
sub end. Duplex or push-to-talk operation to door/sub station. Keyboard or
mouse control. Call forwarding to additional PC’S. Call queuing. Group or
all page capability. Audio and visual call notification. Transfer to back-up
PC. Customizable audio notification (using WAV file)
Three sets available. Each set features a different
quantity of door stations and adaptors. All sets include the appropriate
software and power supplies for system functionality:
|
IP-EWST-1 |
IP-EWST-4 |
IP-EWST-8 |
|
Model Qty :LE-D 1, IP-EWST 1 |
Model Qty: LE-D 4, IP-EWST 4 |
Model Qty: LE-D 8, IP-EWST 8 |
Software Features includes:
Duplex or Push-To-Talk operation to door/sub station.
Keyboard or mouse control. Fail forward calling to additional PC'S. Call
Queuing. Group or all page capability. Audio and visual call notification.
Transfer to back-up PC. Customizable audio notification (Using WAV file)
|
Hardware Specifications |
P-EWST
Intercom over Intercom |
|
Input Voltage:
IP-EWST – 7.5-9VDC, 300mA, use included power supply |
Software System Requirements
|
|
Compliant:
IP-EWST-POE – IEEE 802.3af compliant |
For optimum
performance, TalkMaster™ requires a minimum of the following:
Operating System:
Microsoft Windows® 98SE, Windows ME, Windows NT® (SP6),
Windows 2000, or Windows XP.
Processor: 750MHz or faster.
Memory: 128MB of RAM (256MB recommended).
Sound Card:
Windows supported sound card (with speaker and microphone) |
|
Network Interface: 10/100 Base-T
Ethernet (Auto detection) RJ-45 |
|
IP Assignment: Static or Dynamic
via DHCP |
|
Hardware Protocols TCP, UDP, IP,
ARP, ICMP, Ethernet MAC |
|
Transport Bandwidth: »80kbps per
TCP/IP session |
|
LED Indicators: Active, Link,
Talk, Reserved / Programmable |
IP-EWST Intercom over the internet
Product Name: a.
IP-EWST. (Also IP-EWST-POE).
b.
IP-EWST/EWSTPOE.
(Cover removed). c.
IE Door Stations LE-D LE-DA.
d.
LS-NVP/B LE-SS LE-SSR AH-108
LE Sub Stations |
|
Audio Resolution: WAV, PCM-8 and
uLAW-16 bit |
|
Audio Sample Rate: 8kHz |
|
Audio Buffers: 4kb transmit and
receive |
|
Audio Latency: Target delay < .5
sec. Typical delay » .3 sec. |
|
Output Amplification: Maximum 2W
@ 4Ω. Actual determined by sub |
|
Operating temperature: 32°F to
158°F (0°C to 70°C) |
|
Dimensions: 6-3/4˛H x 4-1/8˛W x
1-3/4˛D |
Literature Available
The above information is the copyright material of Aiphone
Corporation - All rights reserved.
|
