Securitex CCTV system




Everfocus 16-channel Duplex Digital Video Recorder

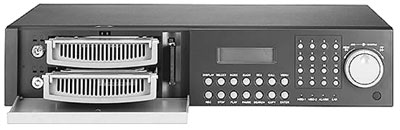

The new EDSR-1600 (16-channel) digital video recorders offer all digital video recording benefits and are easy to install and operate like a custom VCR.  Moreover, the 16 channel devices are the first Digital Video Recorders with an integrated 16x4 basic matrix function.  Existing multiplexer can be connected via a switch output.  Alarms are managed via external alarm inputs and outputs. The advantages of digital recording are obvious. The constant superior quality up to DVD resolution allows a detailed recognition during image evaluation. The recorded images are archived on exchangeable hard disks; alternatively, single images and image sequences can be stored on a Compact Flash card and can be evaluated via free downloadable players (e.g. QuickTime) on a standard PC.  For flexible and individual data evaluation of hard disk out of EDSR series' digital video recorders via local PC, the Hard disk Reader EPR 100 has been developed.  It is connected to the PC via the USB port; the included driver software allows easy installation.  Data evaluation of single images, video streams and multiscreen sequences is possible through search criteria such as time/date, hard disk segment and event.  For further evaluation, all data can be archived and managed locally.

EDSR-1600 can operate as easily as an analog time lapse VCR.  The Jog & Shuttle function allows up to 600-x forward and reverse playback without any image interferences, as well as single image playback.  Optionally, both DVR can be operated via the RS-232 interface or an infrared remote control.



System Specification

Video format: PAL / CCIR
Display format: 1, 4, 6, 7, 8, 9, 10, 13, 16 multiscreen, Picture in Picture, 2x digital zoom (live and playback mode), duplex mode
Video input:

16 camera inputs 1 Vp-p composite PAL, BNC, automatic 75 Ohm termination

Video output:

16 loop-through video outputs 1 Vp-p at 75 Ohm, BNC

  1 main monitor output, 1 Vp-p at 75 Ohm, BNC
  1 S-video output mini DIN, for main monitor
  1 call monitor output, 1 Vp-p at 75 Ohm, BNC
  4 matrix monitor outputs, 1 Vp-p at 75 Ohm, BNC
Video compression: 6-step M-JPEG
Hard disk storage: 2 x 3,5" IDE "hot swap" HDD
Playback rate 0,1 ~ 50 IPS
Recording resolution: 720 x 576
Recording rate: 0,1 ~ 50 IPS

Recording modes:

continuous, timer, alarm and motion recording

Playback search: by date / time or event
Video loss detection:   Yes
Event log:                  yes
Video pause: yes
Motion detection: 14 x 10 grids per camera with adjustable sensitivity
Alarm input: 16 alarm inputs, 1 alarm reset input
Alarm output: 1 alarm relay output
Audio input: 2 mono inputs, cinch
Audio output:   2 mono outputs, cinch
Setup: on-screen display

Control:

Front panel, IR remote control, RS-232, network, RS-485 keyboards KS KBJ and KS KBK
Timer: Max. 12 different timer periods per week
Title: 12-characters title generator for each camera
Image export:    Compact Flash, network
Ethernet: RJ45, 10 MBit interface
RS-232  9-pin Sub-D for remote control
Watchdog function:  yes
Password protection:  for menu and record function
Power source: 100 ~ 240 V AC
Power consumption: 60 W max
Operating temperature:   0C ~ +40C
Dimensions: 19", 2 HU, 430 (W) x 88 (H) x 300 (D) mm
Weight:  7,3 kg
