SECURITEX GEM ELECTROMAGNETIC LOCK

The one stop electrical locking system for all kind of doors and gates




GEM Electromagnetic Lock.

The magnetic lock manufactured by GEM consists of a magnet mounted onto doorframe and a steel plate attached to the top of the door. The door will be strongly bonded when the magnet is energized holding the steel plate. Instant release is possible when power supply is cut off, making it most ideal in emergency escape situations.



Low power consumption and maintenance free.

Considered as most durable and with low power consumption, it is widely used for exit and entry control applications with no moving parts and little maintenance required. The magnetic lock will at all times provide a failsafe operation.



Entry and Exit Application.

The electromagnetic lock come in variety of models to suit various exit and entry applications. Mounting brackets formed an integral part in the installations of magnetic locks to both inward swing and outward swing doors.



Electromagnetic Lock (EM-LOCK) typical installation on frameless glass door.

During installation of the EM-lock to frameless glass door. care must be taken to ensure the right bracket is chosen and also the tolerance between the top of the glass door and the top glass panel or the wall above is within the allowable clearance. The figure 1 below show a typical installation method.

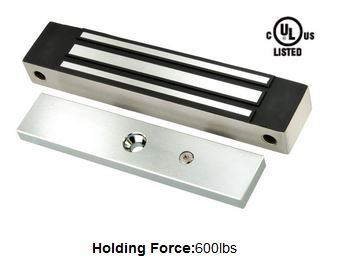

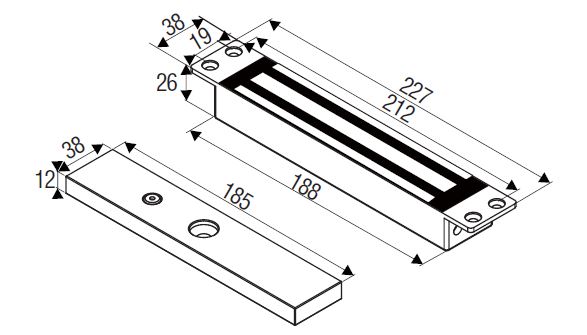

 GEM N10001ST ELECTROMAGNETIC LOCK OUTDOOR APPLICATION        GEM MORTISE 10000ST ELECTROMAGNETIC LOCK





POWER SUPPLY UNIT          ROGER CARD & PIN READER WITH CONTROLLER

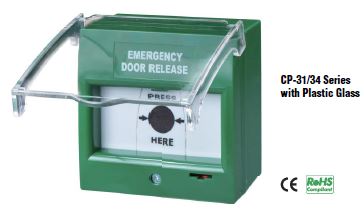

GEM EMERGENCY CALL POINT / BREAK GLASS DEVICE CP-31 AND CP-34





GEM CP-31/34 series call point is a conventional call point that offers double pole, triple pole, or quadruple pole changeover contacts with normally open and closed connections. It is supplied with a plastic glass element and available in various colors for your choice.

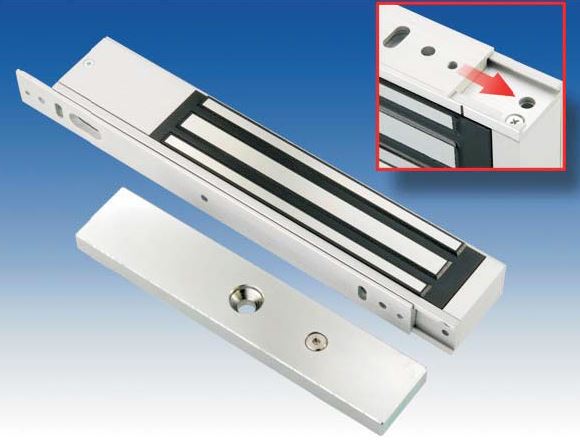

GEM SINGLE ELECTROMAGNETIC LOCK EM-NH300

EM-NH300 is designed for surface mount on out swing doors. Its slide-in mounting plate simplifies the process of installation and firmly secures the magnet. EM-NH300M comes with magnetic bond sensor indicating locked and unlocked status. EM-NH300M-TD is equipped with magnetic bond sensor and relock time delay.

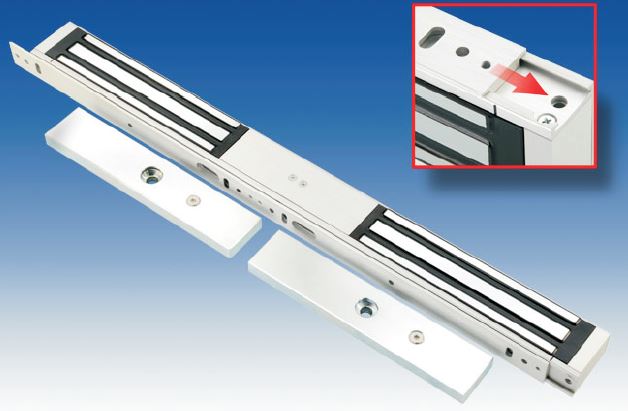

GEM DOUBLE ELECTROMAGNETIC LOCK EM-NH2300

EM-NH2300 is designed for surface mount on double out-swing doors. Its slide-in mounting plate simplifies the process of installation and firmly secures the magnet. EM-NH2300M comes with magnetic bond sensor indicating locked and unlocked status. EM-NH2300M-TD is equipped with magnetic bond sensor and relock time delay.
