SECURITEX GENIUS DC-AC INVERTER

Securitex DC-AC Power Inverter

Genius DC-AC INVERTER

Power inverter convert DC voltage into conventional AC voltage that you can use to operate all kinds of devices like electric lights, kitchen appliances, microwaves, power tools, TVs, radios, computers, to name just a few. You just connect the inverter to a battery, and plug your AC devices into the inverter ... and you've got portable power ... whenever and wherever you need it.

The inverter draws its power from a 12 Volt battery (preferably deep-cycle), or several batteries wired in parallel. The battery needs to be recharge as the power is consume by the inverter.

The battery recharged can be by running the automobile motor or a gas generator, solar panels, wind-mills. Or you can use a battery charger plugged into an AC outlet to recharge the battery.

Genius™

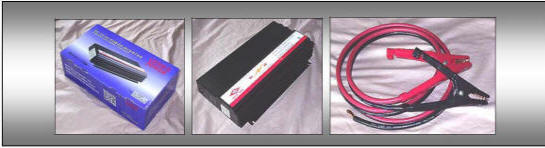

Genius lightweight, high efficiency 100% solid-state inverters feature low battery alarm, low battery shut down, overload and short circuit protection, thermal protection and a cooling fan. The high surge current capability starts difficult loads such as motors and other inductive loads. All models: 120VAC, 60Hz output. Battery cables included. UL listed, CAS approved and CE certified. 90% efficiency and one year warranty. Models for export voltage also available - 230, 50Hz, 200, 60Hz.

Note: Tare loss is less than 1 watt with switch "off".

The Genius G-12-150 Specification:

Model No

G-12-150

G-24-150

G-48-150

Output power 25 min:

1500W

1500W

1500W

Output power 10 min:

1700W

1700W

1700W

Output power cont’

1500W

1500W

1500W

Output power surge:

2500W

2500W

2500W

Output voltage 110V / 220V

117VAC rms / 230VAC rms

117VAC rms  / 230VAC rms

117VAC rms / 230VAC rms

Regulation

+1-5%

+1-5%

+1-5%

Output wave form

Modified Sine Wave

Modified Sine Wave

Modified Sine Wave

DC input voltage

10 -15V

20 -30V

40 - 60V

Low battery alarm

10.7V

21.5V

42V

Low battery shut-down

10V

20V

40V

Frequency +/-1% 110V 220V

60Hz / 50Hz

60Hz / 50Hz

60Hz / 50Hz

Efficiency

85-90%

85-90%

85-90%

No load draw 110V / 220V

600mA

300mA

150mA

Dimensions (L x W x H)

430 x 240 x 77mm

430 x 240 x 77mm

430 x 240 x 77mm

Net Weight

3.8KGS

3.8KGS

3.8KGS

To download catalogue and specification click here

To purchase the above product please contact us at: sales@securitex.com.sg
