Securitex Electronic Systems Engineering

Supply and distribute the most reliable CCTV system ever develop by the UK renowned manufacturer

Metham Aviation Design Limited (MAD)

Metham Aviation Design Limited (MAD) range of CCTV product

MAD is unique in the ancillary CCTV equipment industry with design, assembly and manufacturing all under one roof. Inspection their standard product range and the benefits are immediately obvious. Superlative built quality, unrivalled specification and innovative design promise many years if not decades of maintenance free operation. However, where they really score is in their flexibility and rapid reflexes. ‘Where specials come as standard’ may be a cliché but at MAD, it couldn’t be more appropriate. Because of their set up, custom designs can be realized faster and more effectively than ever.

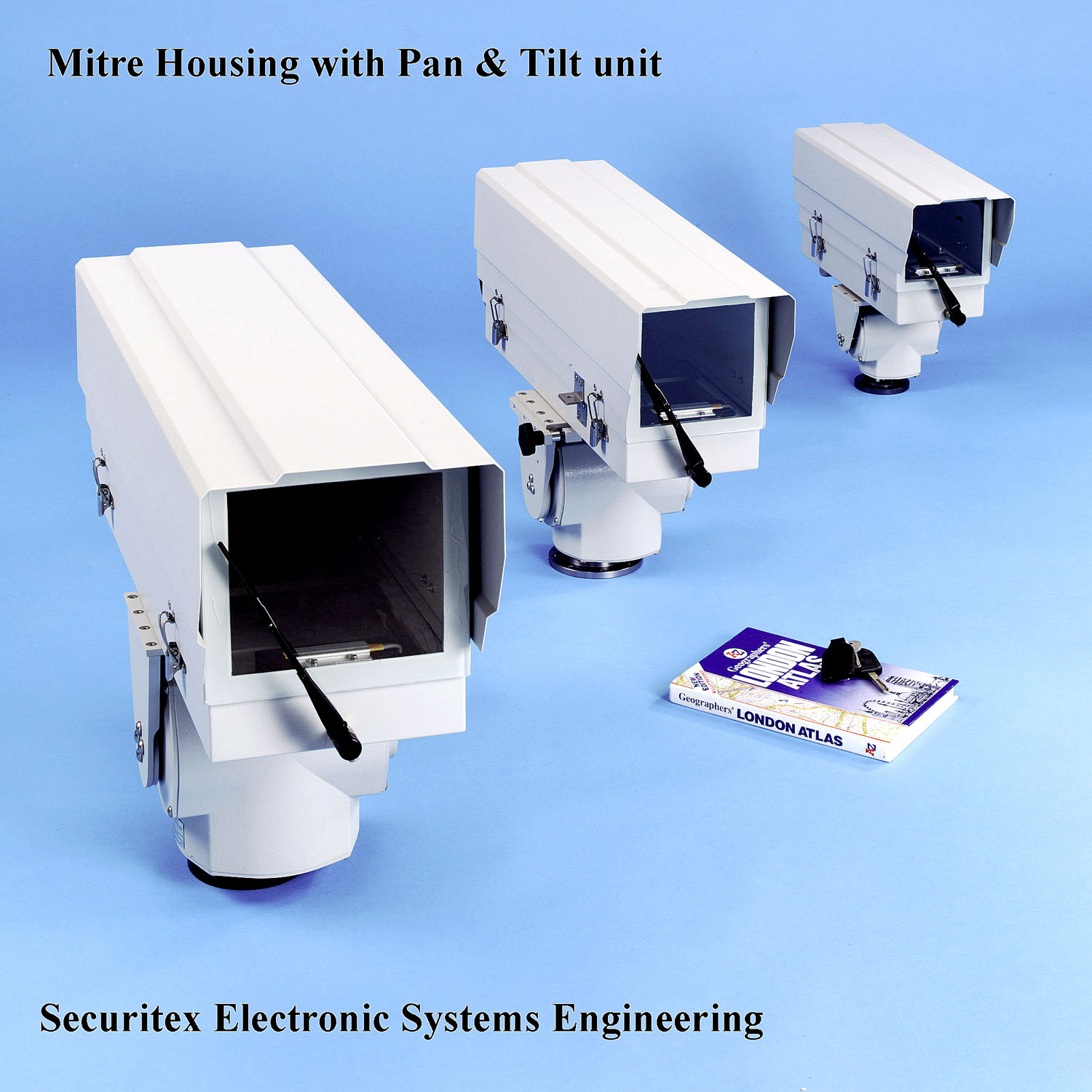

Mitre Housing with Pan/tilt unit

Industrial camera in correctional facilities

Metham Aviation Design Limited Accessories

Industrial camera with infrared

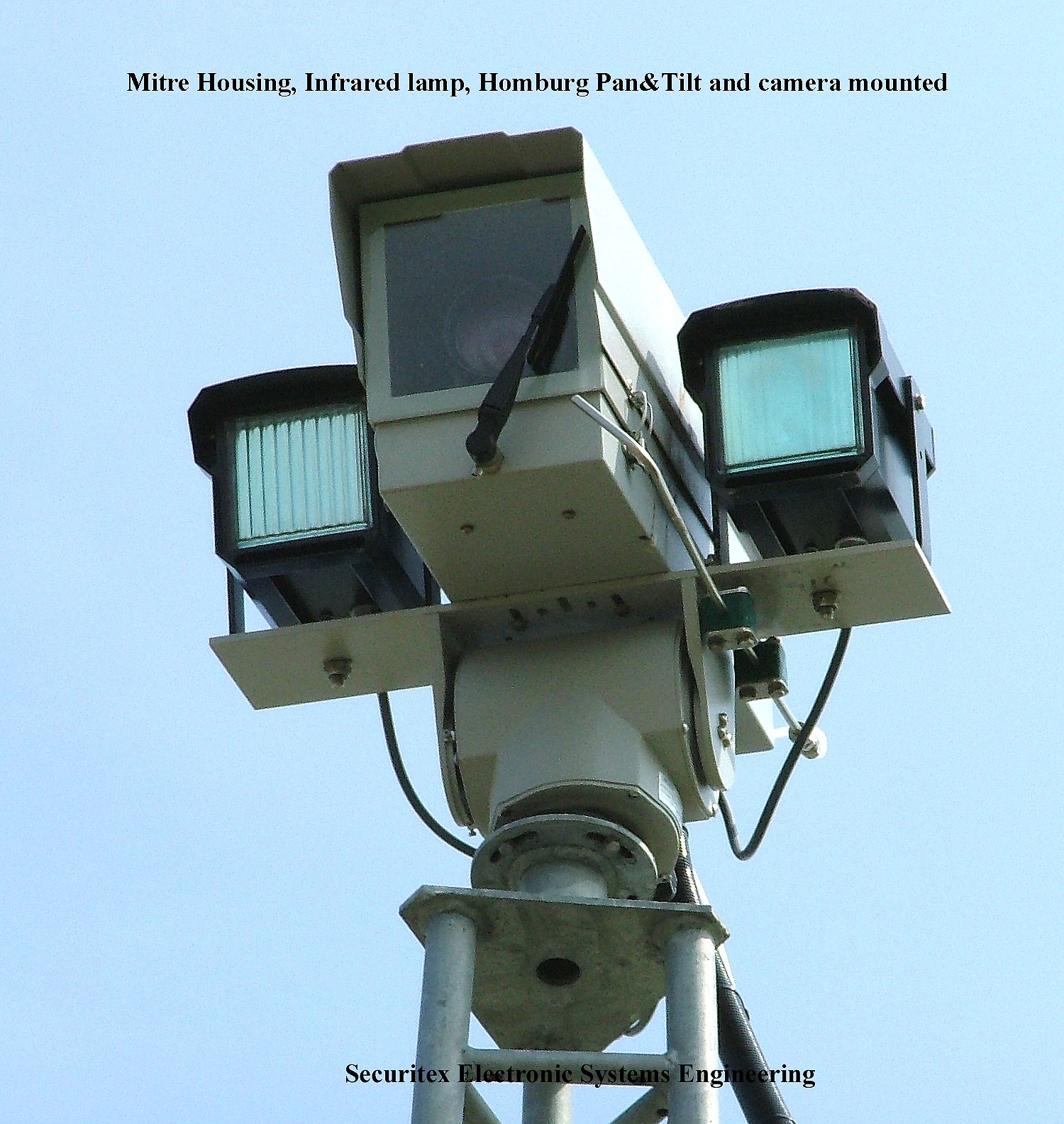

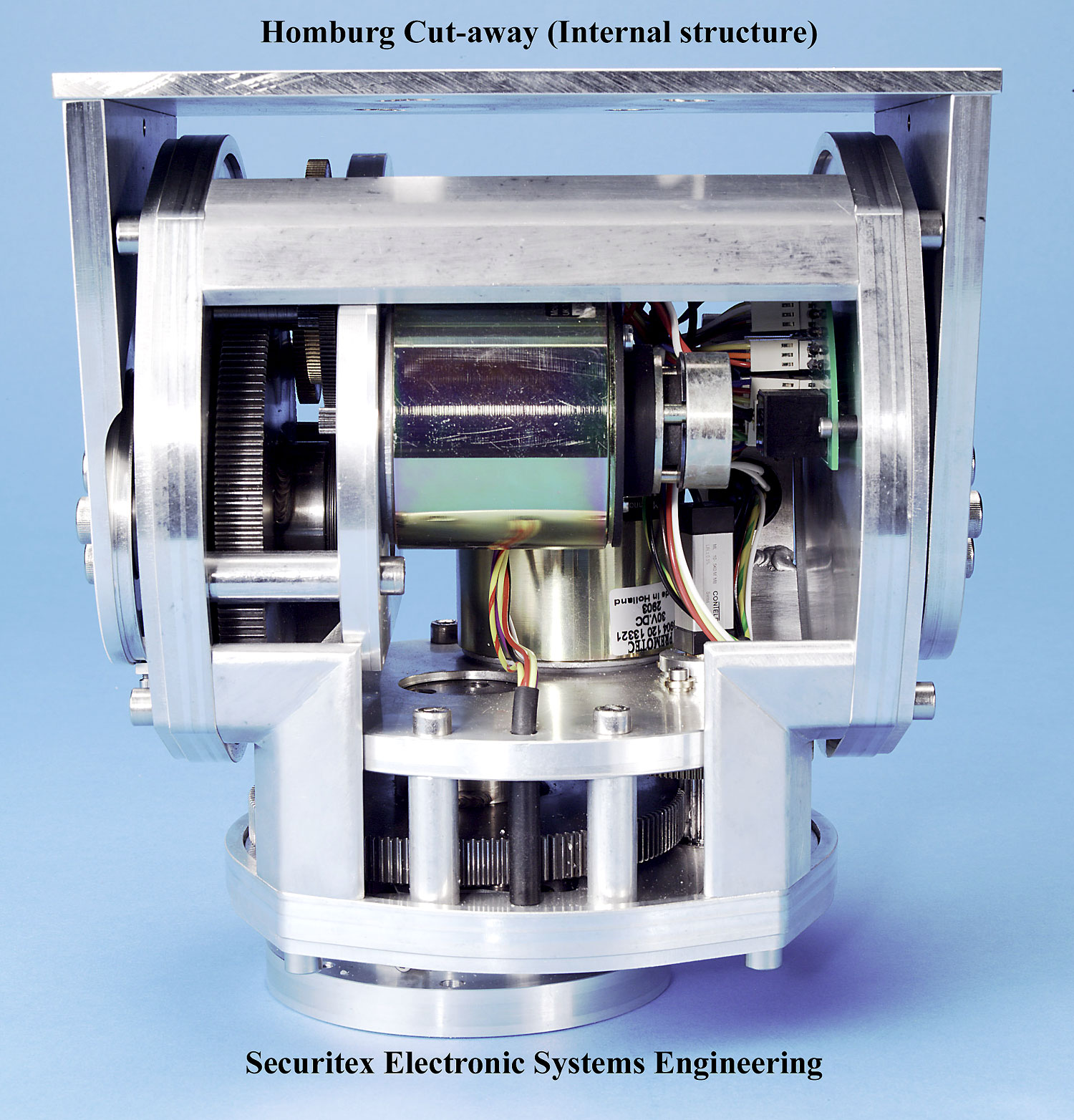

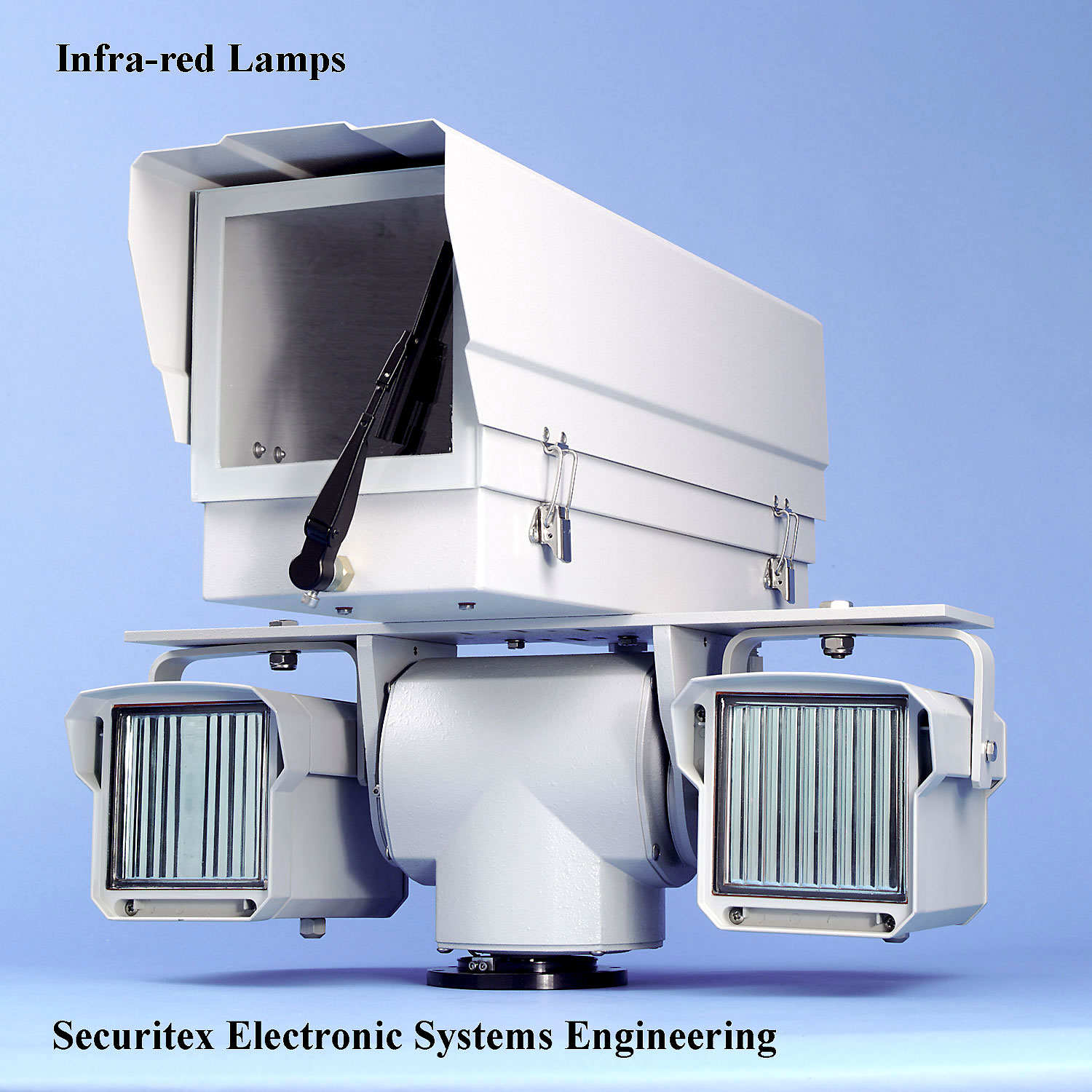

Cut-away-homburg Continuous Ran & Tilt unit Homburg Mitre Housing Infra-red Lamps MAD Limited in Dubai

Building Block Video Ltd (BBV Telemetry Receiver)

RX45X

RX55X

TX400 Data Installation

TX/400DC Data Installation

RX400DCWBX

RX400PWBX

Optimo Integrated Dual Camera System

Large image Click A fully intergraded plug and play system capable of housing a verity of lens and camera combinations. Machined from Aluminium Billet with IP rating of IP68 protection for use on harsh environment. Using Stepper Motor Technology for fast and accurate. Integrated Telemetry RS485 and Pelco P & Pelco D protocol.

Download Catalogue. Data sheet

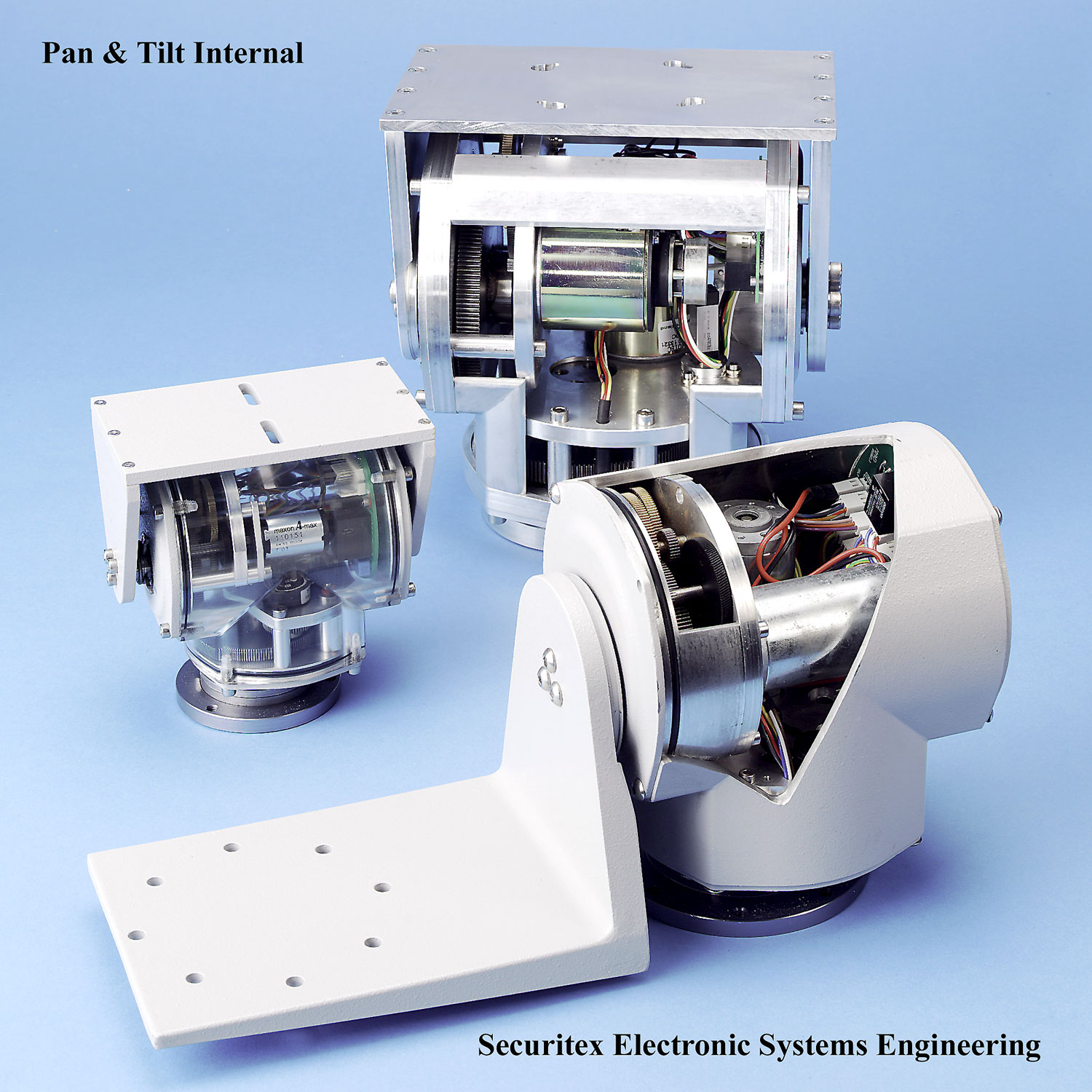

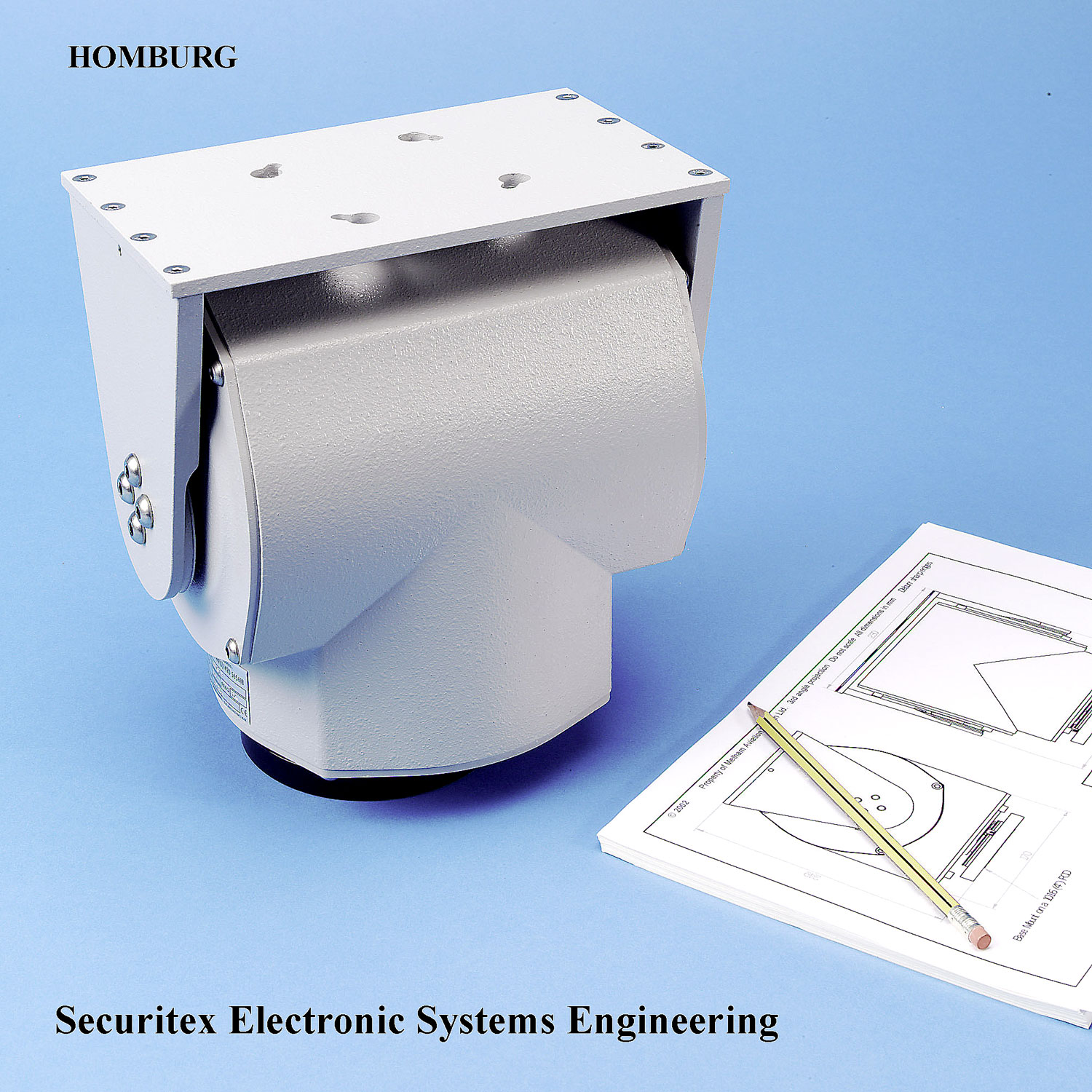

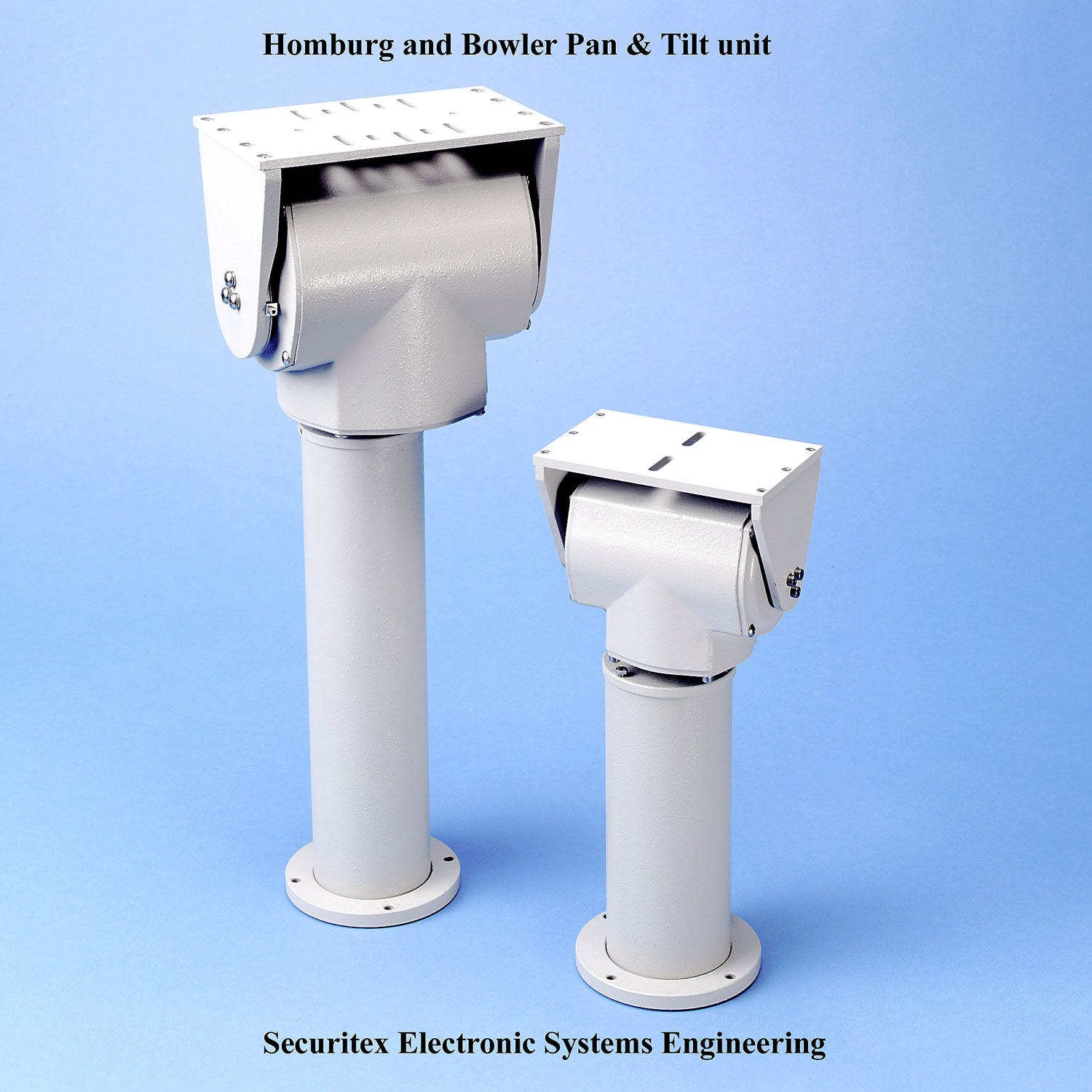

Homburg Industrial Heavy Duty Pan & Tilt unit


Large image Click

Designed to carry up to 50kgms  on a side mount or up to 45kgms over the top, variable speed Homburg heavy duty pan & tilts are available in 230Vac or 24Vac and 24Vdc or 12Vdc. Like the smaller Topper and Bowler ranges, Homburg’s are totally maintenance free. Limit stops are set externally to avoid having to open a unit and potentially compromise its IP 68 rating. The gearbox has been designed to minimize backlash and provides higher gear ratios, which gives lower speeds without costly modifications. Long life potentiometers come as standard with an option for extended long life potentiometers. Full mechanical braking is incorporated to enhance the accuracy and stability of this heavy-duty head.

Download Catalogue. manual. Data sheet.

Topper Industrial Heavy Duty Pan & Tilt unit

Large Image Click

The topper range of pan and tilt heads consists of 230/24 V AC and 24 V DC units in both over the top and side mount configurations. The units are extremely compact, externally robust and aesthetically designed to an IP68 rating providing a rugged and stable mobile camera platform for use in most CCTV applications. A fresh design approach has introduced a simple but effective limit switch facility and larger bearings with a broader spread to allow a much higher load capacity on side arm configurations. The gearbox has been designed to provide higher gear ratios which give lower speeds without costly modifications

Download Catalogue. manual. Data sheet.

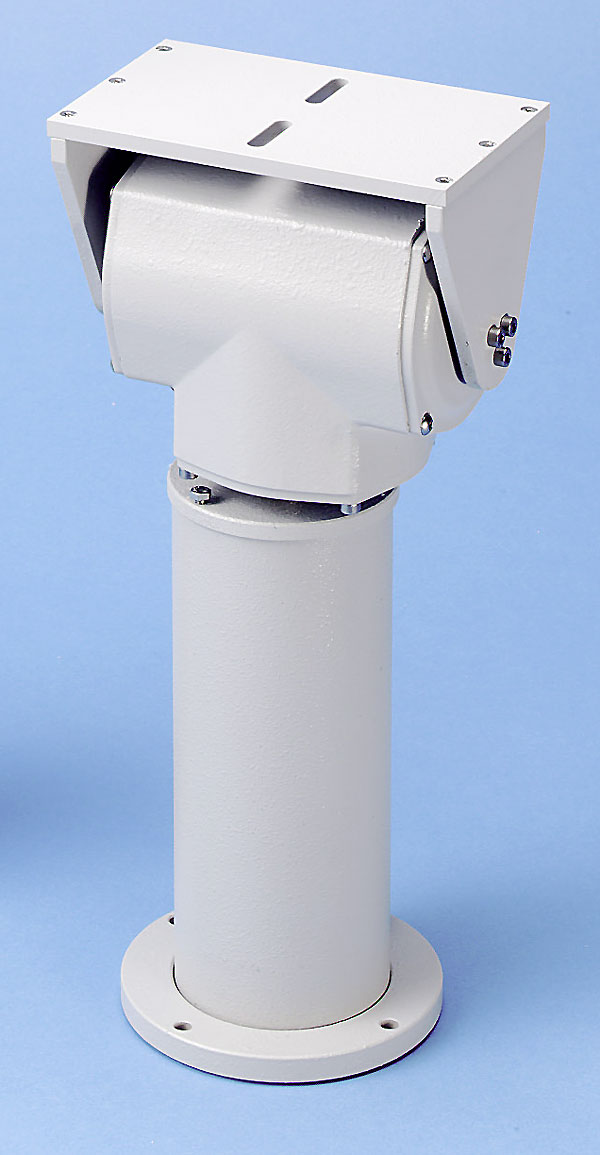

Bowler Industrial Heavy Duty Pan & Tilt unit

Large Image Click

The Bowler range of miniature pan and tilt heads consist of 24vdc and 12 v dc units in both over the top and side mount configurations. The units are extremely compact, (only one third the volume of the Topper.) They are externally robust and aesthetically designed to an IP 68 rating providing a rugged and stable mobile camera platform for use in most CCTV installations where a smaller size is required. A fresh design approach has introduced a simple but effective limit switch facility and larger bearings with a broader spread to allow a much higher load capacity on side arm configurations. The gearbox has been designed to provide higher gear ratios which give lower speeds without costly modifications. Application: Mostly mounted on top of vehicle and military vehicle application.

Download Catalogue. manual. Data sheet.

Boater Pan Unit (Without Tilt) Discontinued





Large Image Click

The boater is a high quality panning device with many unique features never before seen on similar products. These include purpose made gearing and gearbox together with ball races on the main output shaft. Designed for internal and external use, the unit is compact, extremely robust and fully weatherproof to IP. 68. The limit stops are easily set and an internal microprocessor allows electronic contactless auto pan operation with an option for random pan. When first switched on, the unit 'learns' the stop positions and then operates without the use of limit switches. The processor will re-learn the limit stops every 100 pan sweeps. This provides a long operational life with no maintenance.

Download Catalogue. manual. Data sheet.

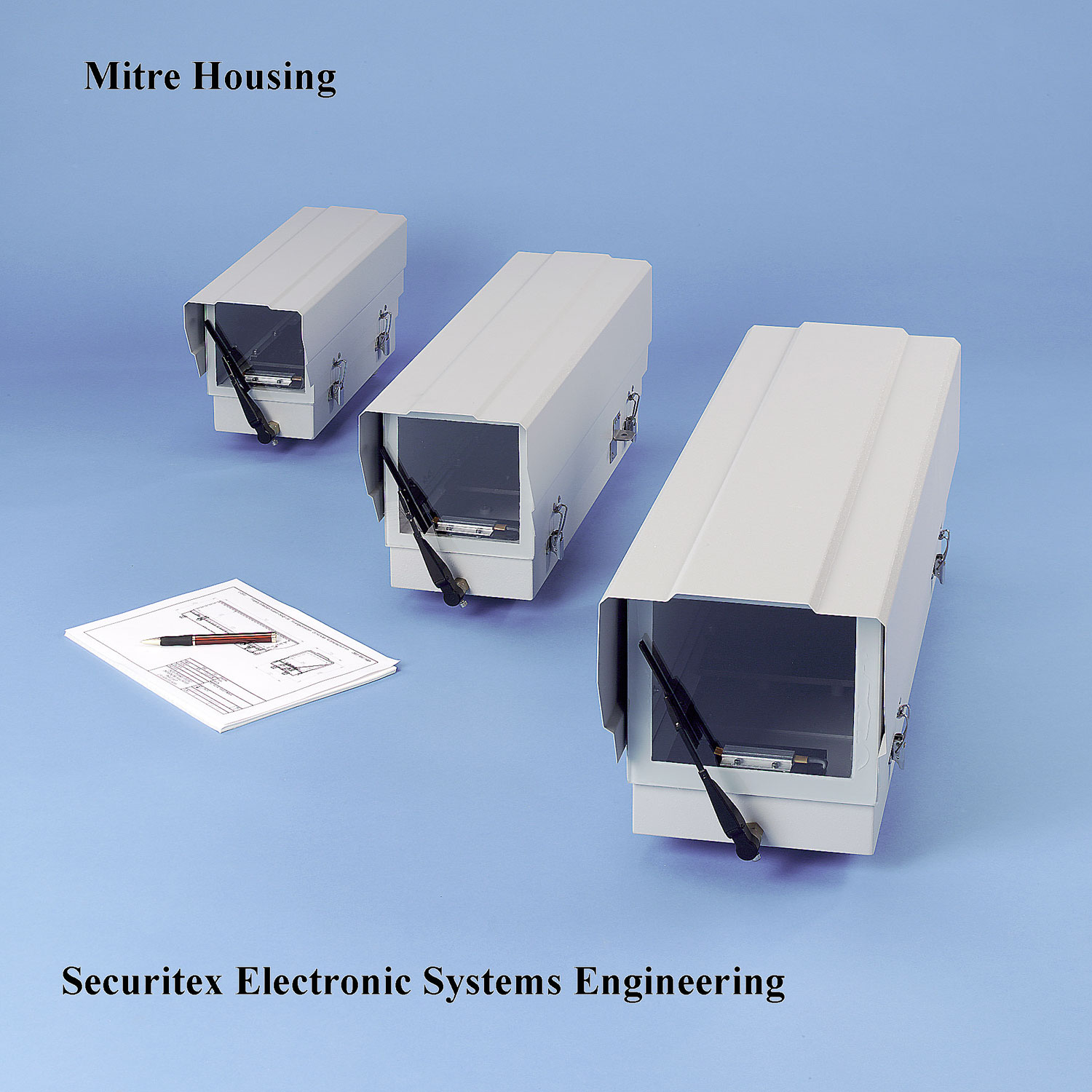

Mitre Industrial Camera Housing with and without wiper, heater and fan

Large Image Click

The Mitre range of environmental camera housings are manufactured to a proven and traditional design. The units are extremely compact but are designed to accommodate the larger camera / lens dimensions required for Town or City centre projects. Stainless steel fittings and fastenings are used throughout to ensure a long operational life. The IP rating is 66 and three entry glands are provided to ensure proper cable management. Standard accessories include an extended paxolin camera plate, steel safety strap and wiring distribution block. A PTC resistor heater with progressive performance is also provided which eliminates the need for a thermostat. A deep base allows the fitting of an optional integral wiper which incorporates a micro switch for self-parking.

Download Catalogue. Manual Large Medium Small . Data sheet.

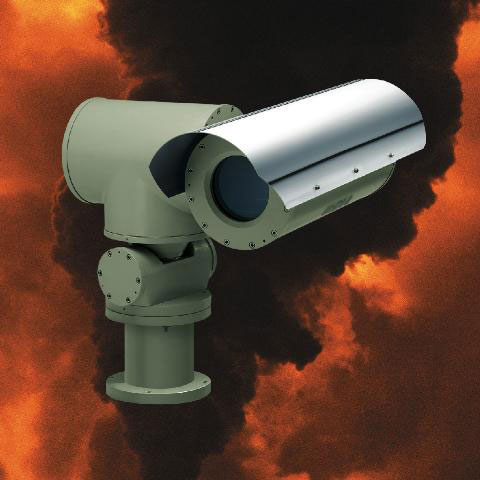

Specialist Equipment (ATEX Explosion and Heat resistant system)

Large Image Click

Certified explosion-proof No exposed wiring Anti-corodal aluminium construction Baked enamel finish (RAL7032) Weatherproofed to IP65 Wide range of options and accessories Certified to ATEX standards, the EEX series has been designed to meet or exceed the demands of hazardous areas where flammable gases may be present. Fully supported by MAD’s experienced after-sales team, the range comprises explosion-proof housings and integrated housing/pan and tilt combinations which exploit proven, patented technology to provide uncompromising reliability and performance in the most volatile conditions imaginable. Together with our other ranges of heads, housings and accessories, there’s now a bomb-proof argument for specifying, site-wide, all your ancillary CCTV equipment from single source...

Download Catalogue. manual. Data sheet.

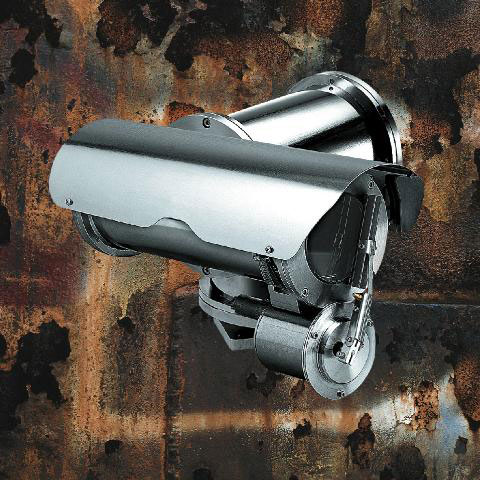

AISI 316 stainless steel (Extremely corrosive and aggressive environment)

Large Image Click

AISI 316 stainless steel construction. For highly aggressive environments. Housings rated to IP68 Pan & tilt head rated to IP67. Built entirely of AISI 304 or AISI 316, the NX series of specialist housings and pan & tilts has been meticulously researched and designed to provide optimum protection and reliability for marine, industrial and chemical applications where highly corrosive environments are an ever present threat to system integrity. Fully supported by MAD’s experienced after-sales team, together with our other ranges of heads, housings and accessories, there’s now a watertight case for specifying, site-wide, all your ancillary equipment from single source...

Download Catalogue. manual. Data sheet.

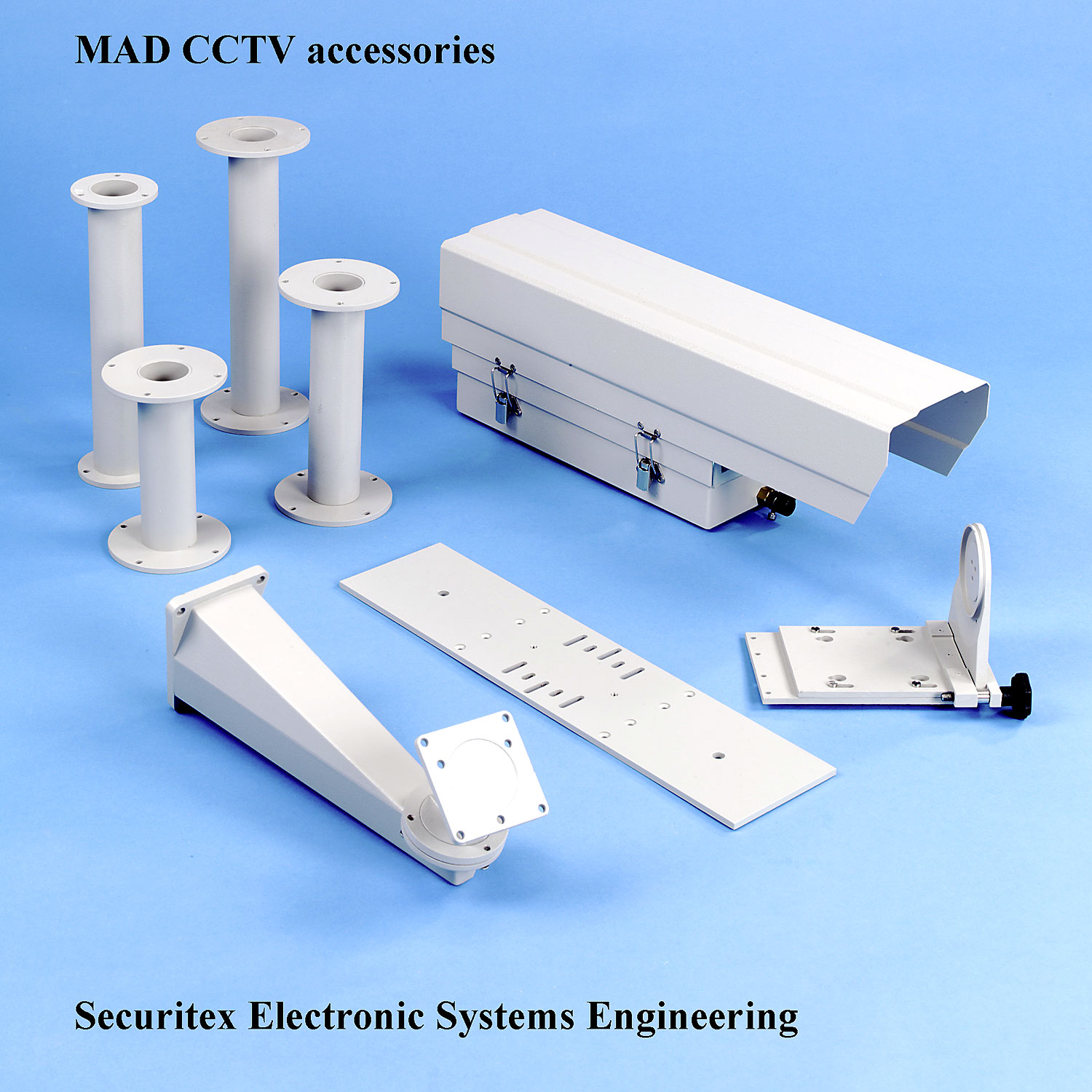

Metham Aviation Design Limited (MAD) Range of CCTV accessories

Large Image Click

Sombrero bracket With fixed pan & tilt adjuster. Stetson bracket Without pan & tilt adjuster. Rigid, yet light and stylish Dual process heat treated gravity die cast aluminium construction. Fez column spacers Available in any length. Strong, lightweight High tensile extruded aluminium construction

Download Catalogue. manual. Data sheet.
