Established in 1948-Aiphone has become the most respected and reliable brand of communication systems in the world. Aiphone Co. Limited in Nagoya, Japan exports to over 60 countries. Aiphone Corporation is the Sales, Marketing and Distribution center for North America, and Aiphone Europe is their sales and Distribution center for the European market.

Systems for every applications-Aiphone products range from simple do-it-yourself door answering units to sophisticated video entry security systems, complex microprocessor-based commercial systems, and luxury condo/apartment security/communication systems. They are unrivaled in design simplicity, technical excellence and reliability. With over 30 standard systems, and additional manufacturing by special order, we can create a system for virtually any intercom application.

Designed to last-Every Aiphone system is the result of painstaking attention to detail: contemporary European style design, the finest quality hardware and circuitry, engineered, built and 100% pre-tested for sustained trouble free service.

Winner of the Deming Prize-Aiphone is the first and only intercom manufacturer to win the Deming Prize, the highest international award for quality control. Named in the honor of Dr. W. Edwards Deming, the award honors firms worldwide which advance and maintain manufacturing quality.

ISO-9001- Aiphone is the first intercom manufacturer worldwide to receive ISO 9001 certification, and the only one selling in North America. An agency representing the International Standards Organization (ISO), headquartered in Geneva, Switzerland, graded Aiphone against guidelines for design and development, production, and product inspection and testing. ISO 9001 standards provide an immediate recognition of product quality almost anywhere in the world.

ISO 1400-ISO's Environmental Standards are a series of voluntary standards and guideline reference documents which include environmental management systems, eco-labeling, environmental auditing, life cycle assessment, environmental performance evaluation, and environmental aspects in products standards.
In early 1998, our management team determined to acquire ISO- 14001 approval as a company-wide project, and working committee was established at the same time. Since then, with our ongoing efforts and practice about environmental management standards, we have succeeded to acquire the approval.

Intercom Model Intercom Image Capacity  Function Brief Description Description Download spec & Manual

AX-Series 120 doors / sub/ adapters to 8 masters.

AX-8MV AX-DVF AX-248C-CEU



AX Series intercom system utilizes Cat5E cable for installation. When the need is for basic and affordable
security communication, the AX Series is ideal. Its easy installation and user-friendly programming will not only save on time, but cost as well. A wide variety of door and sub stations, combined with sleek and sturdy master stations, will provide a system that is versatile, comprehensible, and simple to use.

Download

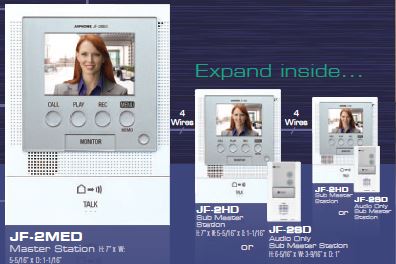

JF-2MED

2 outdoor +3 indoor

JF-2MED JF-2HD   JF-2SD   JF-DV     JF-DA     JF-D

JF-Series Hand free Video Intercom System. Identify visitor safely from inside the premises.

Download

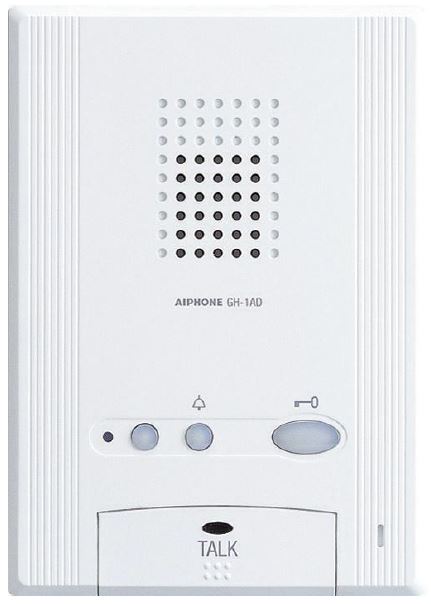

GH-1AD

INDOOR UNIT

GH-1ADAudio Only Tenant Station for the GH Series

Download

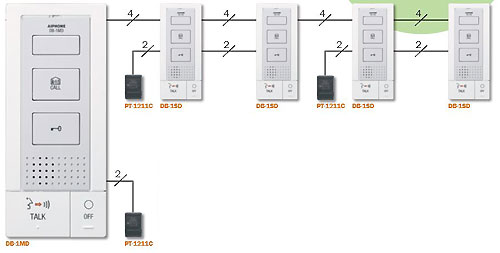

DB-1MD

1DOOR-5ROOM

DB-1MD  DB-1SD DA-1DS 1ER-2  AC-10S AC-10F

DB-SERIES HANDS-FREE ENTRY SYSTEM

Power supply use PT-1211C or PT-1211D

Download

KC-1MRD



KC-1MRD video sentry colour tilt

Basic 1 door 1 monitor system. This system give clear and bright image with colour TFT LCD monitor and DSP video door station c/w tilt camera control, instant ON audio & image of door when called, hands free monitoring audio & image from door  and White LED illumination.



Download

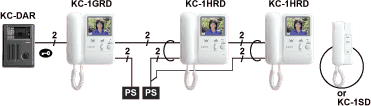

KC-1GRD



KC-1GRD video sentry colour tilt

Max.3 monitor system with internal communication (All Call). Max. 3 monitor station. Instant ON audio & video from door when called. Internal calling with All Call. 100m distant between monitors. Audio only sub station is available.

Download

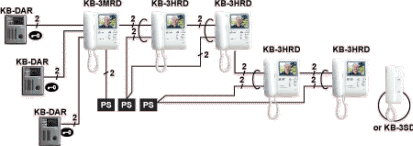

KB-3MRD





KB-3MRD video sentry colour tilt

Expanded system with 3 doors and 5 monitors, all call added selective calling with hands free reply. 3 doors & 5 monitors w/tilt camera control. Instant ON audio & video from door. Selective calling or All call. Audio sub station in place of monitor (max 2 pcs). Optional audio door at 3rd entry. Chime and audio receive volume controls.

Download

MY-1CD



MY-1CD Video Sentry

2 station Pan Tile Entry system. Motorized Pan/Tilt camera- Views 180cm horizontal, 90cm vertical. Turn on camera from inside station. 4-tone chime from door station. Pan/Tilt, backlight control, monitor activation and door release controls. Chime extension speaker or external doorbell can be added.

Download

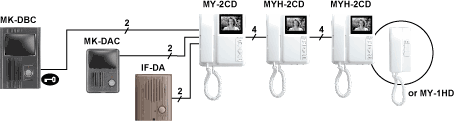

MY-2CD





MY-2CD Video Sentry Pan/Tile Plus

Expandable Pan/Tilt Entry system. Two Pan/tilt door stations and on audio-only door station. Up to 3 inside stations with audio/video or audio only. Selective door station monitoring. Internal voice calling and communication. Door release (For one door). Video output connection. Pan/tilt, Room-call, backlight, Monitor and Door release controls

Download

MYW-P3CB&IE-8MD

MYW-P3CB&IE-8MD

This configuration allow 2 door station with camera and 1 without interface to 6 indoor station monitor c/w door release and internal voice calling.

Download

MK-1MD/A





MK-1MD/A Door Sentry

Wide-angle door entry system. Set includes camera, monitor and power supply. Wide-angle fixed camera-Views 100cm horizontal and 70cm Vertical.(90X70degree). Audio and video monitoring from inside. Activate an electrical door strike. Camera angle can be adjusted vertically. Second MK monitor or MK-1SD/B handset can be added. 200m distant to door station

Download

C-123LA



C-123L/A Chime Com

Door call-in rings 2-tone chime at indoor station. Hands free communication at door station. Automatically turns off in 15 seconds. Door release button. Communication volume control. Powered by power supply or batteries.

Download

TCS-MH



TCS-MH Chime-Phone.

Handset-type door answering system. 2-tone chime with adjustable volume. Battery operated with battery status indicator LED



Download

IE-1AD/U



IE-1AD(U) Chime Tone Intercom

This system is a chime tone intercom system for 2 locations. It come with door release button. operated on AC or CD power source



Download

IE-1GD/U



IE-1GD(U) Chime Tone Intercom

This system is a chime tone intercom system for 3 indoor and 1 outdoor stations. All call type room calling. Chime tone cutout at sub station. It come with door release button and operated on AC or CD power source

Download

IE-2A2D(U)



IE-2A2D(U) Chime Tone Intercom

This system is a chime tone intercom system for 3 indoor station with 2 indoor station c/w door release and 2 outdoor stations. All call type room calling. Chime tone cutout at sub station. It come with door release button and operated on AC or CD power source

Download

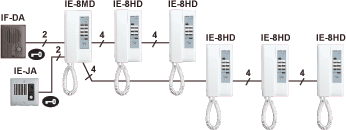

IE-8MD



IE-8MD Chime Tone Intercom

This system is expandable to 6-station system. Selective or All call between inside stations. Door select and monitor button (on IE-8MD). AC/DC power source. selective door release control and Chime tone cutout on inside stations selectable.

Download
